Vigo Walk-In Shower, complete set

Product number: BO5215435
Freight forwarding

Description

Vigo walk-in shower systems, modern and barrier-free. Glass shower partitions up to 2.2 m high with a maximum ceiling height of 2.8 m can be realised. Simple installation and cleaning make it easy to decide in favour of Vigo, which is available in two shapes and surface finishes.

About the product series Vigo:
The Bohle Vigo walk-in shower offers a clear design for the highest demands. The glass panel is simply inserted into the support bars, which are individually adjustable and invisibly screwed between the floor and ceiling. No reinforcement bar is required. Barrier-free access and manoeuvrability on both sides. Ideal for sloping ceilings and sophisticated, open designs.

Show all Show less

Your Advantages

  • Barrier-free
  • Profile can be cut to desired length
  • Protected glass edges
  • Simple glass installation thanks to plug-in connections

Technical details

Colour
Stainless steel colour
Degree of gloss
Matt
Glass height max.
2,200 mm
Glass thickness
8 - 10 mm
Height
30 mm
Length
2,800 mm
Material
Stainless steel
Package contents
1 Set
Product range
Vigo
Shape
Square
Surface
Brushed
Width
30 mm
Show all Show less

Scope of supply

1 Piece
Stainless steel profile incl. mounting accessories
1 Piece
Rubber profile for 8 and 10 mm

Downloads

pdf
Instructions
Vigo Vigo Walk-In Shower - Instruction Manual

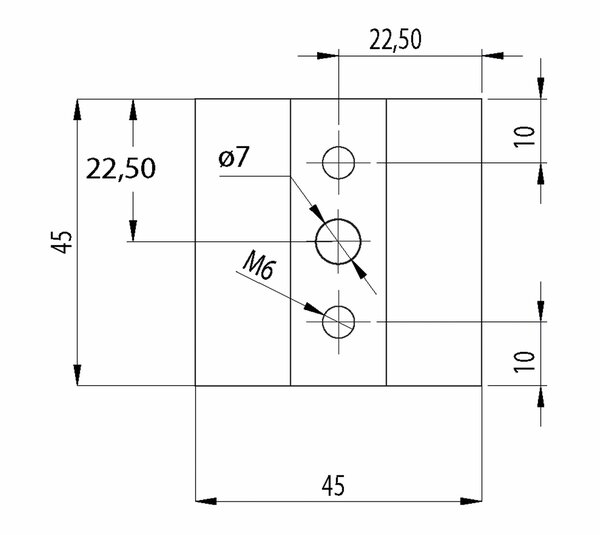

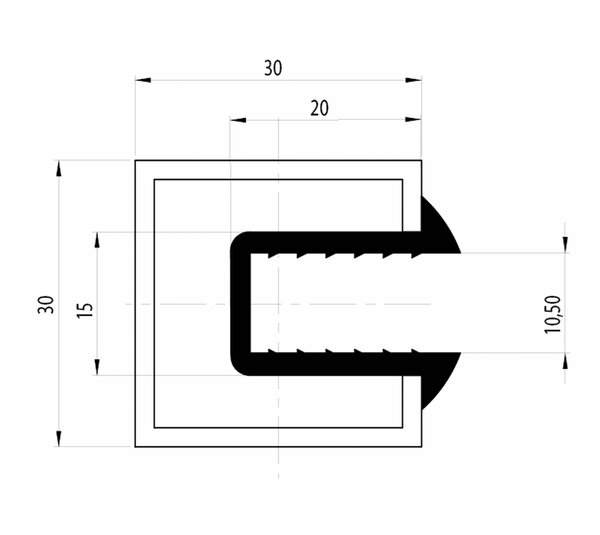

Drawings

jpg
jpg
