FrameTec Select 2.0

The partition wall system for unlimited transparency

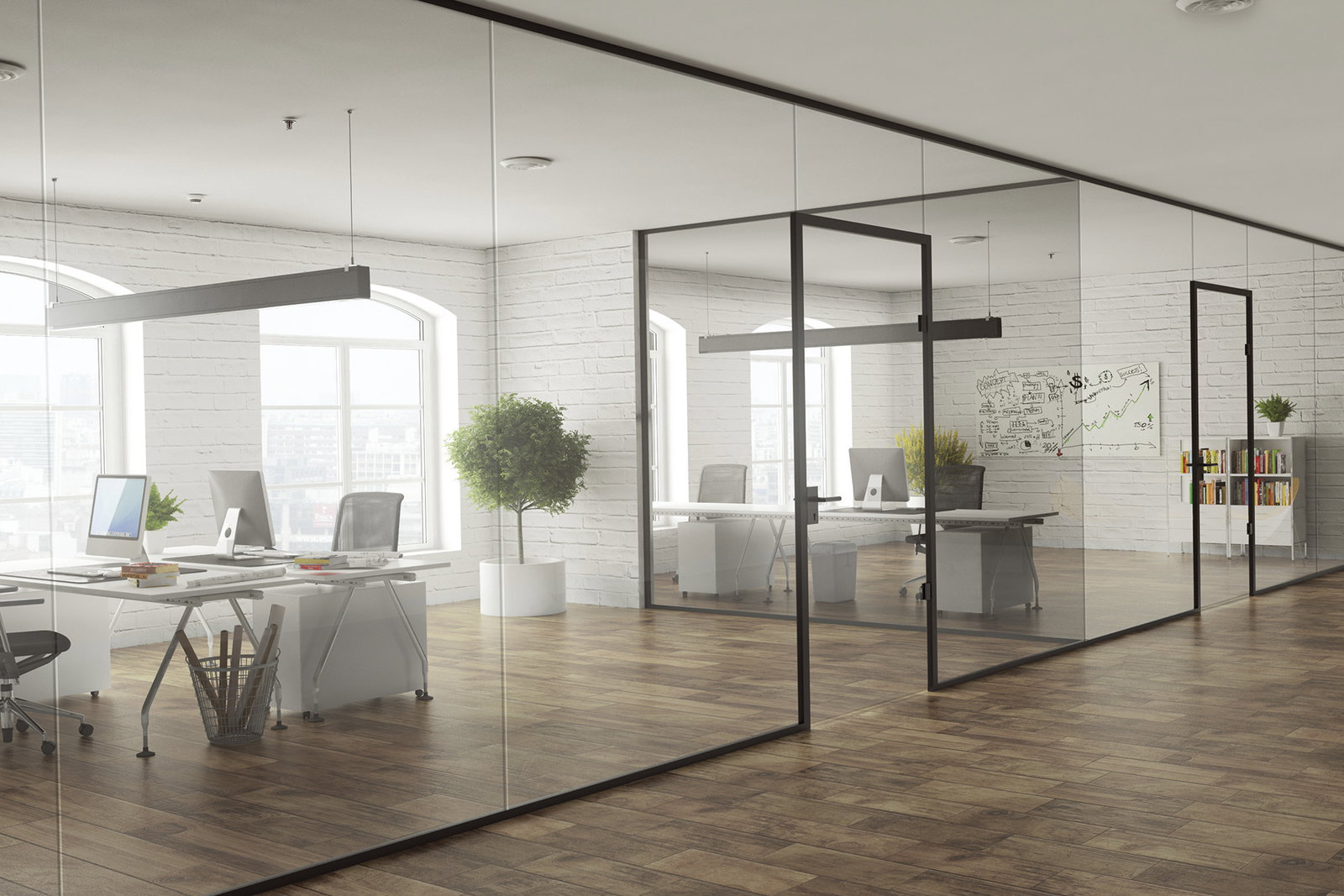

The FrameTec Select 2.0 glass partition wall system is a real all-rounder: the elegant, slim frame construction creates open, light-flooded rooms and at the same time maintains discretion in living and office spaces thanks to sound insulation of up to 37 dB. The system is characterised by its versatile installation options and convinces with high-quality processed profiles that can be installed quickly and easily. Create a new sense of space with glass walls.

Product highlights

Stable frame system with secure hold
Can be flexibly combined with skylight, side panel or as partition wall
Narrow floor and wall profiles for uniform appearance
Quick installation thanks to clever profile system
Sound insulation up to 37 dB

Directly to the shop

Everything at a glance for download

frametec_select_brochure.pdf

Assembly-friendly profiles

The diverse installation variations are impressive: Single or double-leaf doors, combined with fanlights and side panels are just as possible as partitions with T-joints or across corners - FrameTec Select 2.0 offers you almost limitless freedom in terms of design concept.

Clever glazing thanks to two-part profiles
With multi-function channel for speedy hinge fastening
Pre-cut mitres for optimum joints
Can be used DIN right and left

Profiles with smart details

The frame profiles can be used for both glass-wall and glass-glass solutions. Simply slide the hinge holders into the multi-function channel and then fix the hinges with two screws. The sturdy corner connectors ensure that the mitres are held together securely. The door leaf can be used DIN right and DIN left, as no milling for door hinges and striking plate is required in the frame profile. The frame is suitable for 8 - 10.76 mm ESG/VSG doors with 24 mm rebate depth. With the combination of the two-part and one-part glazing profile, installation is particularly quick. The glass is held in the upper one-piece glazing profile during installation and is thus protected against dangerous tilting. The two-part glazing profile, which is mounted on the floor and wall, consists of a base profile and a plug-in strip, which then fixes the glazing with a wedge seal.

Profile im Überblick

+ 13 Variations

FrameTec Select 2.0 glazing profile

Colour scheme: Stainless steel colour C31 anodised E1 ground
Length: 3,000 mm
Model: Two-piece

+ 13 Variations

FrameTec Select 2.0 glazing profile

Colour scheme: Aluminium colour C0 anodised E6 stained
Length: 3,000 mm
Model: One-piece

+ 13 Variations

FrameTec Select 2.0 glazing profile

Colour scheme: Black RAL 9005 powder coated satin finish
Length: 3,000 mm
Model: One-piece

+ 13 Variations

FrameTec Select 2.0 glazing profile

Colour scheme: Aluminium colour C0 anodised E6 stained
Length: 5,000 mm
Model: Two-piece

+ 13 Variations

FrameTec Select 2.0 glazing profile

Colour scheme: Stainless steel colour C31 anodised E1 ground
Length: 5,000 mm
Model: Two-piece

+ 13 Variations

FrameTec Select 2.0 glazing profile

Colour scheme: Black RAL 9005 powder coated satin finish
Length: 5,000 mm
Model: Two-piece

+ 13 Variations

FrameTec Select 2.0 glazing profile

Colour scheme: Aluminium colour C0 anodised E6 stained
Length: 5,000 mm
Model: One-piece

+ 13 Variations

FrameTec Select 2.0 glazing profile

Colour scheme: Stainless steel colour C31 anodised E1 ground
Length: 5,000 mm
Model: One-piece

+ 13 Variations

FrameTec Select 2.0 glazing profile

Colour scheme: Black RAL 9005 powder coated satin finish
Length: 5,000 mm
Model: One-piece

+ 2 Variations

FrameTec Select 2.0 frame profile with cover profile

Colour scheme: Aluminium colour C0 anodised E6 stained
Length: 5,600 mm

+ 2 Variations

FrameTec Select 2.0 frame profile with cover profile

Colour scheme: Stainless steel colour C31 anodised E1 ground
Length: 5,600 mm

+ 2 Variations

FrameTec Select 2.0 frame profile with cover profile

Colour scheme: Black RAL 9005 powder coated satin finish
Length: 5,600 mm

A real eye-catcher

Choose the right colour for every room style with the stainless steel effect, aluminium-coloured and matt black finishes and see for yourself the filigree, high-quality profiles. Wall and floor profiles are all equally narrow and thus ensure a continuous line. This makes the design look particularly harmonious and light. For the modern industrial look, which thrives above all on black metallic elements, we recommend decorative bars. They are glued between the existing profiles, enable the visual subdivision of large glass surfaces and set strong accents.

First-class sound insulation for more comfort

Protection against noise is becoming increasingly important when planning rooms. The FrameTec Select 2.0 glass partition wall system enables you to separate individual rooms in terms of sound insulation while preserving the open and bright feeling of the room. The official sound insulation test of the ift Rosenheim testing institute certifies the system a sound insulation of up to 37 dB. The partition wall system is therefore equally suitable for private, hospital and office rooms.
