Verifix® angle suction cup

Product number: BO630.2

Description

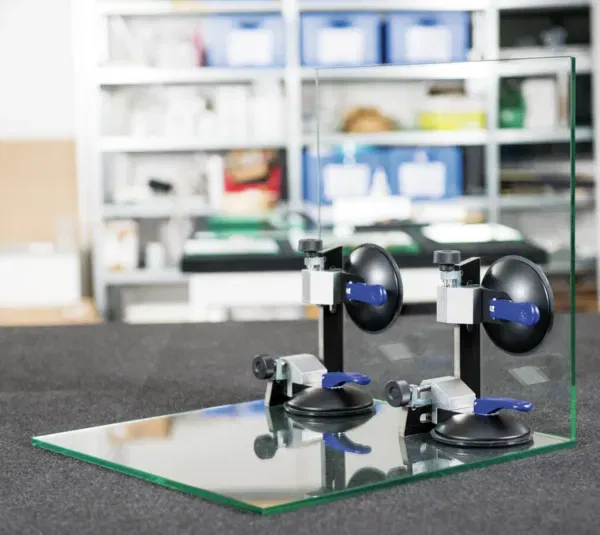

Two glass panes are positioned at a 90° angle to each other. The vertical pane is then adjusted. The height and depth of the angle suction cup can be adjusted by 12 mm. The gap dimension for the optimal layer thickness of the adhesives can thus be adjusted.

At least two angle suction cups are always used to position a pane correctly. Depending on the width of the pane, suction cups are added so that one suction cup is used every 50 cm. Larger panes are optimally aligned this way. For simple angle bonding, the bonding gap can be adjusted for low and medium viscosity adhesives. For additional stabilisation of the glass angle, clamp holders are suitable, which are placed on the glass edge from above.

Fixing aids are not suitable for carrying glass.

Application note:
Always store the vacuum holder so that the suction pads are not damaged.

Your Advantages

  • Suitable for glass-glass edge bonding
  • Suitable for glasses with a height of up to 60 cm
  • Adjustable gap width
  • Adjustment range +/ - 12 mm

Technical details

Adjustment range
12 mm
Angle
90°
Colour
Black
Diameter suction pad
120 mm
GS certified
No
Leg length
200 mm
Leg width
127 mm
Material
Aluminium
Material suction pad
Rubber (SBR)
Package contents
1 Piece
Type of vacuum generation
Lever
Vacuum safety indicator
No
Show all Show less

Discover more

Skip product gallery

Similar products

Verifix® Angle Suction holder Pro
Verifix® Angle Suction holder Pro
Art. no.: BO639.1
  • Edge geometry: 90°
Skip product gallery

Spare parts

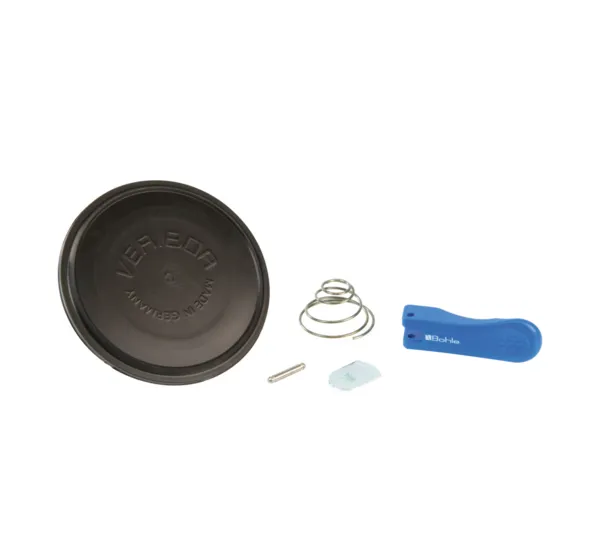

Suction pad Ø 120 mm
