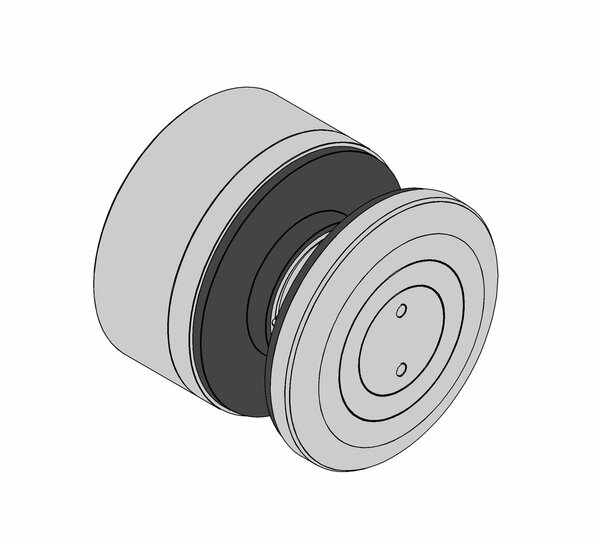

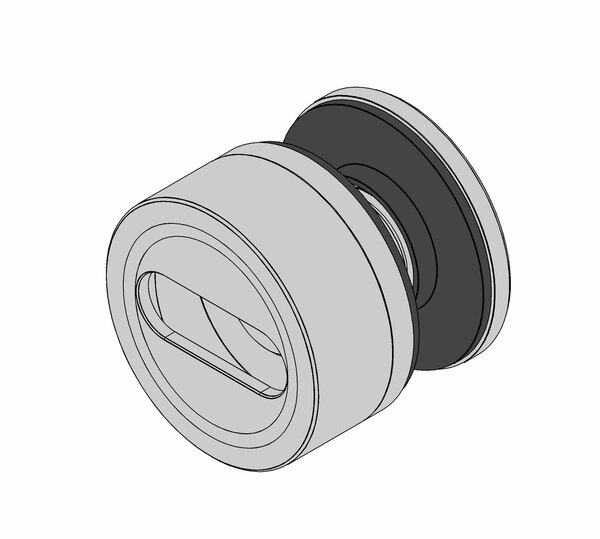

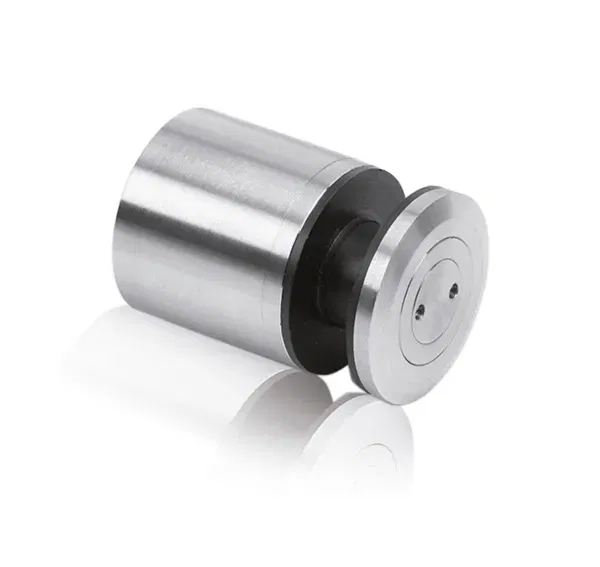

Point fixing Ø 50 mm, adjustable

Product number: BO5214034

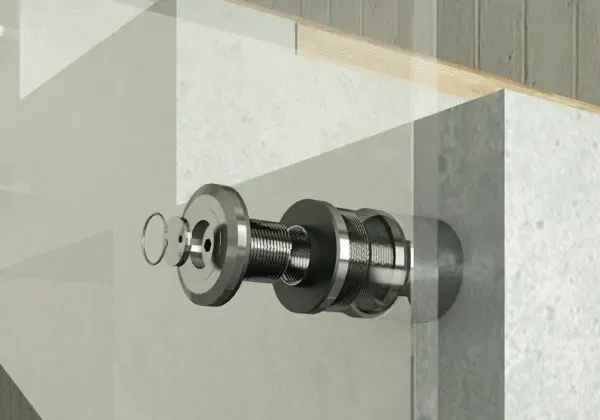

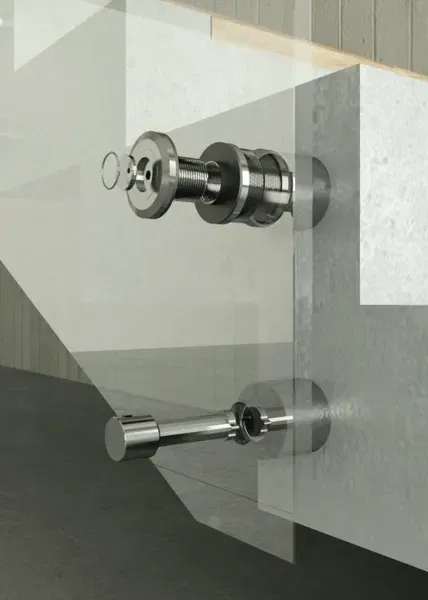

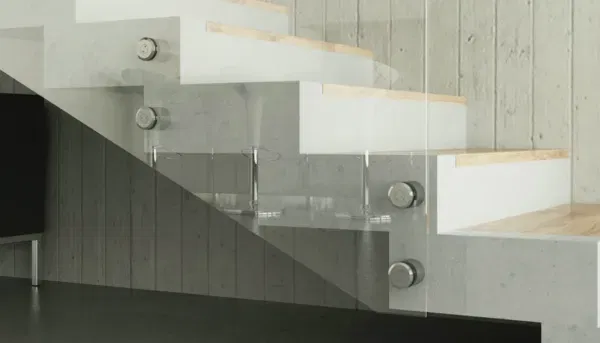

Glass point fixings are used both indoors and outdoors and can be used in a variety of ways. Particularly as a fixing for railings or in the form of wall cladding, they optimally set the scene for the glass without dominating the design.

A stable design according to DIN EN 1991-1-1 and the precise workmanship of Bohle point fixings underline their high-quality appearance. Depending on the diameter of the point fixing and the desired wall distance, you will always find the individually suitable solution. Point fixings support both toughened safety glass and laminated safety glass between 10 and 21.52 mm thick. The precise vertical and horizontal adjustability ensures perfect alignment of the glass pane. It makes installation as easy as can be, saves time and is particularly recommended for uneven walls. Reliable safety is guaranteed by the general building authority test certificate (AbP).

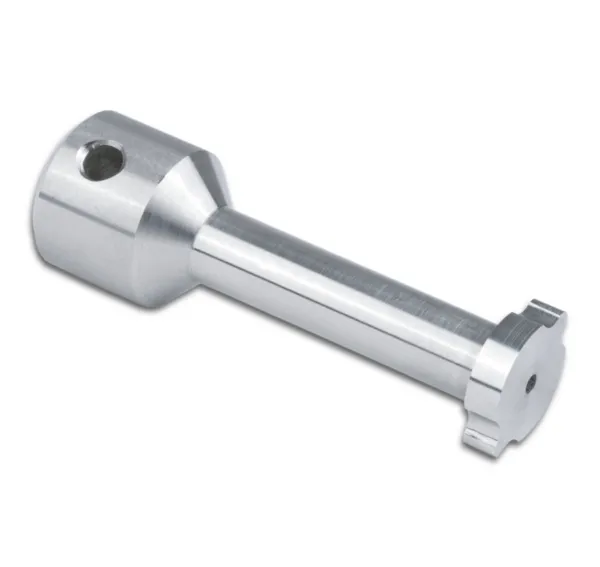

Please order assembly tool BO 5214041 separately.

Application note:
Use at least 4 pieces depending on the glass size.

Show all Show less

Your Advantages

  • Easy mounting and fixing of the glass
  • Robust design according to DIN EN 1991-1-1

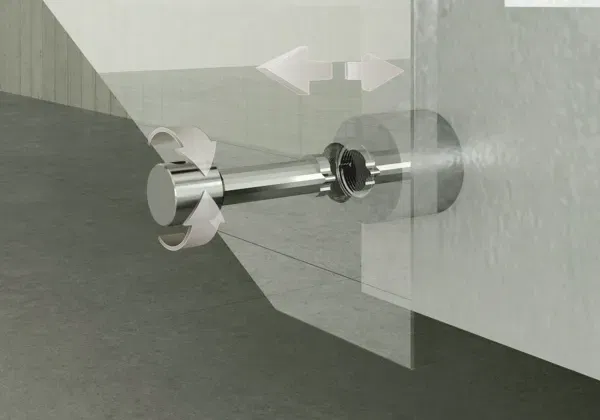

  • Distance adjustable after mounting
  • Adjustability from the front

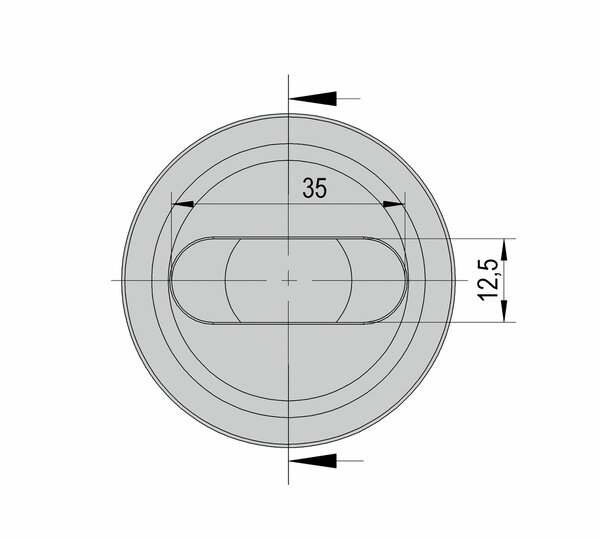

  • Adjustable through slotted hole in the construction connection
  • For ESG and VSG
Show all Show less

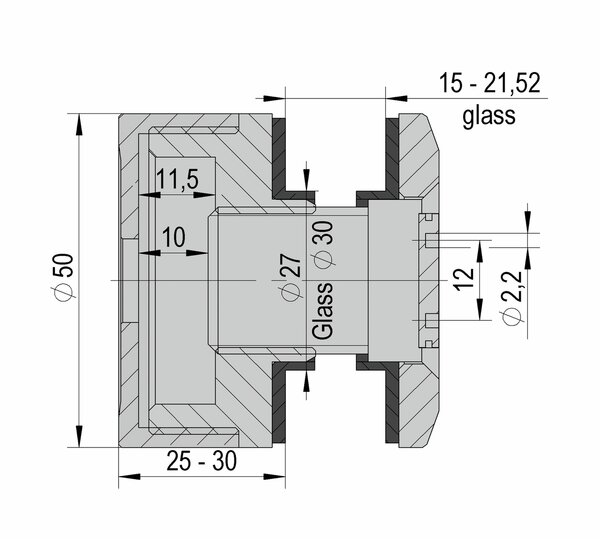

Technical details

Bore diameter
30 mm
50 mm
Glass thickness
15 - 21.52 mm
Stainless steel V2A (AISI 304)
Package contents
1 Piece
Wall distance
25 mm



For more drawings please log in:
