Granada shower door hinge, glass-glass 180°

Product number: BO5214052

Description

The Granada glass-glass 180° swing shower door hinge has a load-bearing capacity of 35 kg. Doors up to 0.9 x 2 m can be achieved. The hinge for 180° glass-glass installation has been developed for modern, large glass showers.

Granada has a self-closing function up to an opening angle of approx. +/-15°. Outside this range, the hinge stops in any position. In addition, the Granada series offers an adjustable zero position, which makes it easier for the installer to align the door.

About the product series Granada:
Elegant and highly functional - the Granada shower door hinge sets discreet accents. Designed horizontally, the rounded corners are particularly flattering to the design

Show all Show less

Your Advantages

  • Stepless zero position adjustment

Technical details

Adjustable zero position
Yes
Concealed wall fixings
No
Degree of gloss
Shiny
Door height
2,000 mm
Door type
Swing door
Door width
900 mm
Flush
No

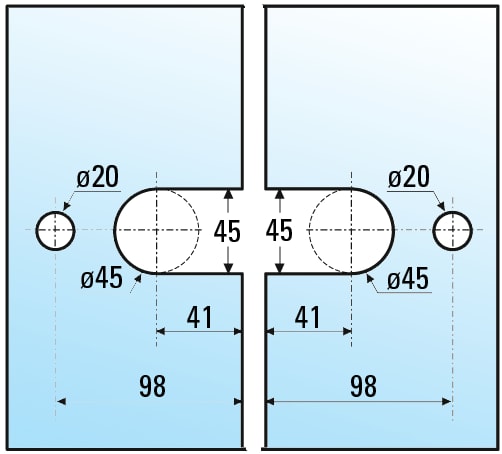

Glass processing required
Yes
Glass thickness ESG
8 - 10 mm
Hold position
Without
Material
Brass
Max. door weight per pair
35 kg
Mounting type
Glass-Glass
Opening angle
90°
Opening direction
DIN right and DIN left
Package contents
1 Piece
Product range
Granada
Retrieval zone
Yes
Rise/fall function
No
Screws on the belt concealed
No
Self-closing from
15°
Self-closing function
No
Surface
Chrome-plated
Show all Show less

Downloads

pdf
Instructions
Maintenance and Care Instructions

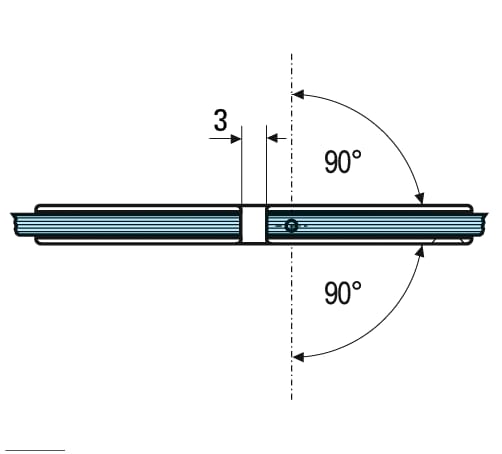

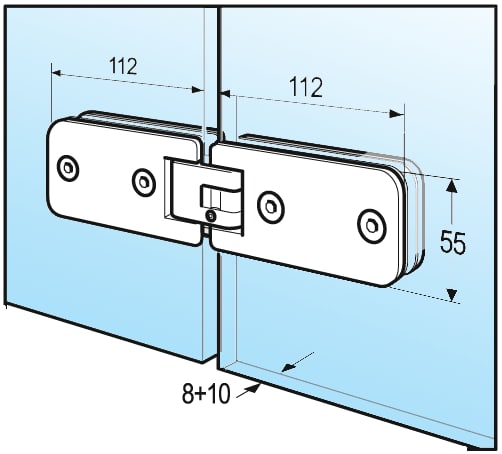

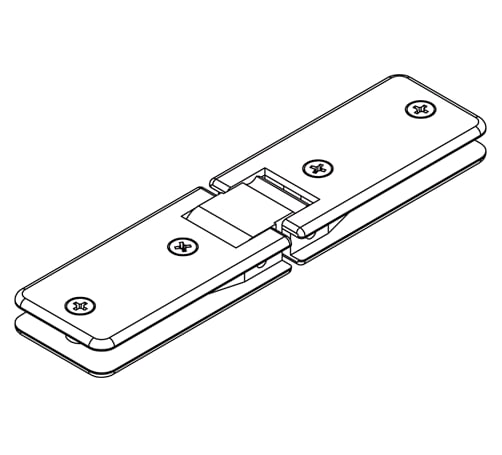

Drawings

jpg
jpg
jpg
jpg
