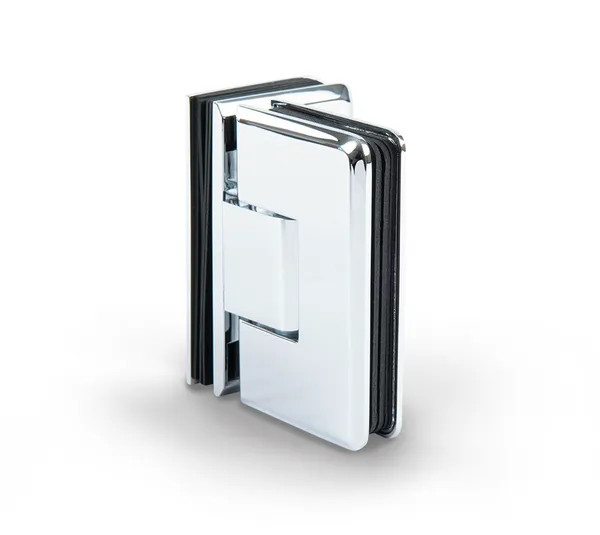

Barcelona Select shower door hinge, glass-glass 90°

Barcelona Select shower door hinge, glass-glass 90°

Product number: BO5219126

Description

The Barcelona Select glass-glass 90° swing shower door hinge has a load-bearing capacity of 40 kg. Doors up to max. 1 x 2 m can be achieved. The hinge for 90° glass-glass installation is designed for attaching a door to a fixed glass side panel.

Barcelona Select has a self-closing function up to an opening angle of approx. +/-15°. Outside this range, the hinge remains in any position. Compared to Barcelona, the Barcelona Select series offers an adjustable zero position, which makes it much easier for the installer to align the door.

Show all Show less

Your Advantages

  • Self-closing from approx. 15°
  • Stepless zero position adjustment

Technical details

Adjustable zero position
Yes
Concealed wall fixings
No
Degree of gloss
Shiny
Door height
2,000 mm
Door type
Swing door
Door width
1,000 mm
Flush
No
Glass processing required
Yes

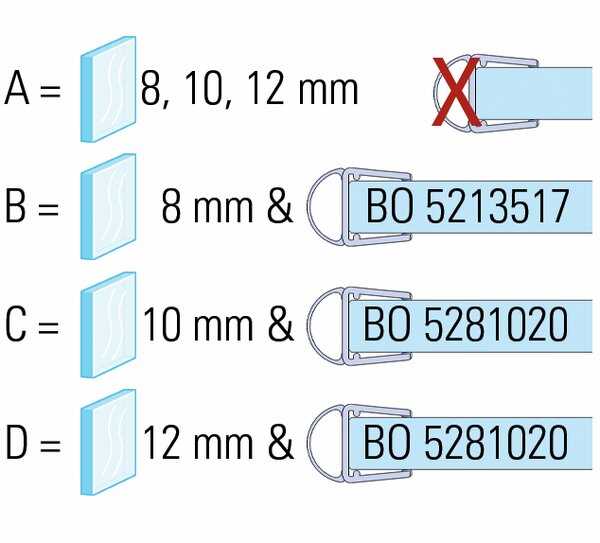

Glass thickness TSG
8 - 12 mm
Hold position
Without
Material
Brass
Max. door weight per pair
40 kg
Mounting type
Glass-Glass
Opening angle
90°
Opening direction
DIN left and DIN right
Package contents
1 Piece
Product series
Barcelona
Retrieval zone
Yes
Rise/fall function
No
Screws on the belt concealed
No
Self-closing from
15°
Self-closing function
No
Surface
Chrome-plated
Show all Show less

Downloads

pdf
Instructions
BO5219126 - Barcelona Select - Instruction Manual
pdf
Instructions
Maintenance and Care Instructions

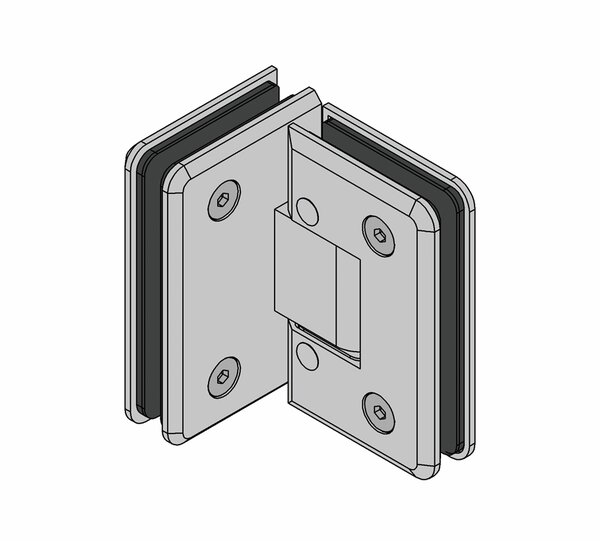

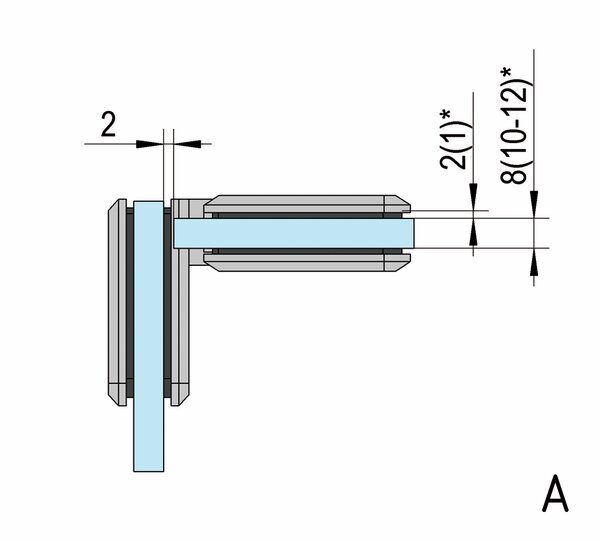

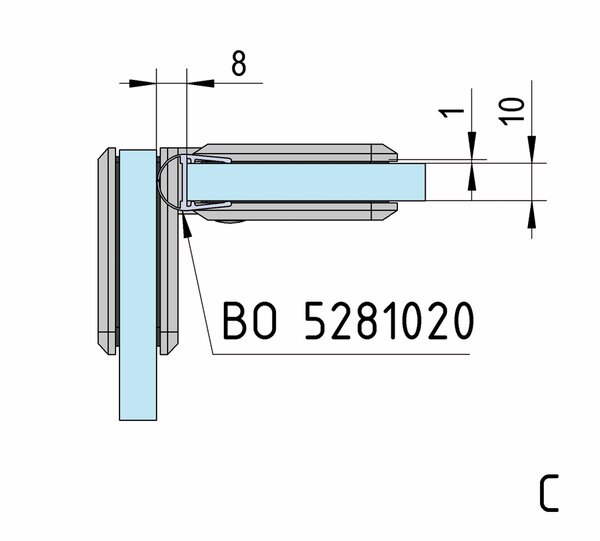

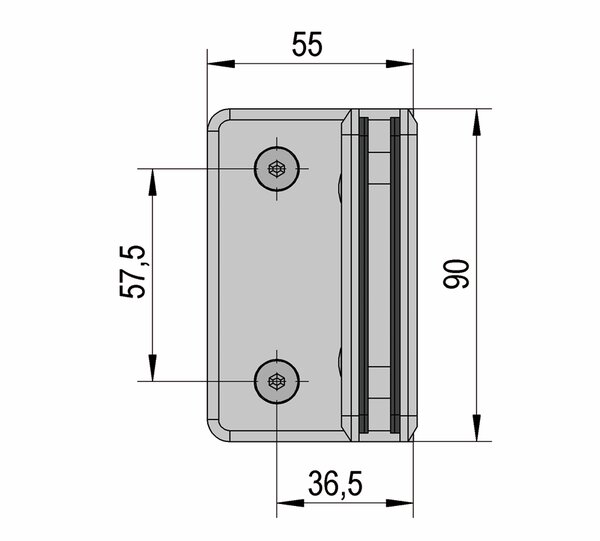

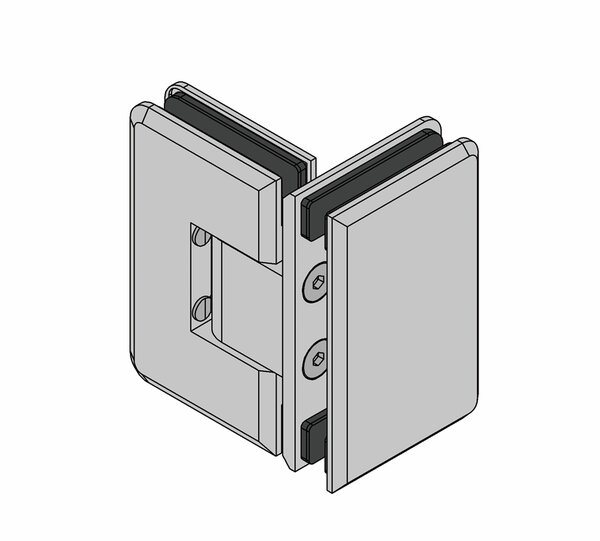

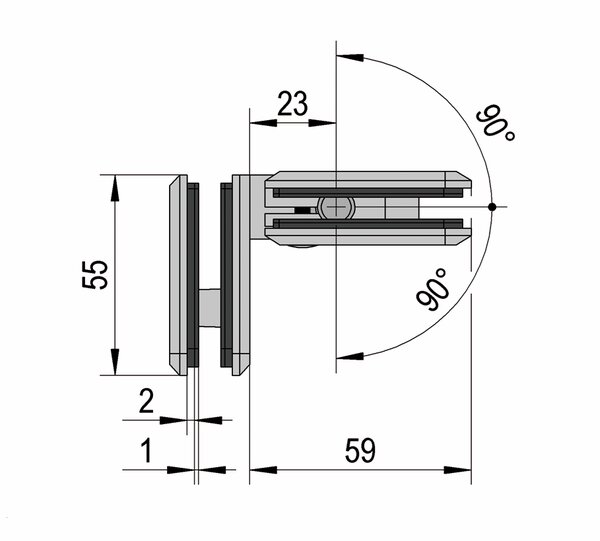

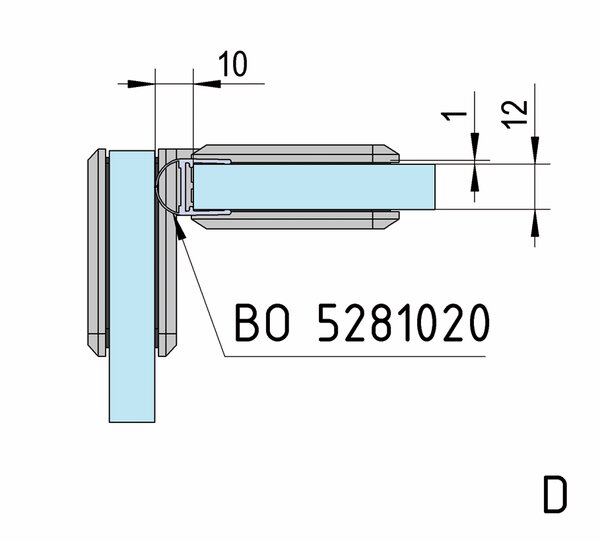

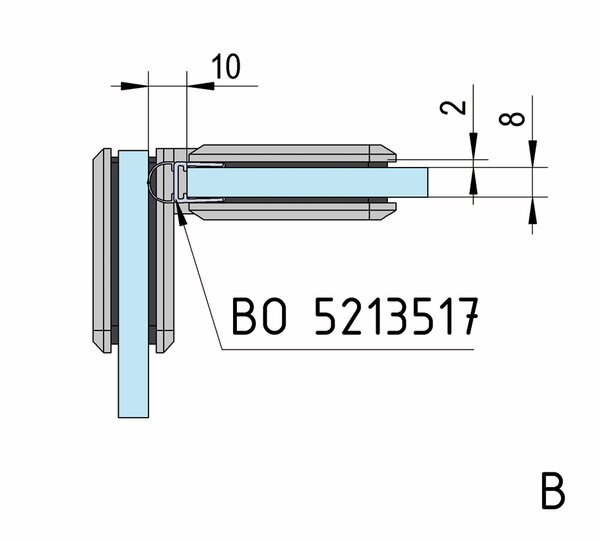

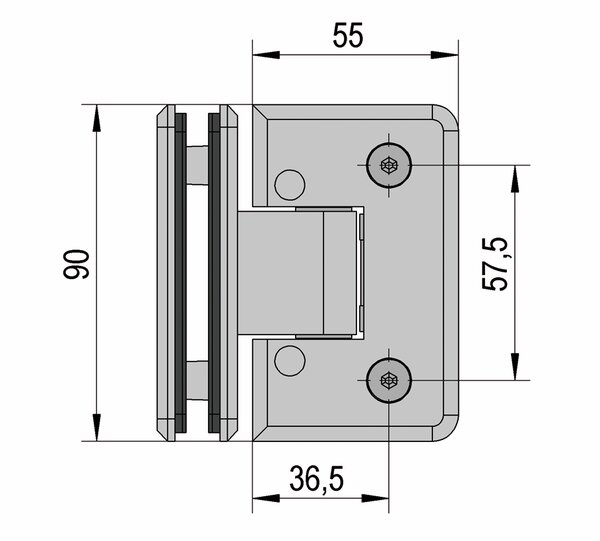

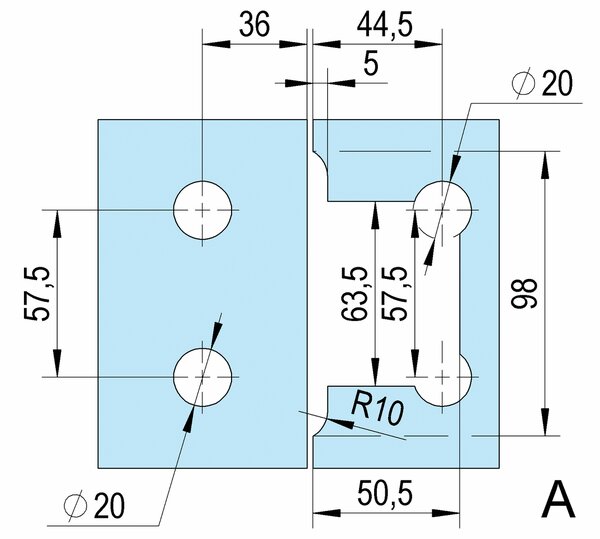

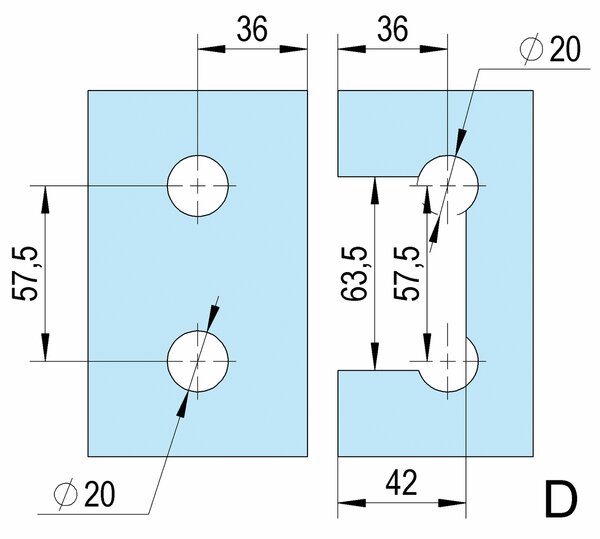

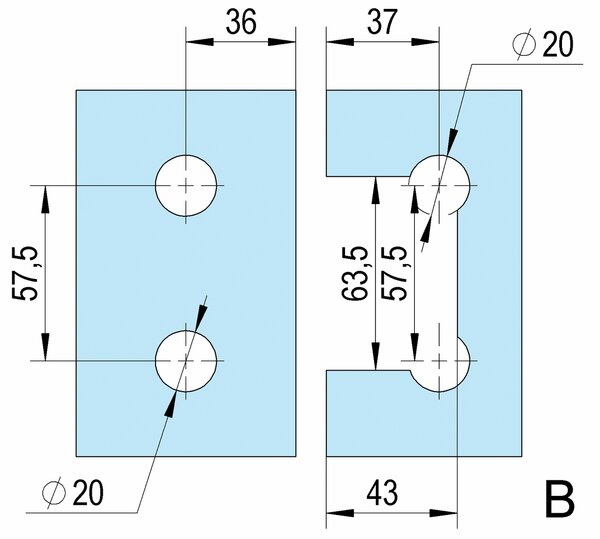

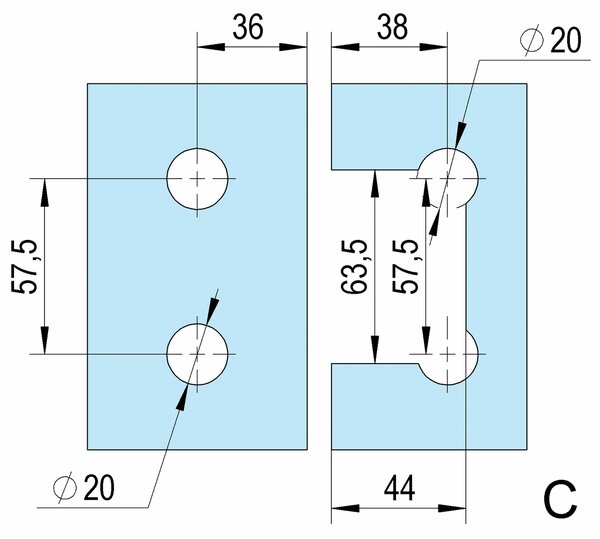

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
For more drawings please log in:
