Vitreasy 005 is a stylish, easy-to-install furniture door hinge with an integrated catch.
Application note:

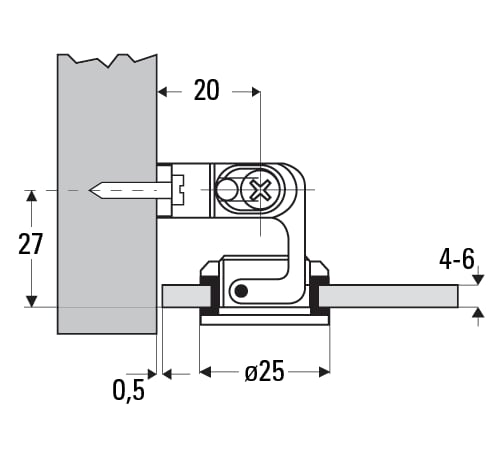

Glass fixed via groove nut with hook spanner DIN 1810
Vitreasy 005 Furniture hinge, glass-wood
Description
Your Advantages
- Only glass drilling required
- With integrated catch
Technical details
3D adjustability
No
Degree of gloss
Shiny
Diameter
25 mm
Door height
2,400 mm
Door type
Stop door
Door width
600 mm
Fastening type
Screwed
Flush
No

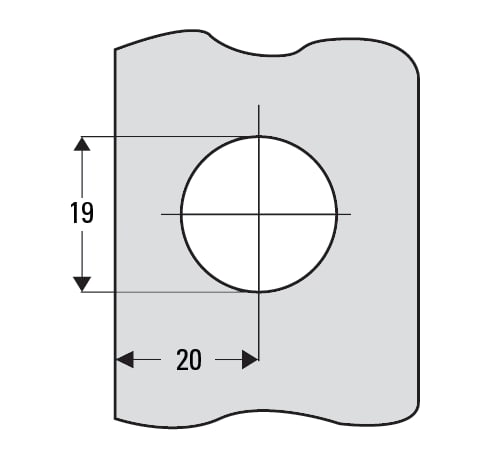

Glass processing required
Yes
Glass thickness
4 - 6 mm
Material
Brass
Mounting position
Inset
Mounting type
Glass-wood
Opening angle
105°
Opening direction
DIN right and DIN left
Package contents
1 Piece
Product range
Vitreasy 005
Shape
Round
Surface
Chrome-plated
