Spring hinge glass-glass

Product number: BO5404312

Description

The glass-to-glass spring hinge enables two glass elements to be connected with style and precision – ideal for frameless glass doors, e.g. for pools. Thanks to the integrated return spring, the door closes automatically, ensuring convenience and safety.



Your Advantages

  • Easy installation and fixing of the glass
  • Integrated closing spring – door closes automatically and gently
  • Corrosion resistant – ideal for use for pool surrounds or in coastal regions.

Technical details

Bore diameter
14 mm
Colour
Black
Glass thickness
8 - 12.76 mm
Height
123 mm
Material
Stainless steel Duplex 2205
Opening angle
90°
Surface
Powder coated
Width
96.5 mm

Scope of supply

1 Pair
Spring hinges

Downloads

PDF
Instructions
BO5404311-BO5404312-Spring-Hinge-glass-glass-instruction-manual.PDF

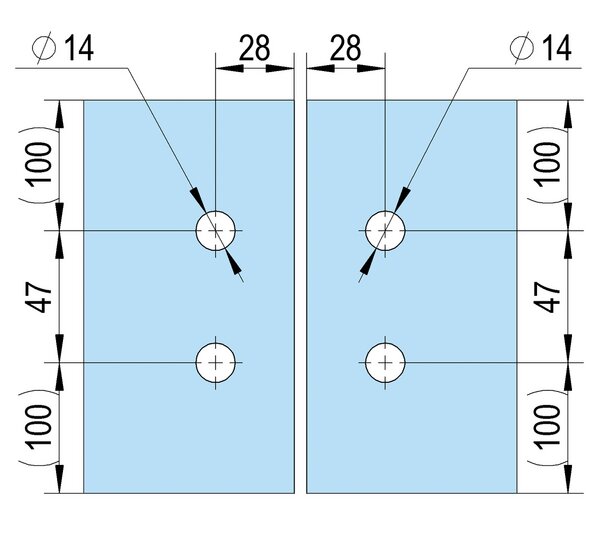

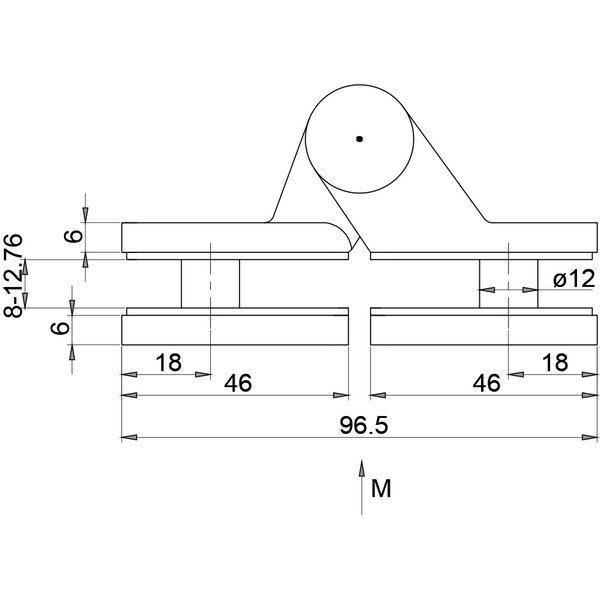

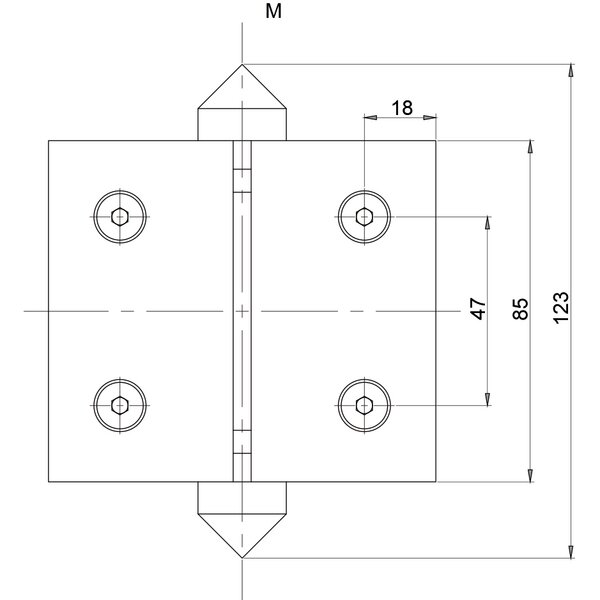

Drawings

jpg
jpg
jpg
