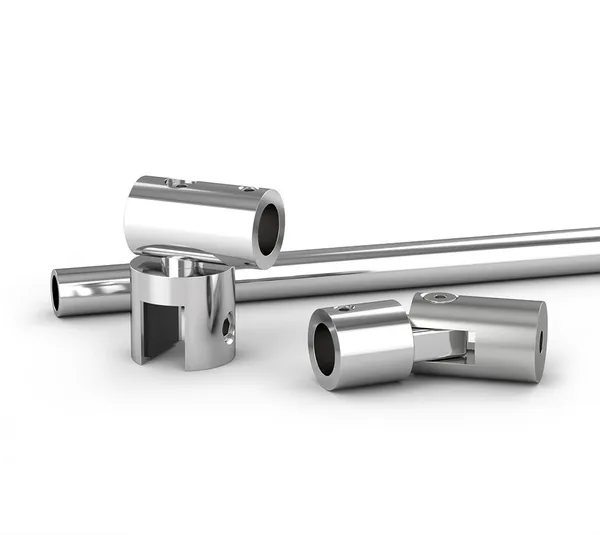

Reinforcement bar set Round 12, glass-wall

Product number: BO5420165

Description

Reinforcement bar set Round 12 is used to connect a fixed glass side panel to a wall. The glass connector is clamped onto the upper glass edge and, like the wall connector, is freely adjustable in angle.

Your Advantages

  • No glass processing required
  • Small unobtrusive design
  • Reinforcement bar can be cut to desired length
  • Glass connector angle adjustable
  • Wall connector angle adjustable

Technical details

Adjustable
Yes
Degree of gloss
Shiny
Diameter
12 mm
Glass thickness ESG
8 - 10 mm
Length
1,210 mm
Material
Brass
Mounting type
Glass-Wall
Package contents
1 Set
Product range
Round 12
Shape
Round
Surface
Chrome-plated
Show all Show less

Scope of supply

1 Piece
Reinforcement bar
1 Piece
Adjustable glass connector
1 Piece
Adjustable wall connector

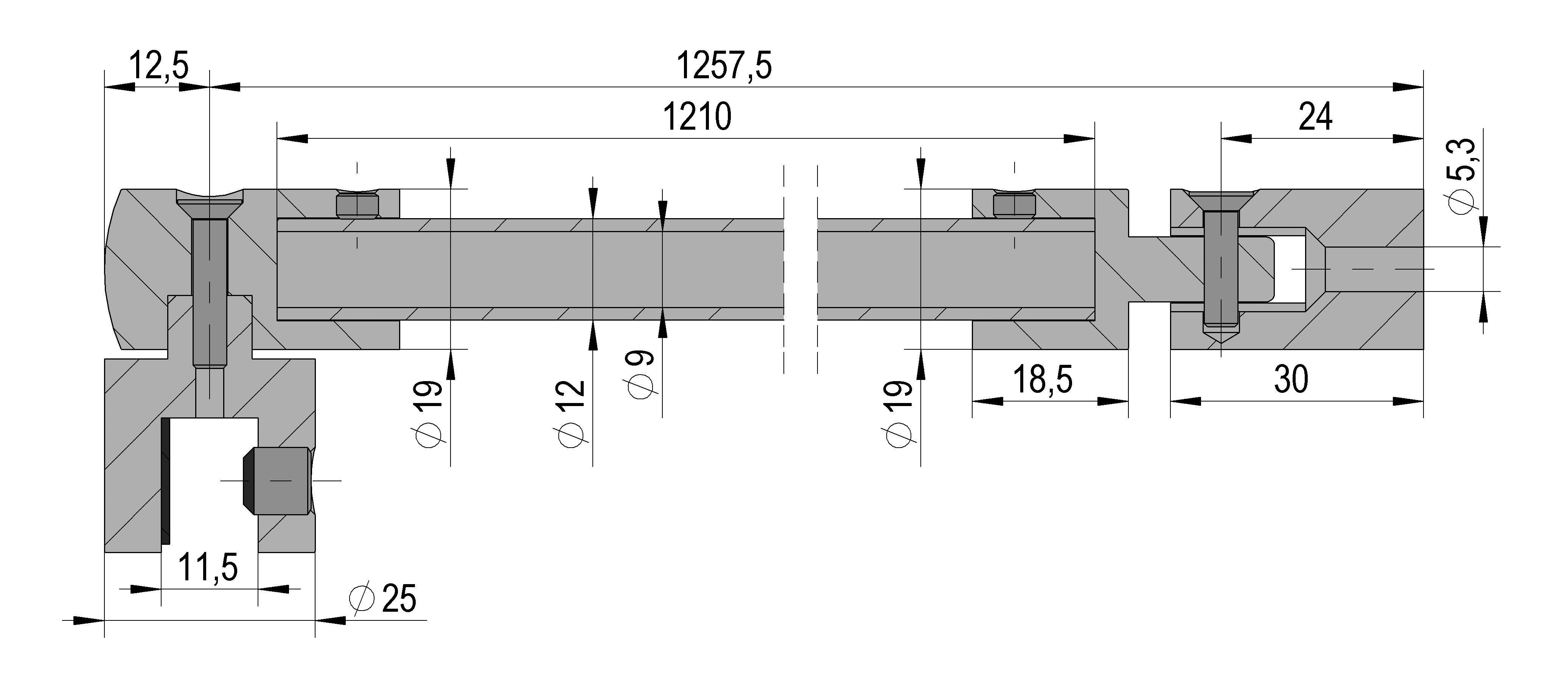

Drawings

jpg
For more drawings please log in:

Similar products

+ 2 Variations

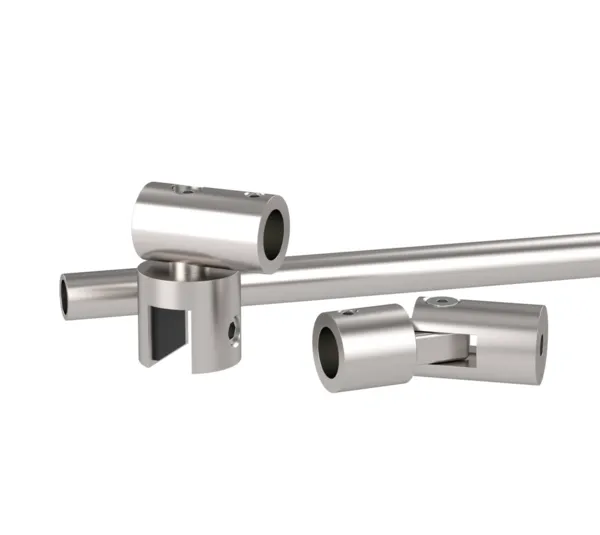

Reinforcement bar set Round 12, glass-wall
  • Adjustable: Yes
  • Colour scheme: Stainless steel colour nickel-plated brushed matt
  • Length: 1,210 mm

This might also interest you

+ 2 Variations

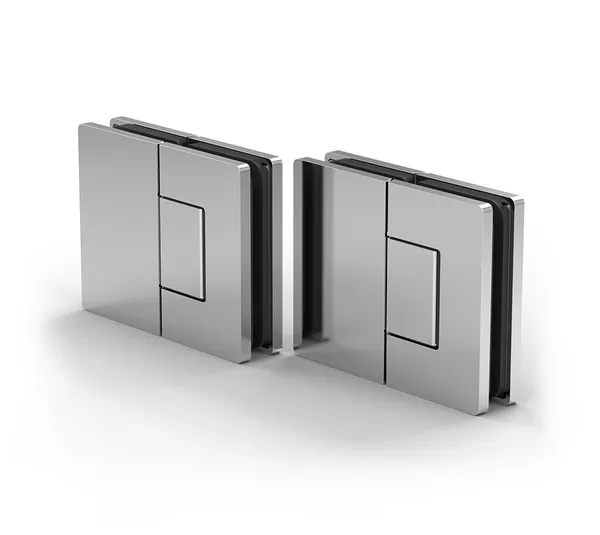

Santos angle connector, glass-glass 90°
