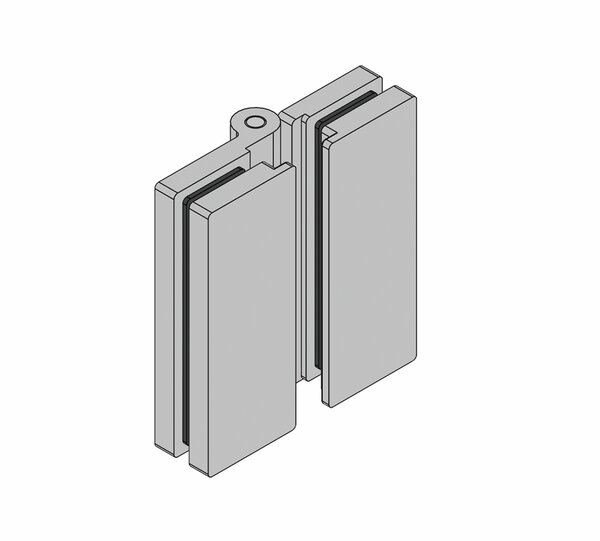

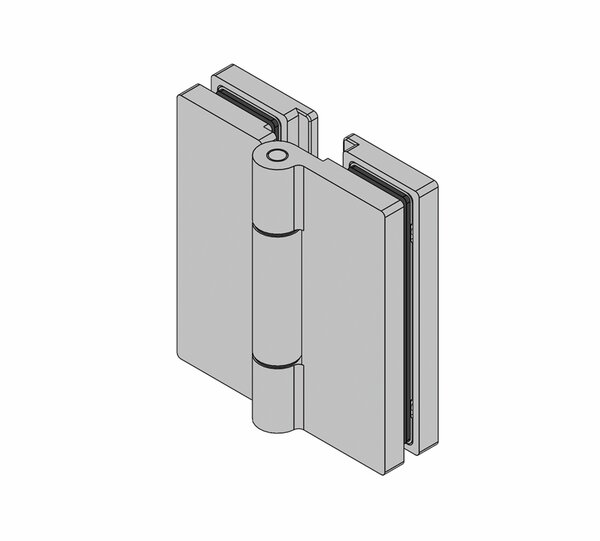

Madrid shower door hinge, glass-glass 180°

Madrid shower door hinge, glass-glass 180°

Product number: BO5215432

Description

The Madrid rebate shower door hinge has a load capacity of 45 kg. Doors up to max. 1 x 2.25 m can be realised. With 180° glass-to-glass mounting, the hinge is designed for 180° folding glass walls, among other things.

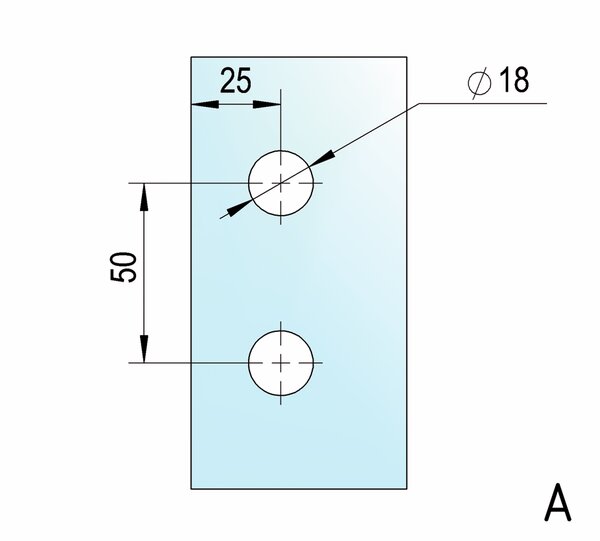

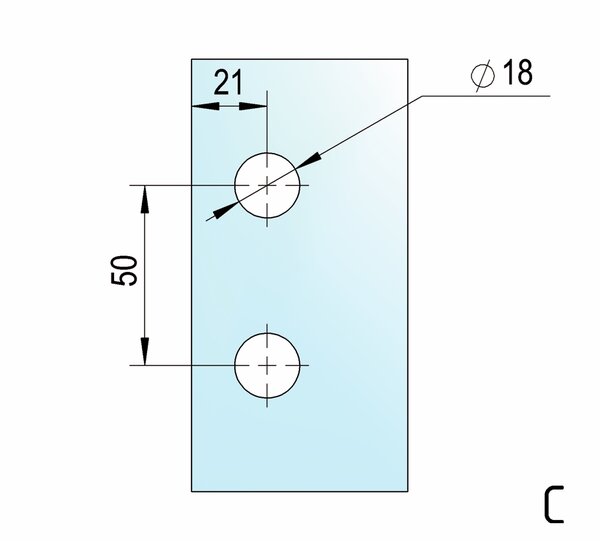

All screw fittings on the strap are concealed so that nothing detracts from the high-quality look. The design is classically angular and therefore timeless. The sealing profiles can be guided through the hinge. No glass cut-outs are required for installation, only glass drill holes. You can find suitable measurement sheets for your installation situation here.

Show all Show less

Your Advantages

  • Concealed screws
  • Only glass drilling required
  • Shower door seals can be passed through the hinge

Technical details

Concealed wall fixings
Yes
Degree of gloss
Shiny
Door height
2,250 mm
Door type
Stop door
Door width
1,000 mm
Flush
No
Glass processing required
Yes
Glass thickness TSG
8 - 10 mm
Inward / outward opening
Opening outwards
Material
Brass
Max. door weight per pair
45 kg
Mounting type
Glass-Glass
Opening direction
DIN left and DIN right
Package contents
1 Piece
Product series
Madrid
Rise/fall function
No
Screws on the belt concealed
Yes
Self-closing function
No
Surface
Chrome-plated
Show all Show less

Downloads

pdf
Instructions
Maintenance and Care Instructions

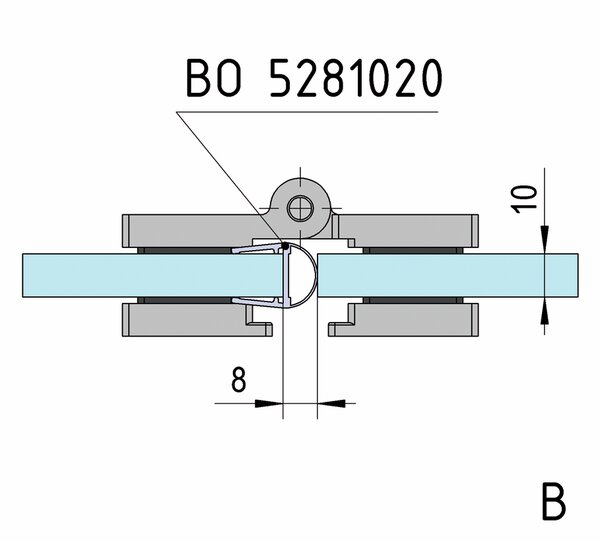

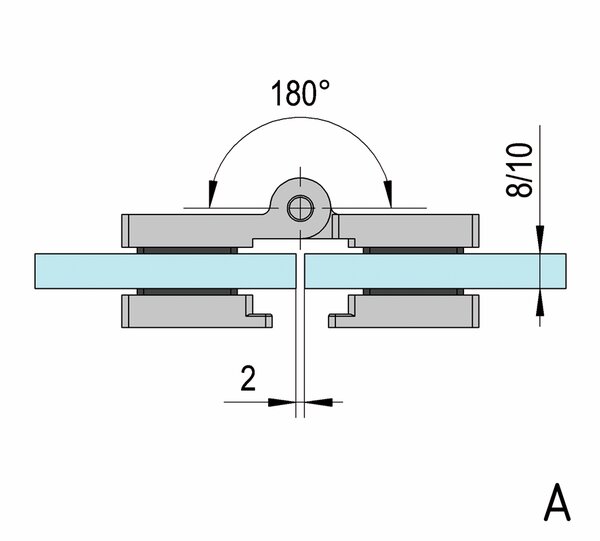

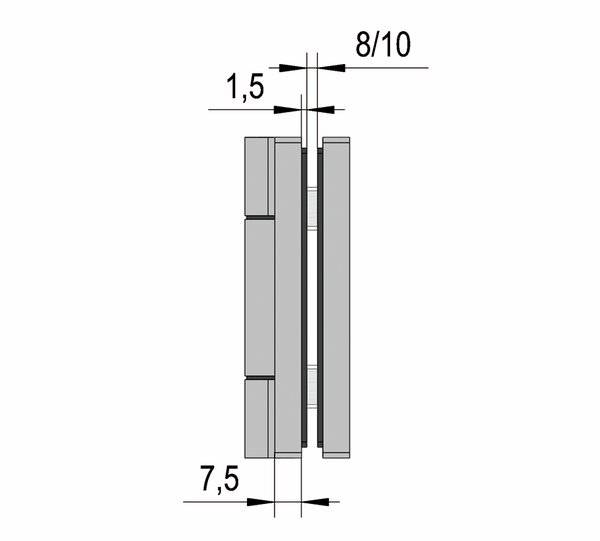

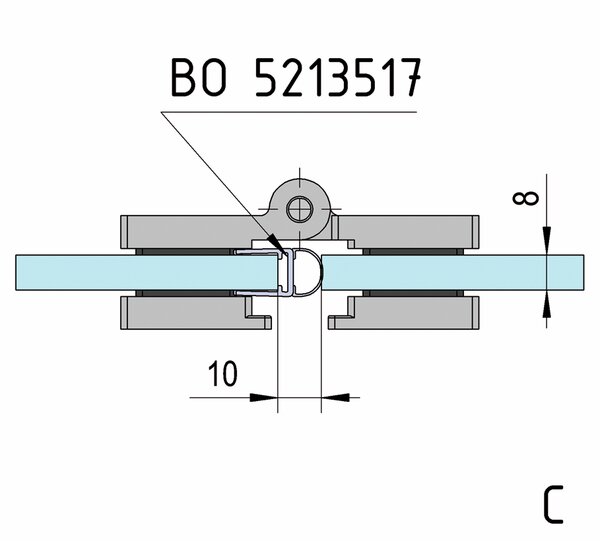

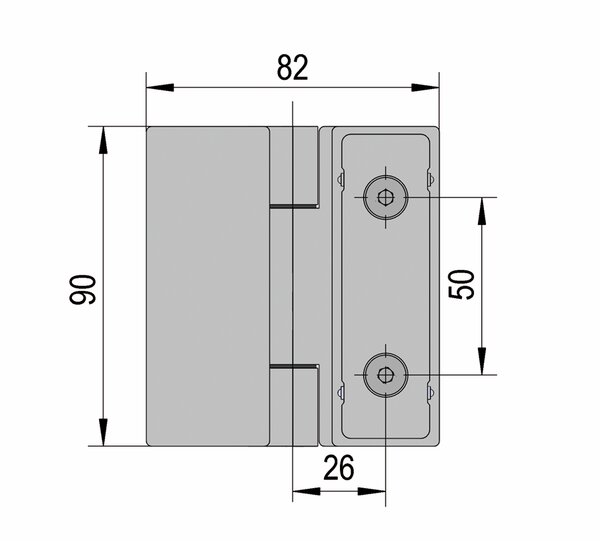

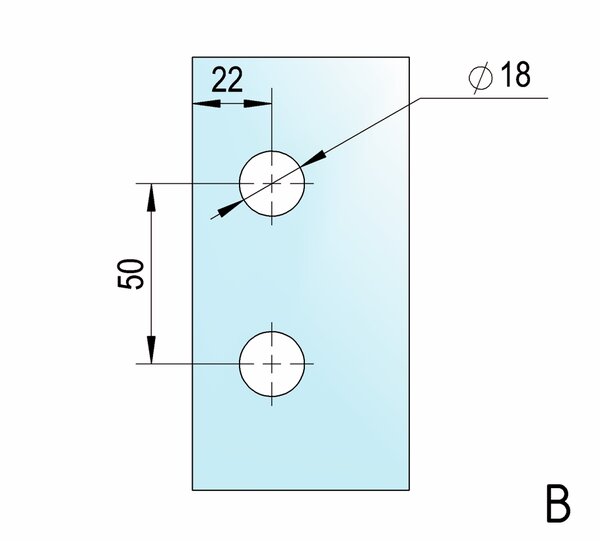

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg

Discover more

Skip product gallery

Similar products

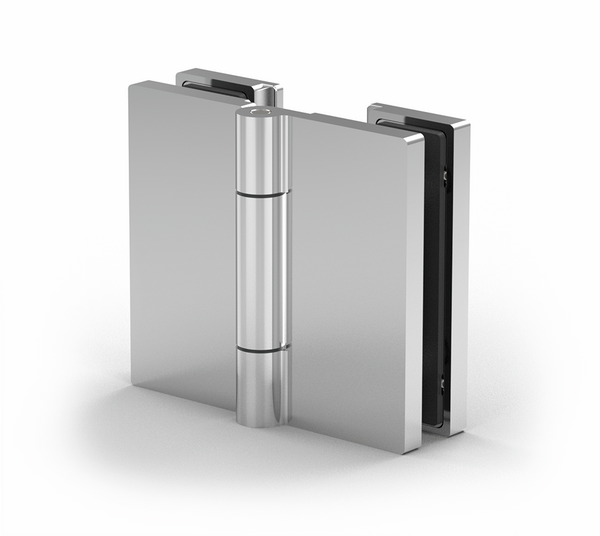

Shower door hinge Madrid, glass-glass 135-180°
