Handrail support top mount, 90° height adjustable

Handrail support top mount, 90° height adjustable

Product number: BO5404518

Description

The handrail support bracket allows a round handrail tube to be mounted at a 90° angle as a corner connector on a railing post. The height can be adjusted by 60 mm to suit individual requirements.



For ø 42.4 mm round handrails. Mounting on square posts measuring 40 x 40 mm.

Your Advantages

  • Height individually adjustable
  • Timeless design

Technical details

Application area
Indoor
Colour
Stainless steel
Material
Stainless steel V2A (AISI 304)
Surface
Brushed

Scope of supply

1 Piece
Handrail support

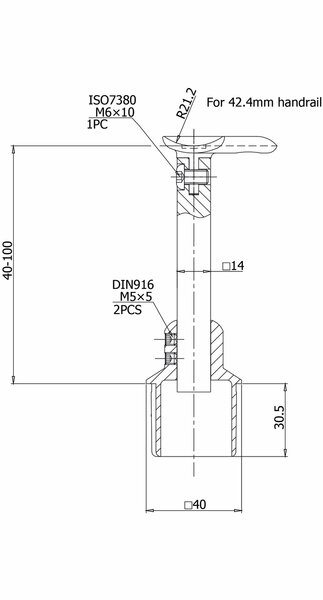

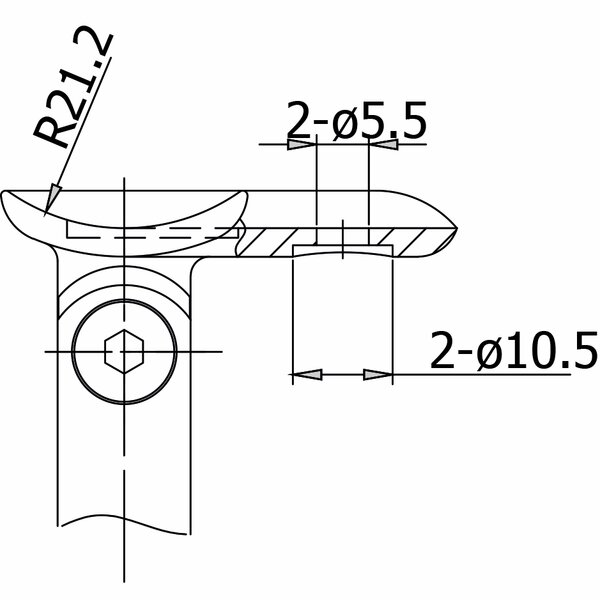

Drawings

jpg
jpg
jpg
