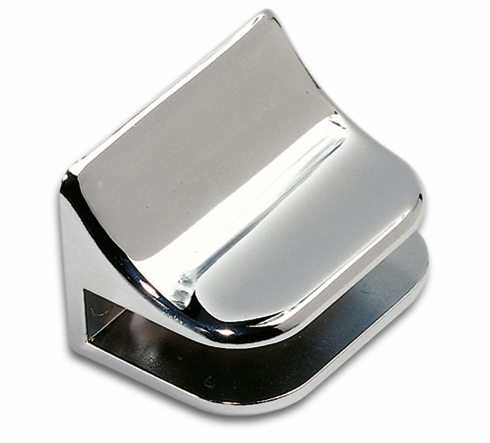

Glass shelf support concave

Product number: BO5207321

Description

Glass shelf support made of die-cast zinc in an unusual shape. The concave extension of the wall support upwards increases stability. An individually adjustable clamp safely prevents the glass shelves from slipping out.

Application note:
Load capacity and maximum glass width refer to one pair

Show all Show less

Your Advantages

  • Higher stability due to extension of the wall support
  • No glass processing required
  • Plastic glass protection is included in the scope of delivery

Technical details

Degree of gloss
Shiny
Depth
35 mm
Glass processing required
No
Glass thickness
8 - 10 mm
Height
35 mm
Load capacity
5 kg
Material
Zinc die casting
Max. overhang
200 mm
Mounting type
Glass-Wall
Package contents
1 Piece
Shape
Convex
Surface
Chrome-plated
Width
50 mm
Width max.
600 mm
Show all Show less

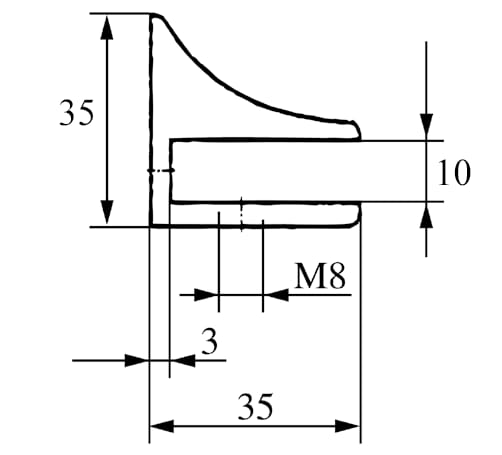

Drawings

jpg
