End post side mounting

Product number: BO5404507

Description

Our high-quality stainless steel balustrade post combines sophisticated design with maximum functionality – the perfect choice for indoor (V2A) and outdoor (V4A) use. This post for side/front mounting forms the ideal lateral finish to the balustrade.

Pre-drilled for easy and precise installation of glass clamps at heights of 435 mm and 1130 mm, the post enables quick installation and precise alignment of your glass panels – without any additional effort.

One of the Bohle post holders BO 5404508 - 10 is required for installing the posts.

Your Advantages

  • Pre-drilled for easy installation of glass clamps
  • Timeless design
  • For indoor (V2A) or outdoor (V4A) use

Technical details

Application area
Outside
Colour
Stainless steel
Depth
40 mm
Depth (imperial)
1.57"
Glass height max.
940 mm
Height
1,250 mm
Height (imperial)
49.21"
Material
Stainless steel V4A (AISI 316)
Material thickness
2 mm
Material thickness (imperial)
0.08"
Surface
Brushed
Width
40 mm
Width (imperial)
1.57"
Show all Show less

Scope of supply

1 Piece
Post

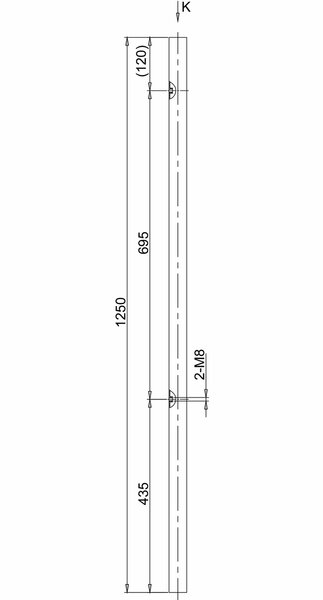

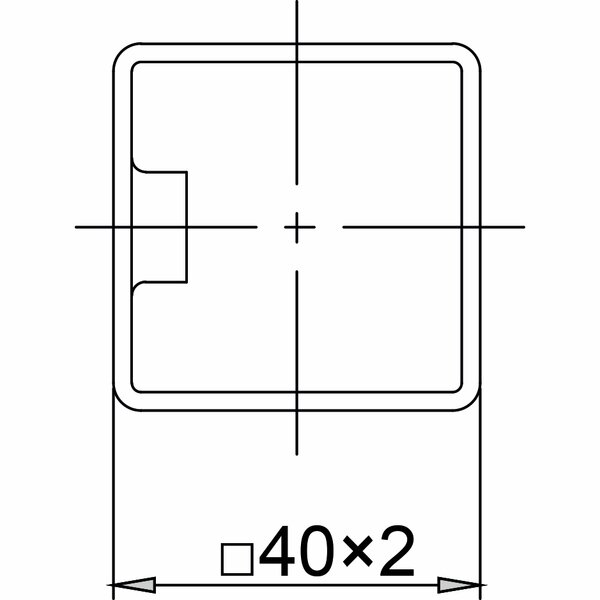

Drawings

jpg
jpg
