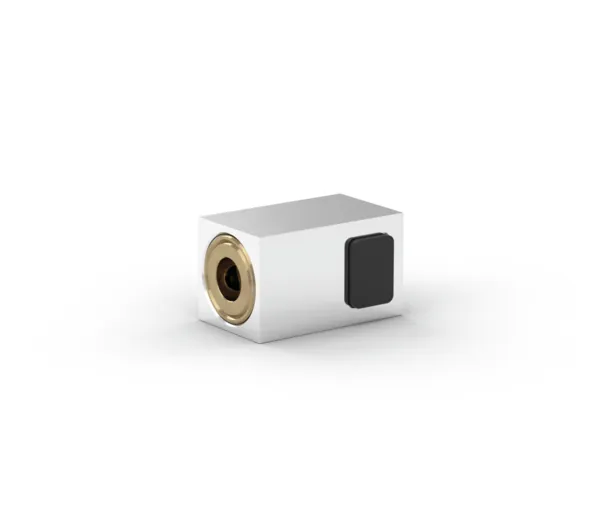

Door stop for retrofitting, glass-wall 90°

Door stop for retrofitting, glass-wall 90°

Product number: BO5420277

Description

Door stops for retrofitting 90° glass wall are screwed to the wall. They prevent the door from being pushed over in one direction. The end position of the door can be finely adjusted using the integrated eccentric adjustment.



Your Advantages

  • Small, inconspicuous design
  • Eccentric adjustment

Technical details

Degree of gloss
Shiny
Glass thickness TSG
6 - 12 mm
Material
Brass
Mounting type
Glass-Wall
Opening direction
DIN left and DIN right
Package contents
1 Piece
Surface
Chrome-plated

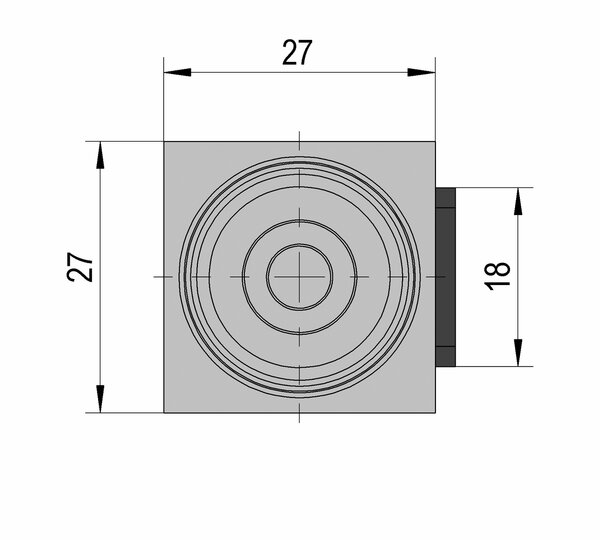

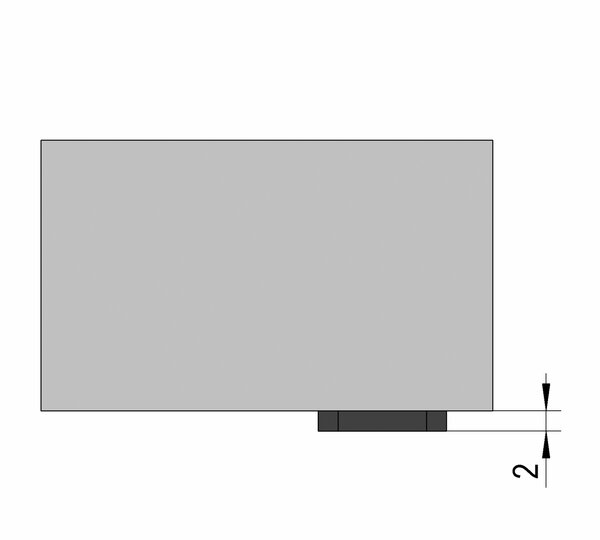

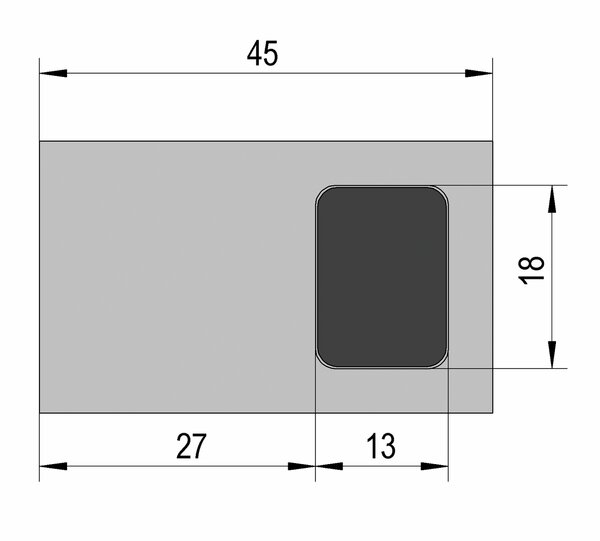

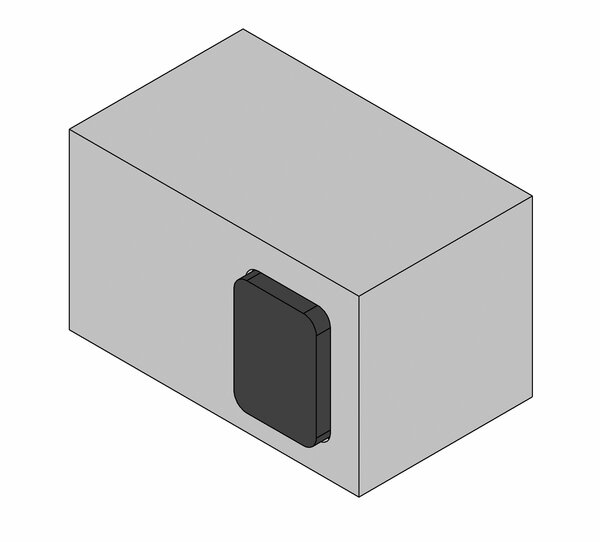

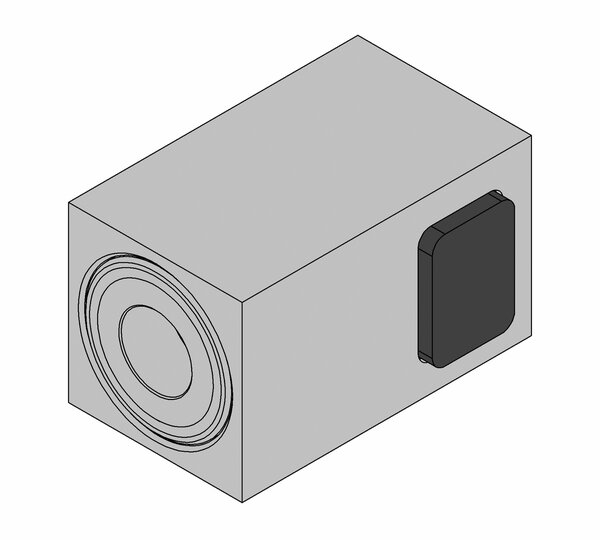

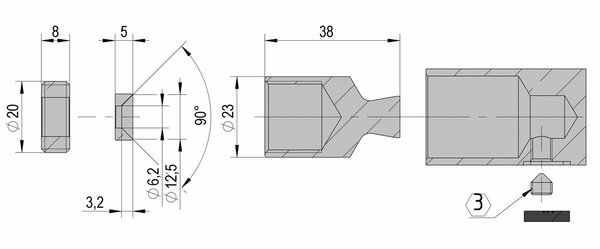

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
For more drawings please log in:
