The cover caps of the PT 20 Plus corner fitting ensure a consistently elegant appearance. The narrow fitting is mounted in the upper corner of the door.

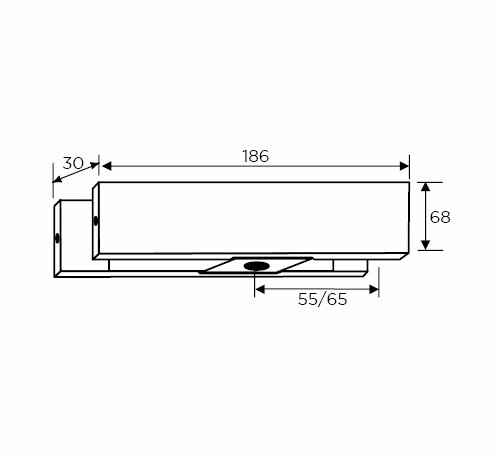

Corner fitting Patch top PT20 PLUS
Please to see prices.
Description
Your Advantages
- Dimensions of the cover cap suitable for self-closing corner fitting Standard Duty
- With plastic bush for pin diameter 15 mm
Technical details
Application area
Indoor
Door width
- 1,250 mm

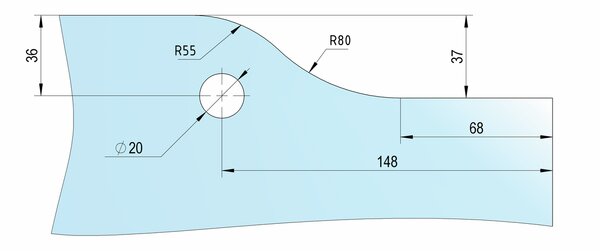

Glass thickness TSG
10 - 12 mm
Material
Stainless steel V2A
Package contents
1 Piece
Surface treatment
Brushed
Downloads
pdf
Plannings Aids
Patch - Overview
Discover more
+
3
Variations
Alva top patch fitting PT 20 Plus / PT 20 Plus HD
Subscription
Art. no.:
BO5216610
- Colour scheme: Brushed
- Glass thickness TSG: 8 - 12 mm
