Corner connector, vertically adjustable, ø 42.4 mm

Product number: BO5404726

Description

This angle connector, adjustable from 0 to 70°, enables a clean connection of the ø 42.4 mm round handrail to a stair railing.



Suitable for ø 42.4 mm handrail tubes BO 5404743 - 48.

Technical details

Angle
0 - 70°
Angular direction
To the left
Colour
Black
Diameter
42.4 mm
Material
Stainless steel V4A (AISI 316)
Material thickness
2 mm
Package contents
1 Piece
Shape
Round
Suitable for
42.4 mm handrail

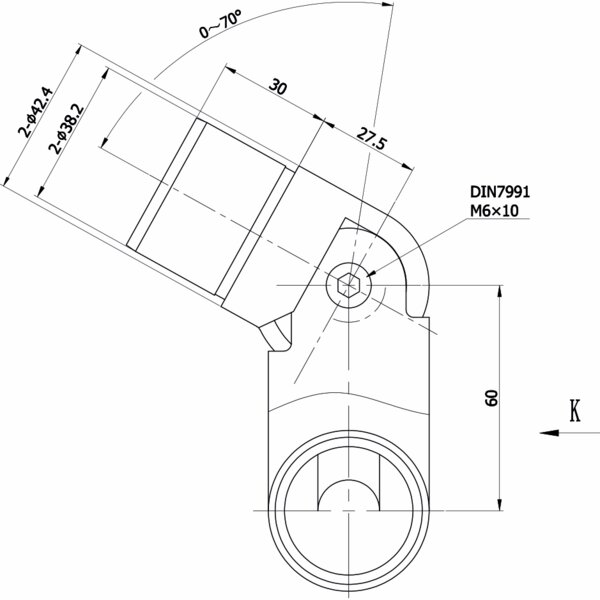

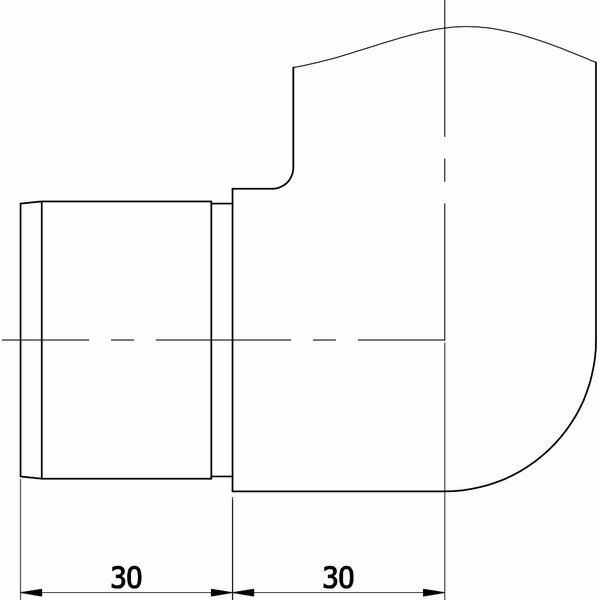

Drawings

jpg
jpg
