Avila angle connector, glass-glass 90°

Product number: BO5215472

Description

Avila angle connector 90° glass-glass for connecting two fixed glass side panels to each other. Only simple holes in the glass panes are required.

Avila 90° glass-glass angle connector for connecting two glass side panels at right angles to each other. Only simple holes in the glass panes are required.

Show all Show less

Your Advantages

  • Only glass drilling required
  • Concealed screws
  • Cover caps with clip technology

Technical details

Angle
90°
Degree of gloss
Shiny
Flush
No
Glass thickness TSG
6 - 10 mm
Material
Brass
Mounting type
Glass-Glass
Package contents
1 Piece
Product series
Avila
Rise/fall function
No
Screws on the belt concealed
Yes
Surface
Chrome-plated
Show all Show less

Downloads

pdf
Instructions
BO5215472 - Corner Clamp Avila - Glass-Glass 90 - Instruction Manual
pdf
Instructions
Maintenance and Care Instructions

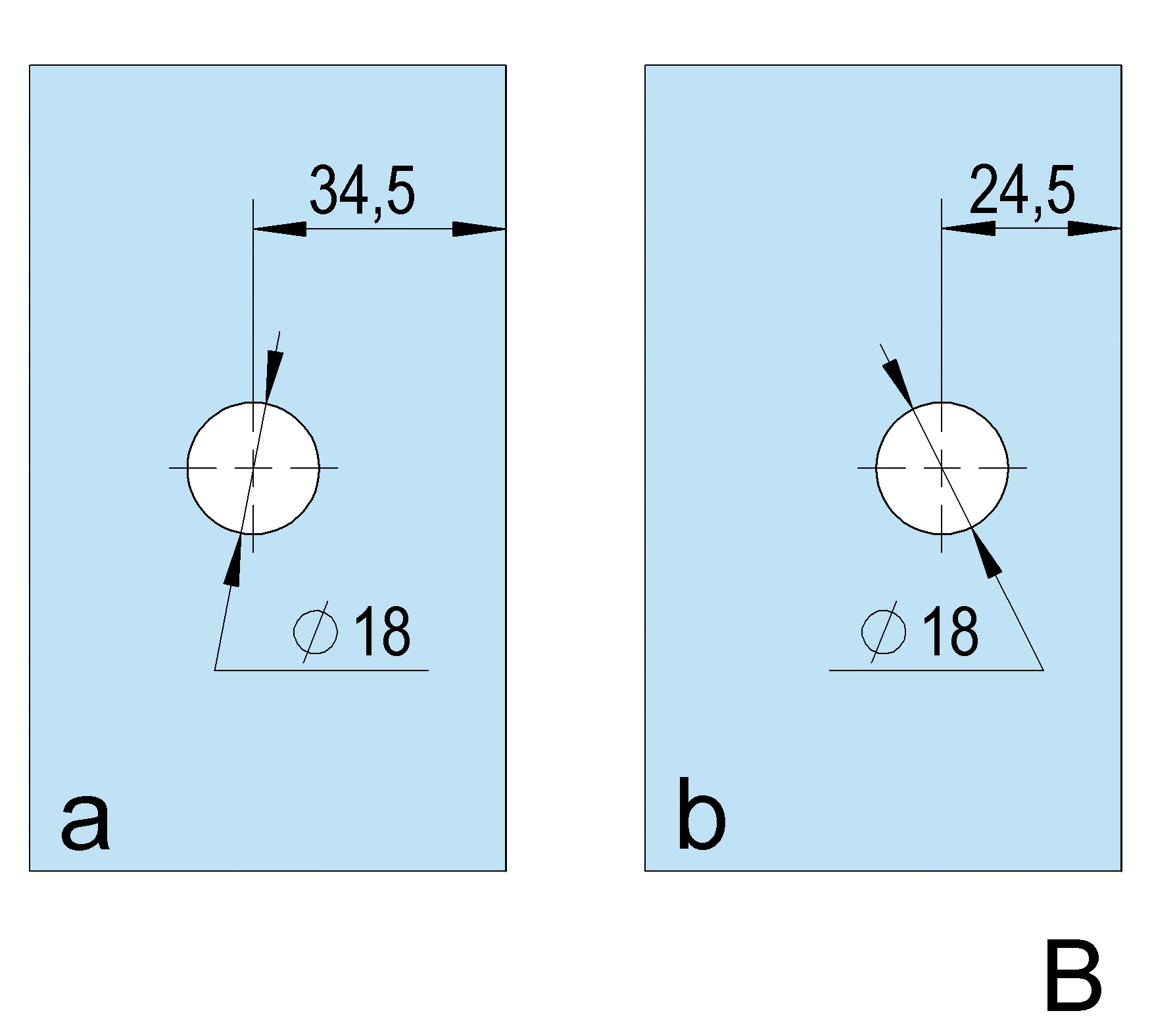

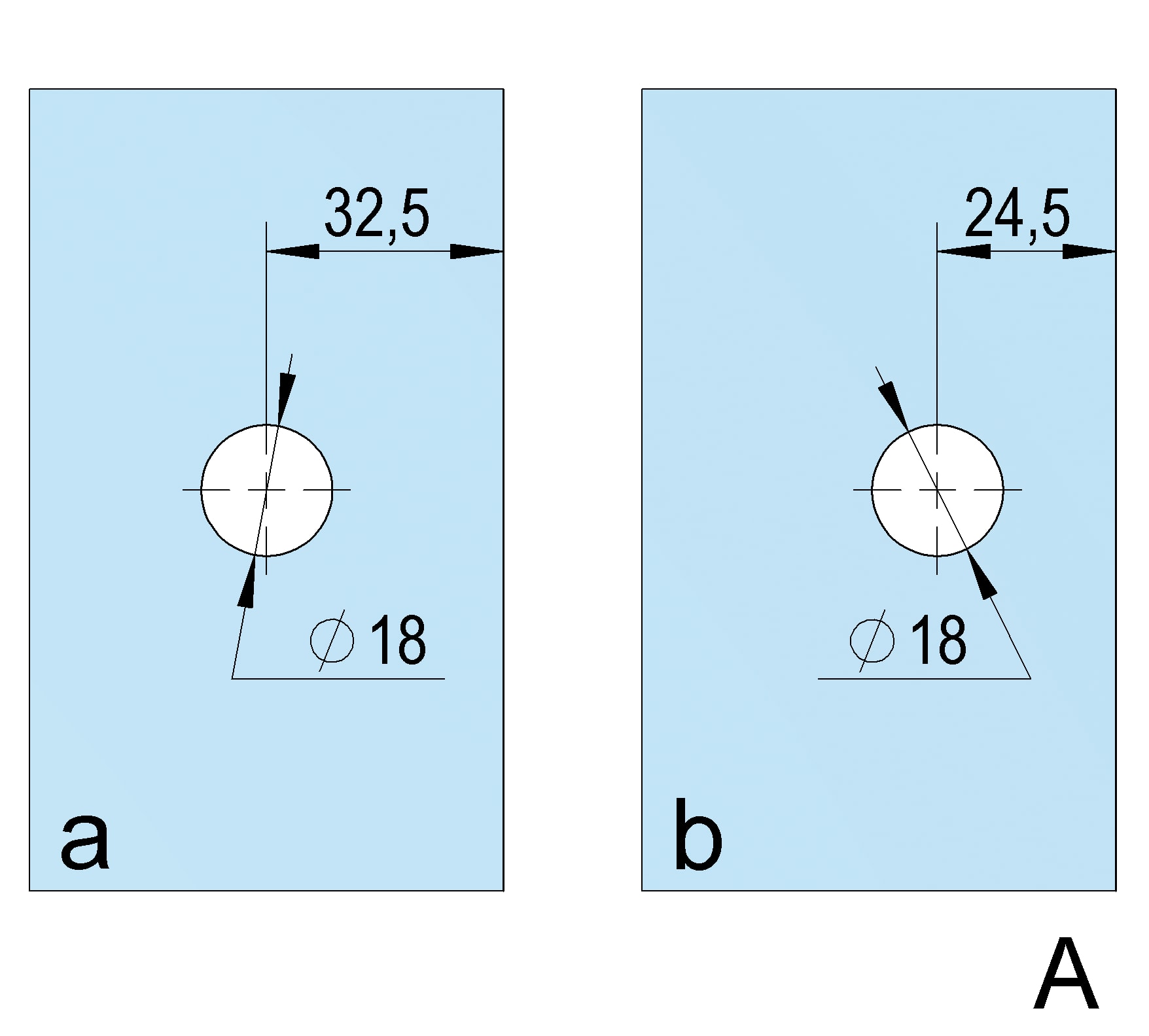

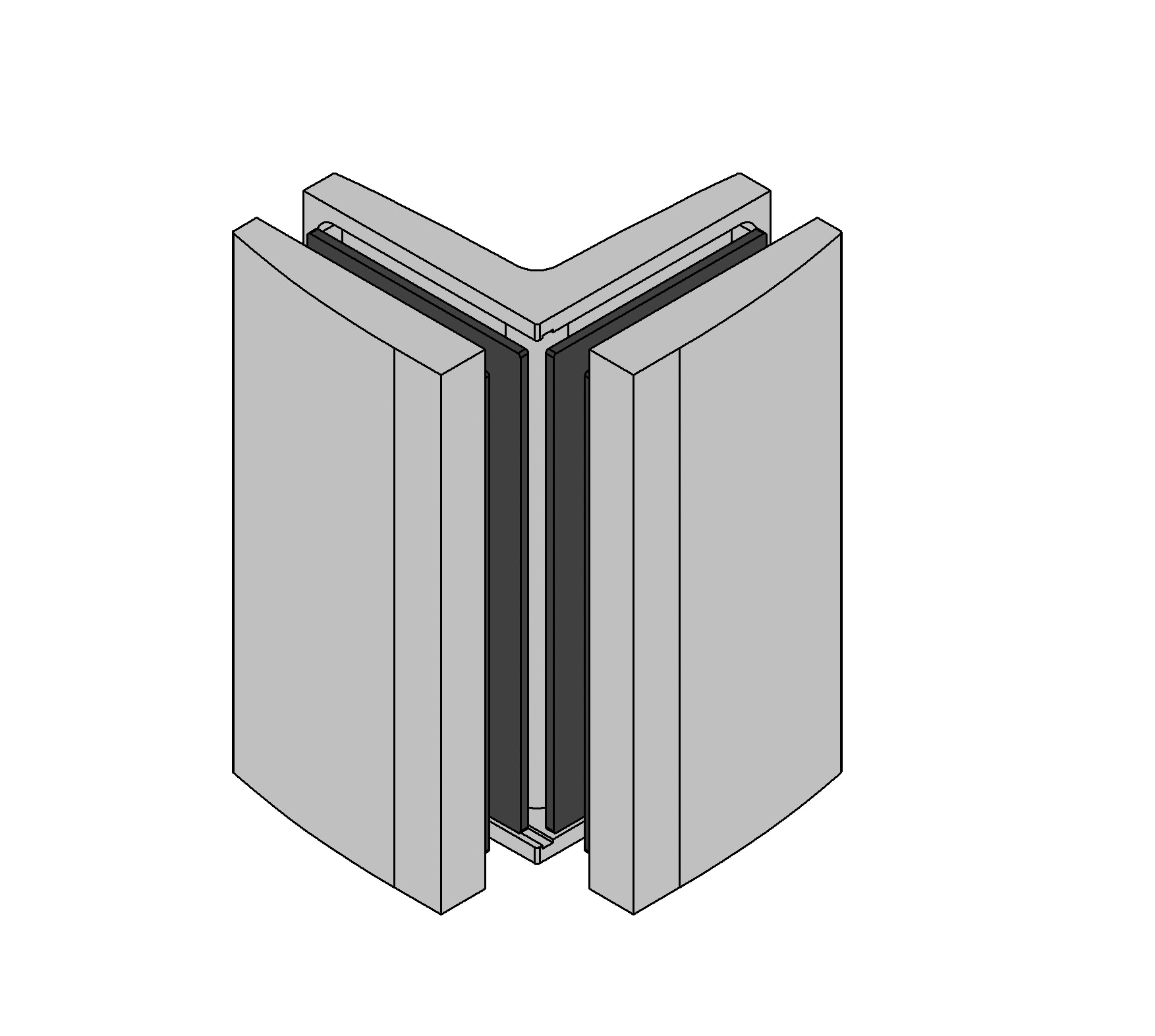

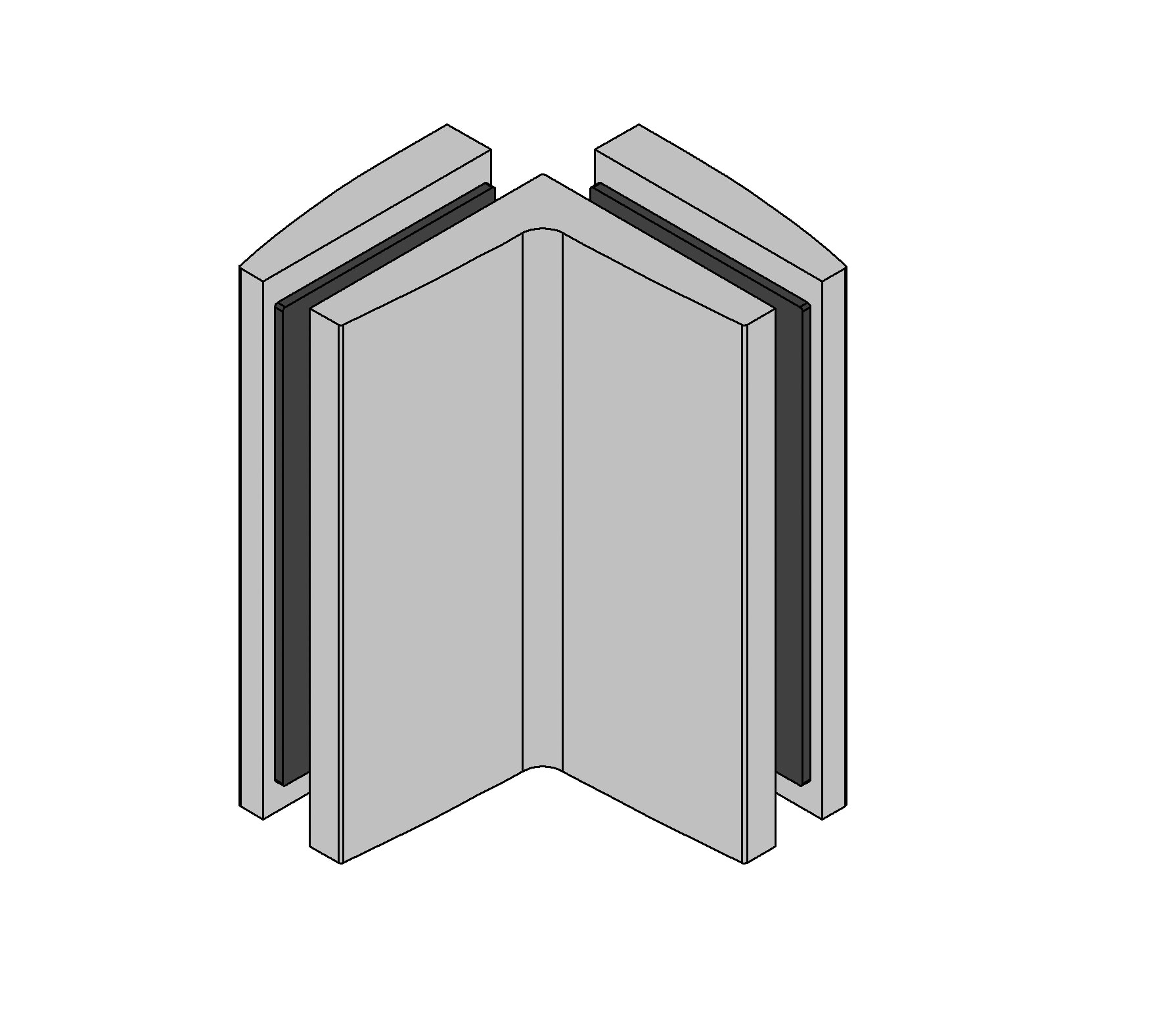

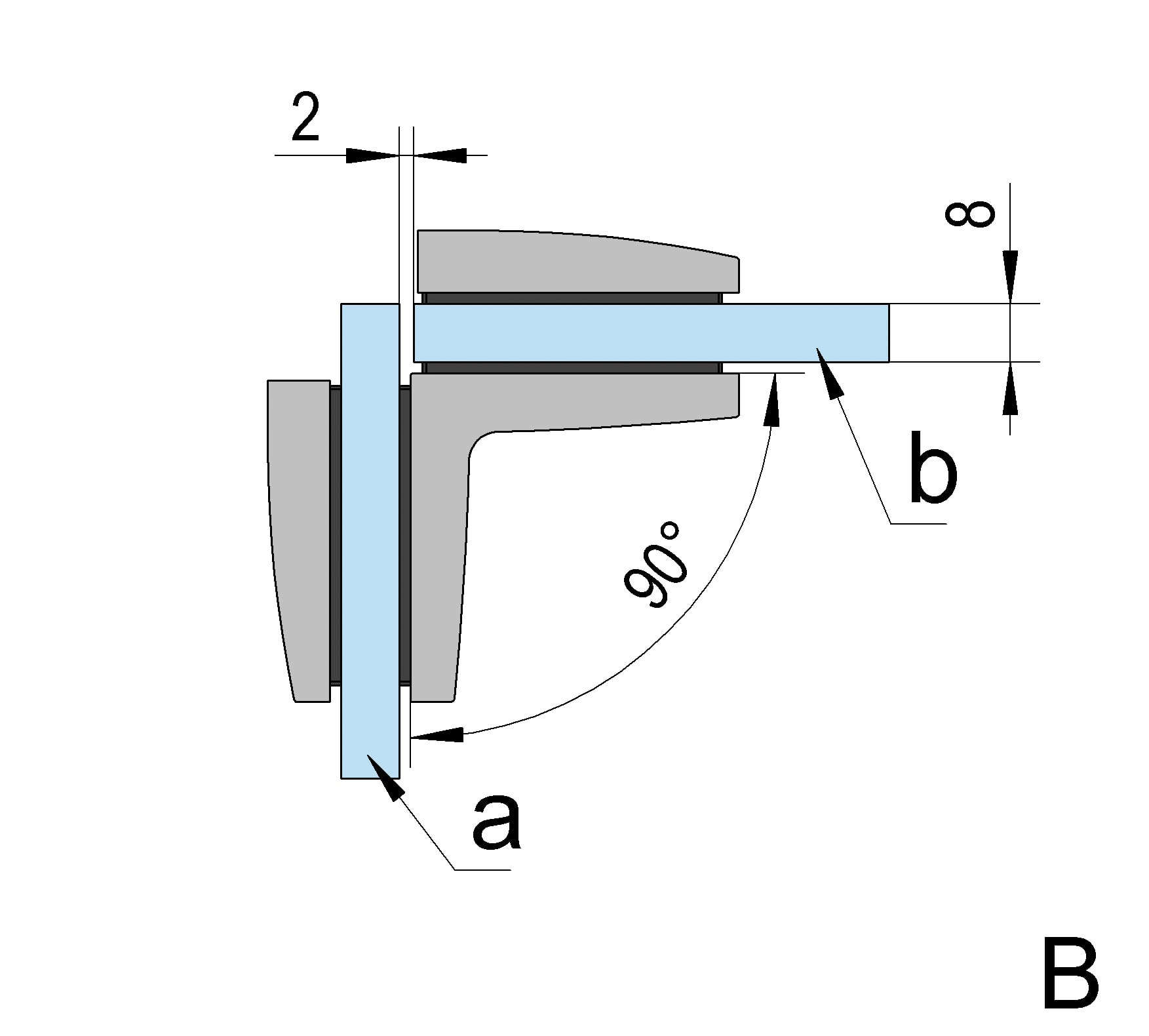

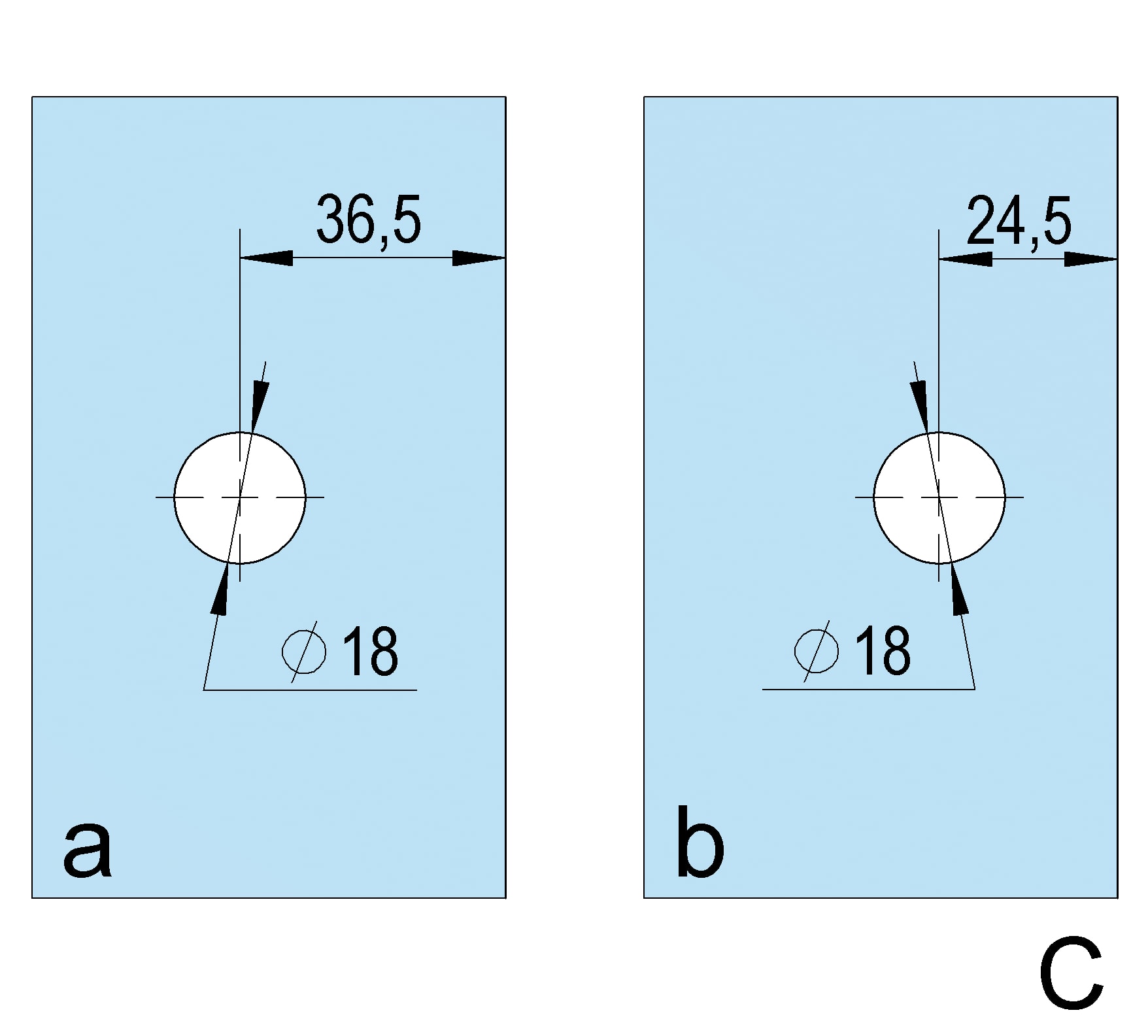

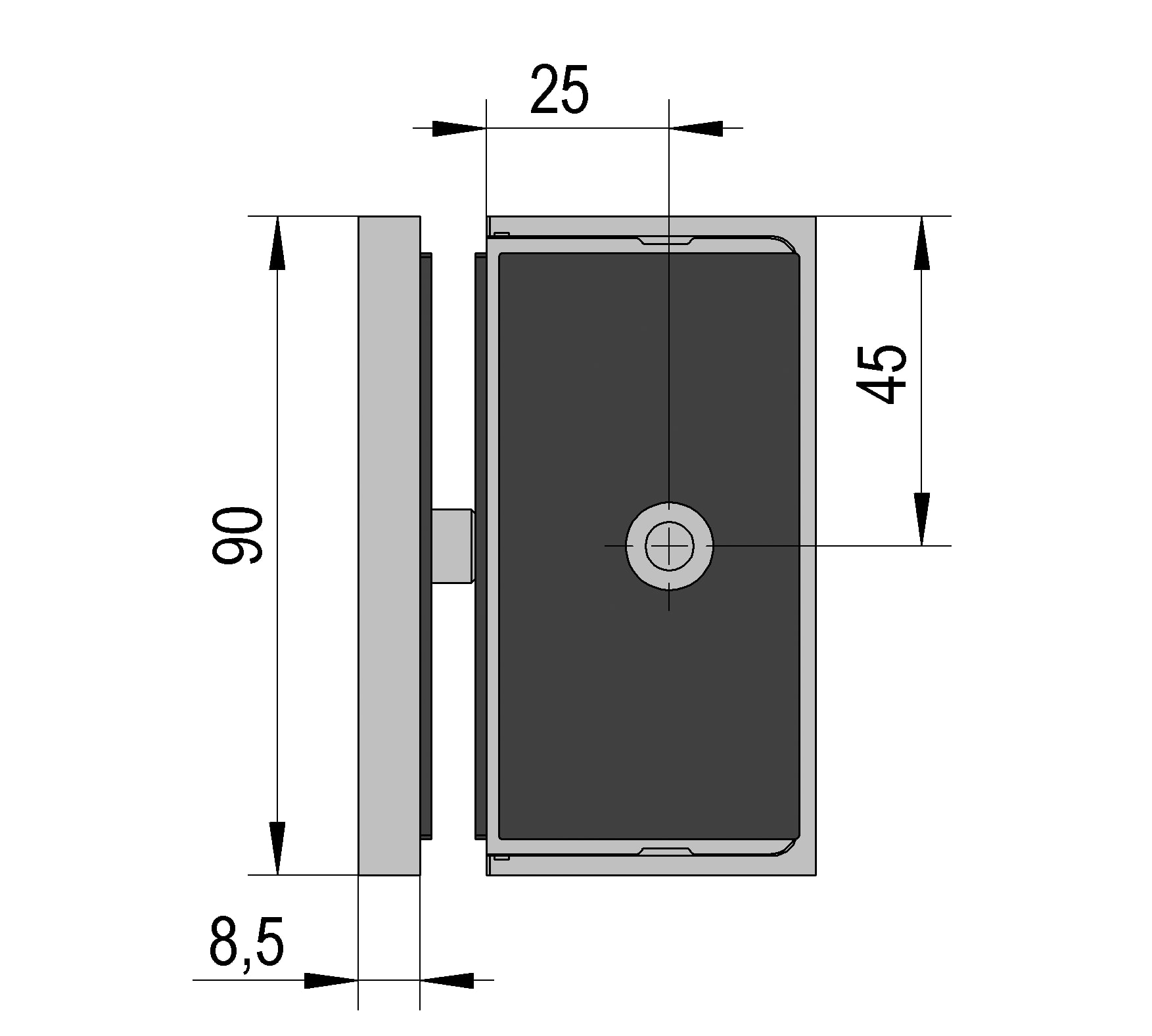

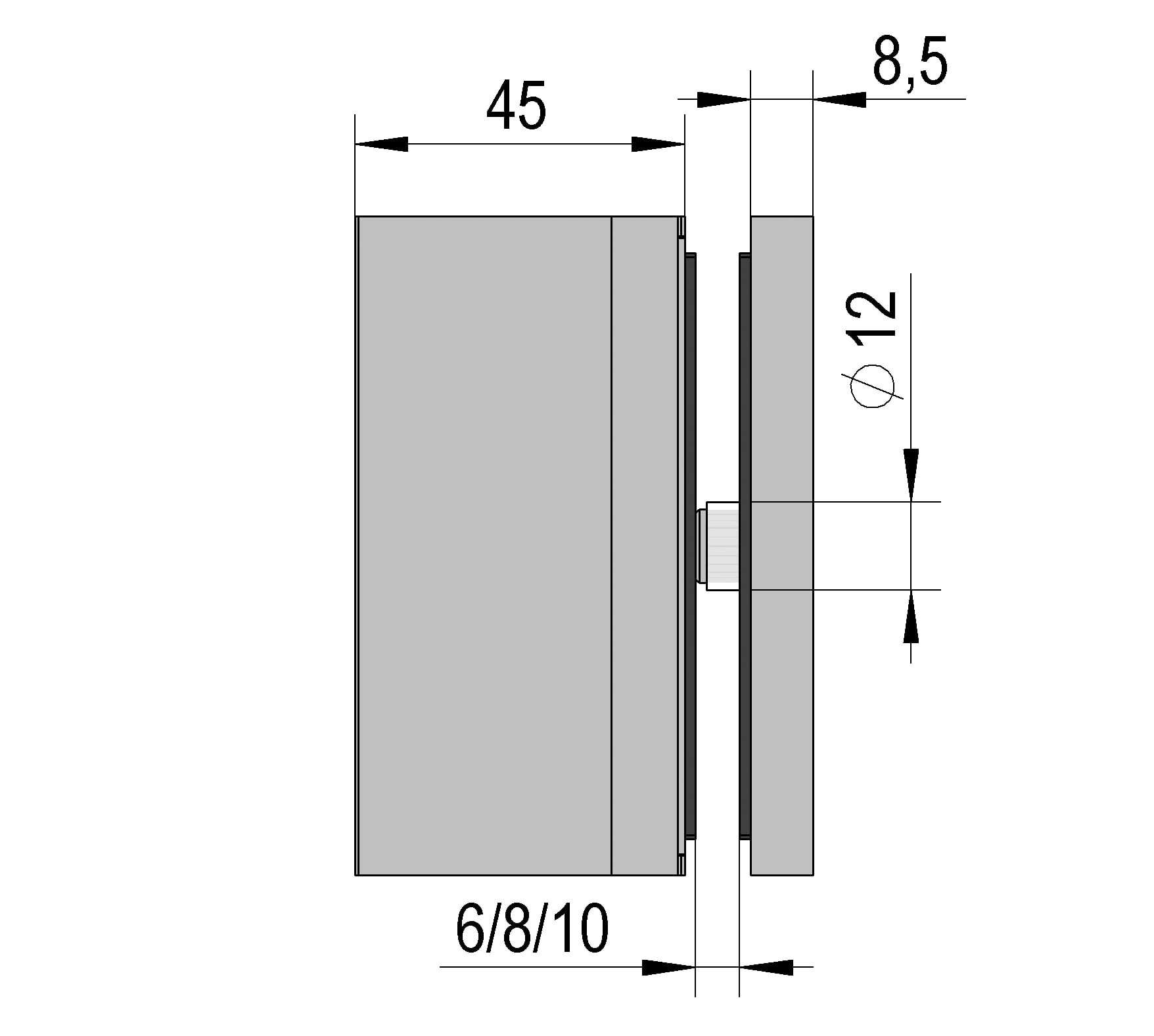

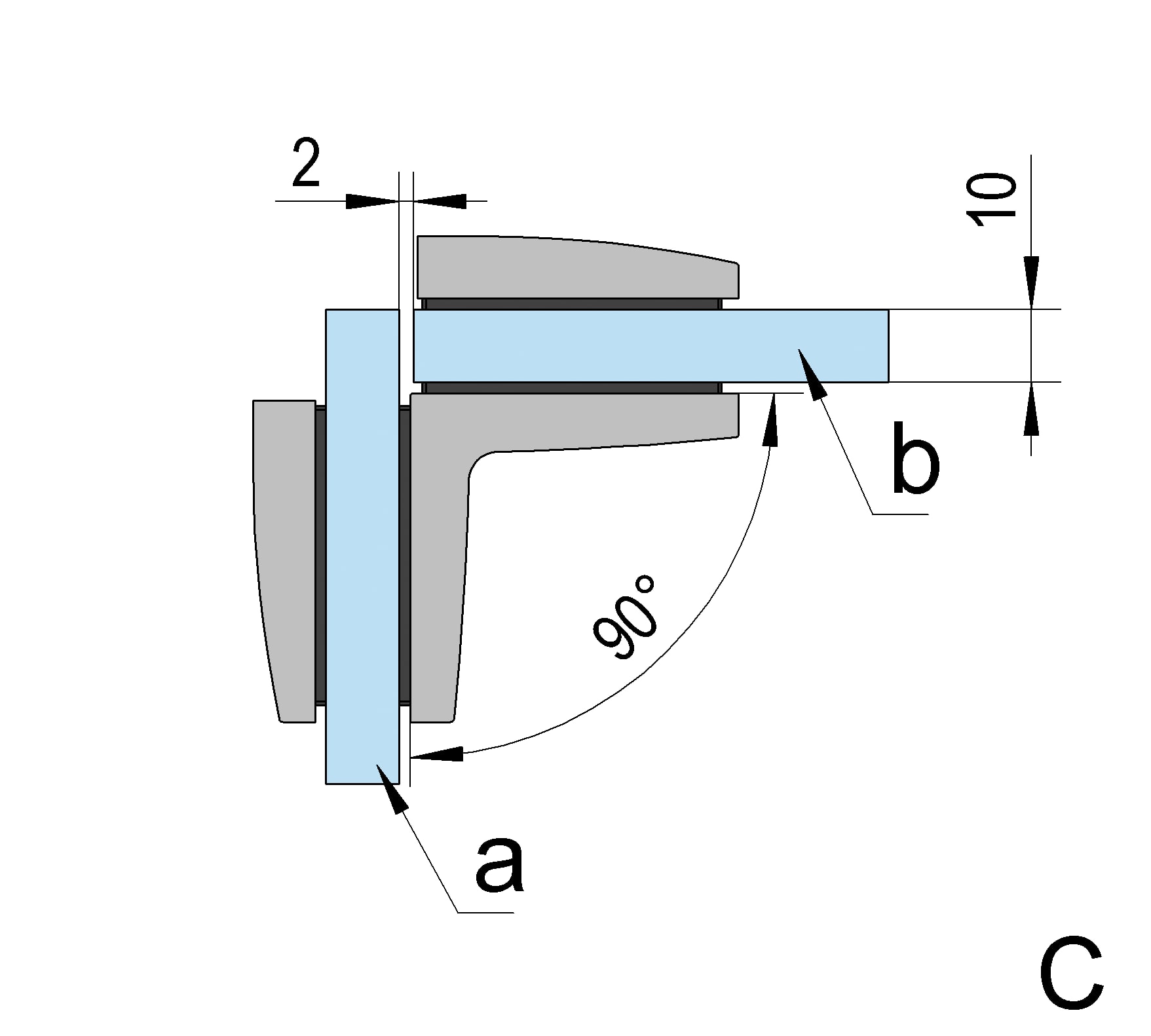

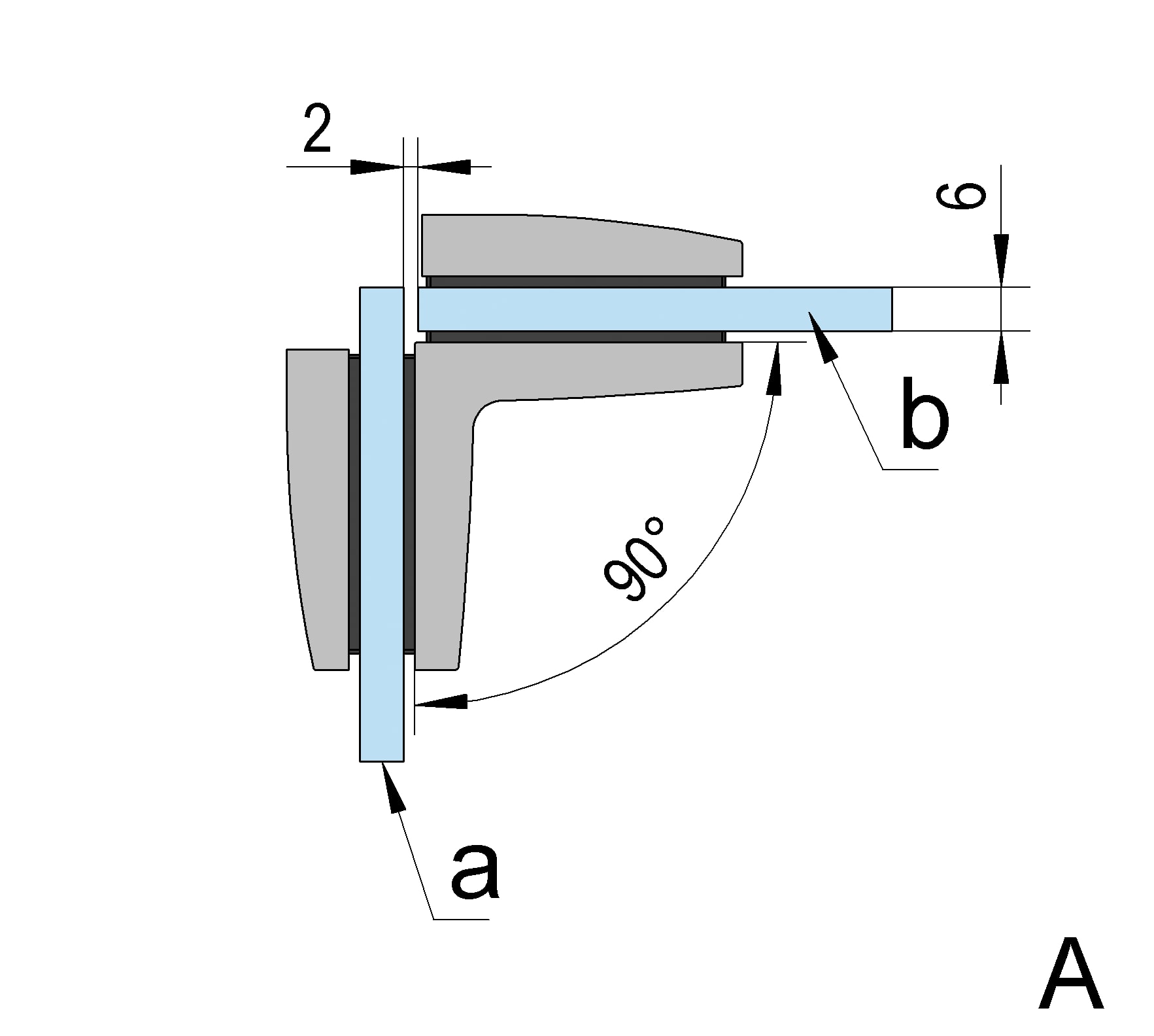

Drawings

jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
jpg
For more drawings please log in:
