Angle connector Juna®, glass-wall 90°

Choose Colour scheme

Product number: BO5410376

Description

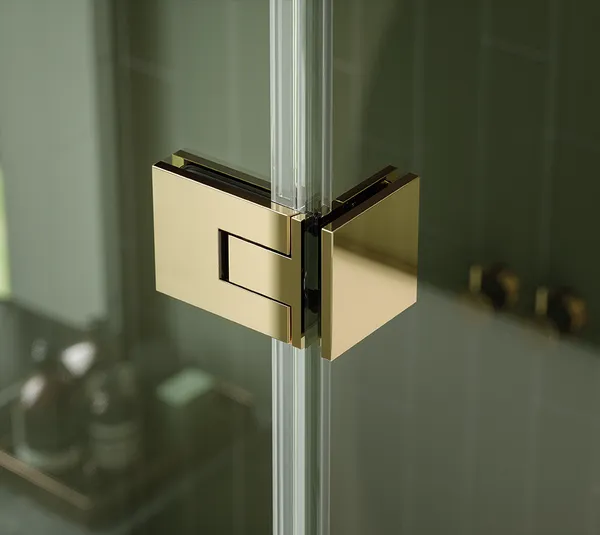

The Juna® 90° glass-wall angle connector for connecting fixed glass side panels to a wall. Simple glass drill holes are required for this.

About the product series Juna®:
Developed and designed by Bohle, the Juna® shower door hinge combines aesthetics and functionality with quality and "Made in Germany" manufacturing. We therefore offer a voluntary five years manufacturer's warranty on the Juna® shower door hinge series. Minimal gap dimensions and no visible screws emphasise the high quality of the swing door fitting. Juna also makes installation easier in a number of ways: the zero position adjusting screw is easy to reach and can therefore be conveniently set. Thanks to the innovative clamping technology, the hinge pin is not damaged by the locking screw - for millimetre-precise adjustment of the zero position. The clamping screws and the zero-position fixing screw have uniform screw heads, which can be tightened quickly with just one tool. The centred mounting plate ensures optimal positioning of the cover cap. A stable plug-in connection guarantees its firm and precise fit. The high-quality brass and stainless steel components inside the hinge guarantee a long service life of the product. They also allow the hinges to bear up to 50 kg, which is confirmed by extensive tests with 100,000 test cycles as per DIN 14428:2015-09, section 5.5. Juna® shower door hinges generally also enable profile-free installation. However, the use of sealing profiles minimises water leakage. These must be interrupted in the hinge area. The series consists of 3 finishes and thus enables the realisation of a wide variety of installation options.

Show all Show less

Application note:
Please note the glass processing.

Your Advantages

Concealed screws
Various finishes available
Only glass drill holes required

Technical details

Angle

90°

Bore diameter

16 mm

Colour

Brass

Concealed wall fixings

Yes

Degree of gloss

Shiny

Flush

Glass thickness TSG

6 - 10 mm

Material

Brass

Mounting type

Glass-Wall

Package contents

1 Pair

Product series

Juna®

Rise/fall function

Screws on the belt concealed

Yes

Surface

PVD coated

Surface treatment

Polished

Show all Show less

Scope of supply

1 Pair

Downloads

pdf

Instructions

Maintenance and Care Instructions

PDF

Instructions

BO54103xx - Juna - Corner Clamp - Glass-Wall 90° - Instruction Manual

Drawings

jpg


jpg


jpg


jpg


jpg


jpg


jpg


For more drawings please log in:
