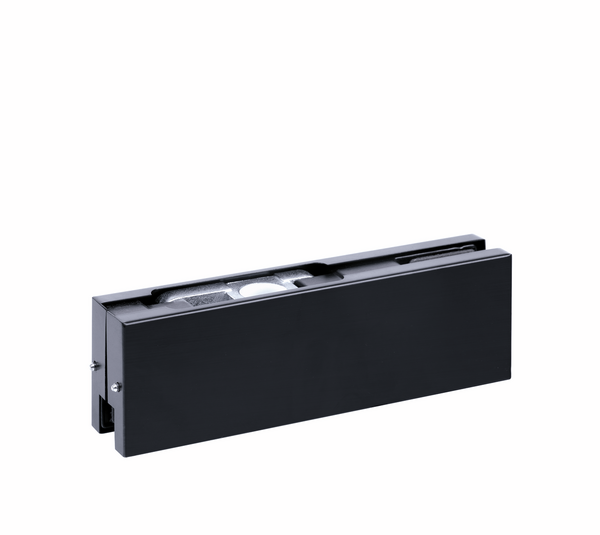

PT 20 top patch fitting
PT 20 top patch fitting

PT 20 top patch fitting

Product number: BO5214264B

Description

The PT 20 patch fitting has a plastic insert for a Ø 15 mm bolt, matching the PT 24 ceiling pivot and overpanel fittings. The pivot point can be set to 55 or 65 mm.

The narrow fittings with stainless steel cover caps, which are mounted in the corners of the door, allow a great deal of transparency when designing rooms with glass walls. Whether single or double doors, the combination with overpanels and/or side panels... there are many ways to create a bright and open atmosphere with a room divider in private, commercial or public rooms. The door can be either swing or with a stop.

Application note:
Please use the following combinations of inserts for the following glass thicknesses: 2 x 2+1 mm for 8 mm glass, 2 x 2 mm for 10 mm glass, 2 x 1 mm for 12 mm glass.

Your Advantages

  • Can also be used as a single-action door
  • Can be used DIN left and DIN right

Technical details

Colour
Black
Colour standard
RAL 9005
Degree of gloss
Satin finish
Glass thickness TSG
8 - 12 mm
Material
Stainless steel V2A
Package contents
1 Piece
Surface
Powder coated

Downloads

pdf
Plannings Aids
All-glass systems - Application examples

Drawings

jpg
jpg
jpg
