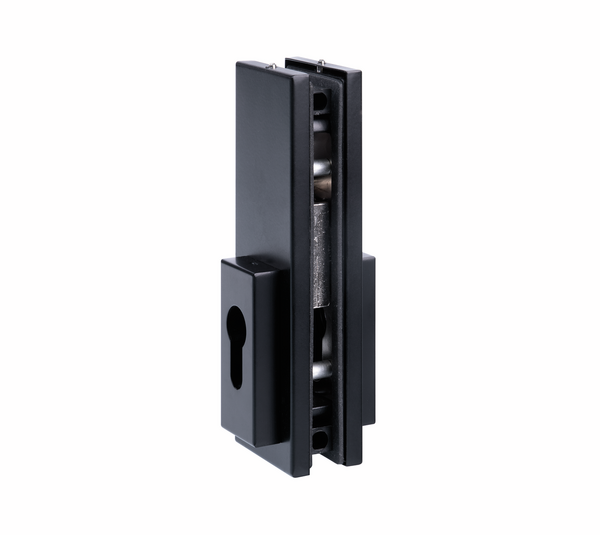

US 20 centre lock, flat bolt

Product number: BO5214281B

Description

The US 20 centre lock with flat bolt and PZ rosette on both sides is fitted in the centre area of the door.



For double doors the passive door should be bolted independently.

Application note:
Please use the following combinations of inserts for the following glass thicknesses: 2 x 2+1 mm for 8 mm glass, 2 x 2 mm for 10 mm glass, 2 x 1 mm for 12 mm glass.

Your Advantages

  • Exchangeable profile cylinder

Technical details

Colour
Black
Colour standard
RAL 9005
Cylinder length
30/30
Degree of gloss
Satin finish
Glass thickness TSG
8 - 12 mm
Lockout
17 mm (1-turn)
Lock type
Profile cylinder
Material
Stainless steel V2A
Surface
Powder coated
Type of key
Individual

Scope of supply

1 Piece
Lock with PZ rosette
1 Piece
Profile cylinder
4 Pieces
Key

Downloads

pdf
Plannings Aids
All-glass systems - Application examples

Drawings

jpg
jpg
jpg
