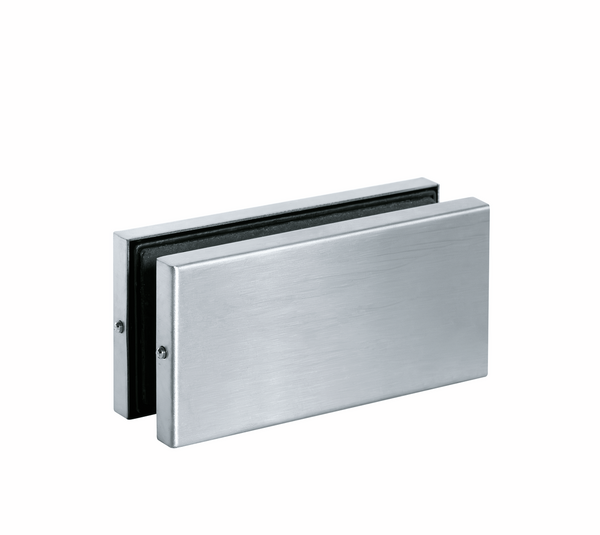

PT 70 overpanel connector

PT 70 overpanel connector

Product number: BO5214299B

Description

The PT 70 overpanel connector is used for the stable connection of two overpanels within an all-glass system.



Application note:
Please use the following combinations of inserts for the following glass thicknesses: 2 x 2+1 mm for 8 mm glass, 2 x 2 mm for 10 mm glass, 2 x 1 mm for 12 mm glass.

Your Advantages

  • Elegant look

Technical details

Colour
Black
Colour standard
RAL 9005
Degree of gloss
Satin finish
Glass thickness TSG
8 - 12 mm
Material
Stainless steel V2A
Package contents
1 Piece
Surface
Powder coated

Drawings

jpg
jpg
jpg
