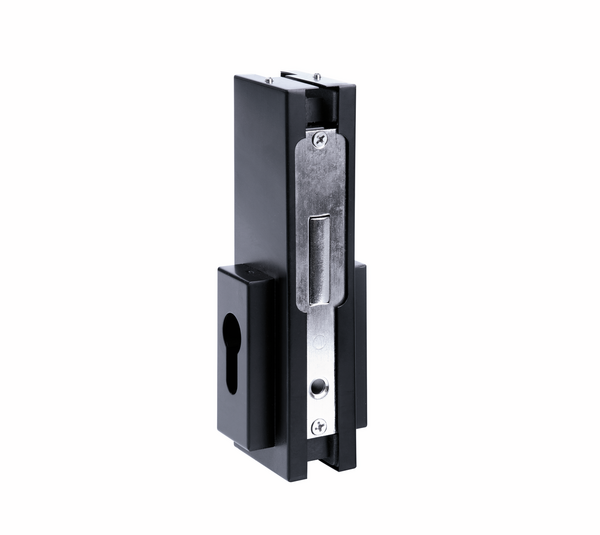

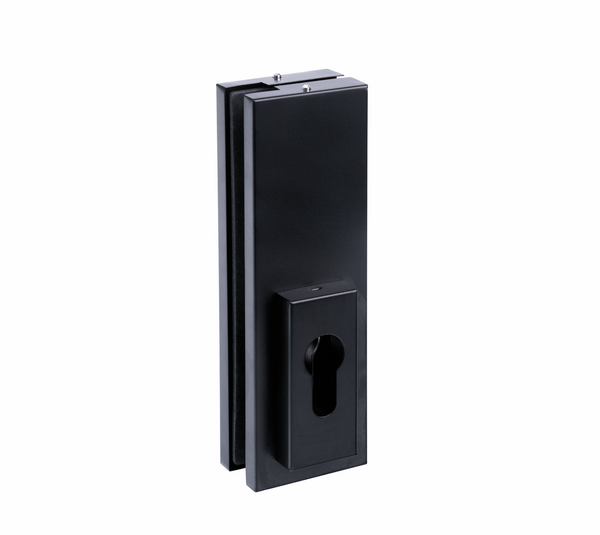

US 10 Corner lock, flat bolt, profile cylinder
US 10 Corner lock, flat bolt, profile cylinder
US 10 Corner lock, flat bolt, profile cylinder
US 10 Corner lock, flat bolt, profile cylinder

US 10 Corner lock, flat bolt, profile cylinder

Product number: BO5214280B

Description

The US 10 corner lock with flat bolt and PZ rosette on both sides can be installed in the lower as well as in the upper corner area of the door



Application note:
Please use the following combinations of inserts for the following glass thicknesses: 2 x 2+1 mm for 8 mm glass, 2 x 2 mm for 10 mm glass, 2 x 1 mm for 12 mm glass.

Your Advantages

  • Exchangeable profile cylinder

Technical details

Colour
Black
Colour standard
RAL 9005
Cylinder length
30/30
Degree of gloss
Satin finish
Glass thickness TSG
8 - 12 mm
Lockout
17 mm (1-turn)
Lock type
Profile cylinder
Material
Stainless steel
Surface
Powder coated
Type of key
Individual

Scope of supply

1 Piece
Lock with PZ rosette
1 Piece

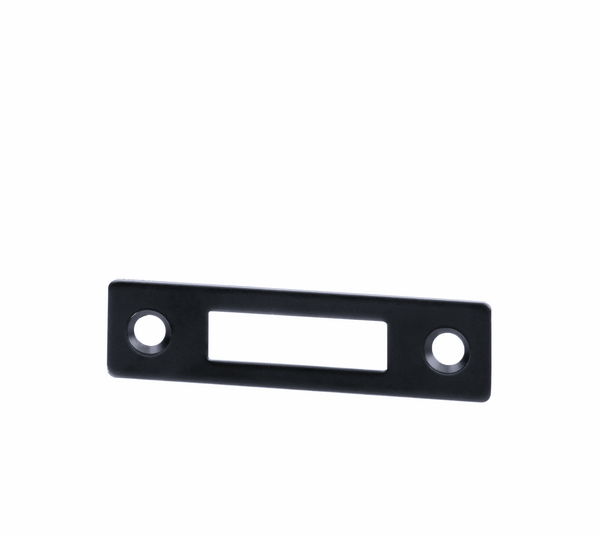

Strike plate
1 Piece
Profile cylinder
4 Pieces
Key
