VetroMount® - glass balustrade system
Thanks to its four profile variants, the tested and versatile VetroMount® glass balustrade system is suitable for a great variety of installation settings. The General Building Inspection Test Certificate (AbP) underlines the high-quality standards. The system is based on an intelligent fastening mechanism with patented glass bearings. They enable the continuous adjustment of glass panes, which can subsequently be fixed in the profile, granting 100% safety. The installation is quick and cost-efficient.
Installation – saving up to 50% of your time
Fast. Simple. Safe.
- Save time thanks to pre-drilled profiles and only a few fixing points
- Patented glass fixing in three quick steps
- Continuous adjustment of glass panes
- Installation from the inside (opposite the fall side)
- Quick disassembly of the whole pane with a standard screwdriver
Safely anchor the glass pane in 3 steps – thanks to the intelligent cable-tie principle

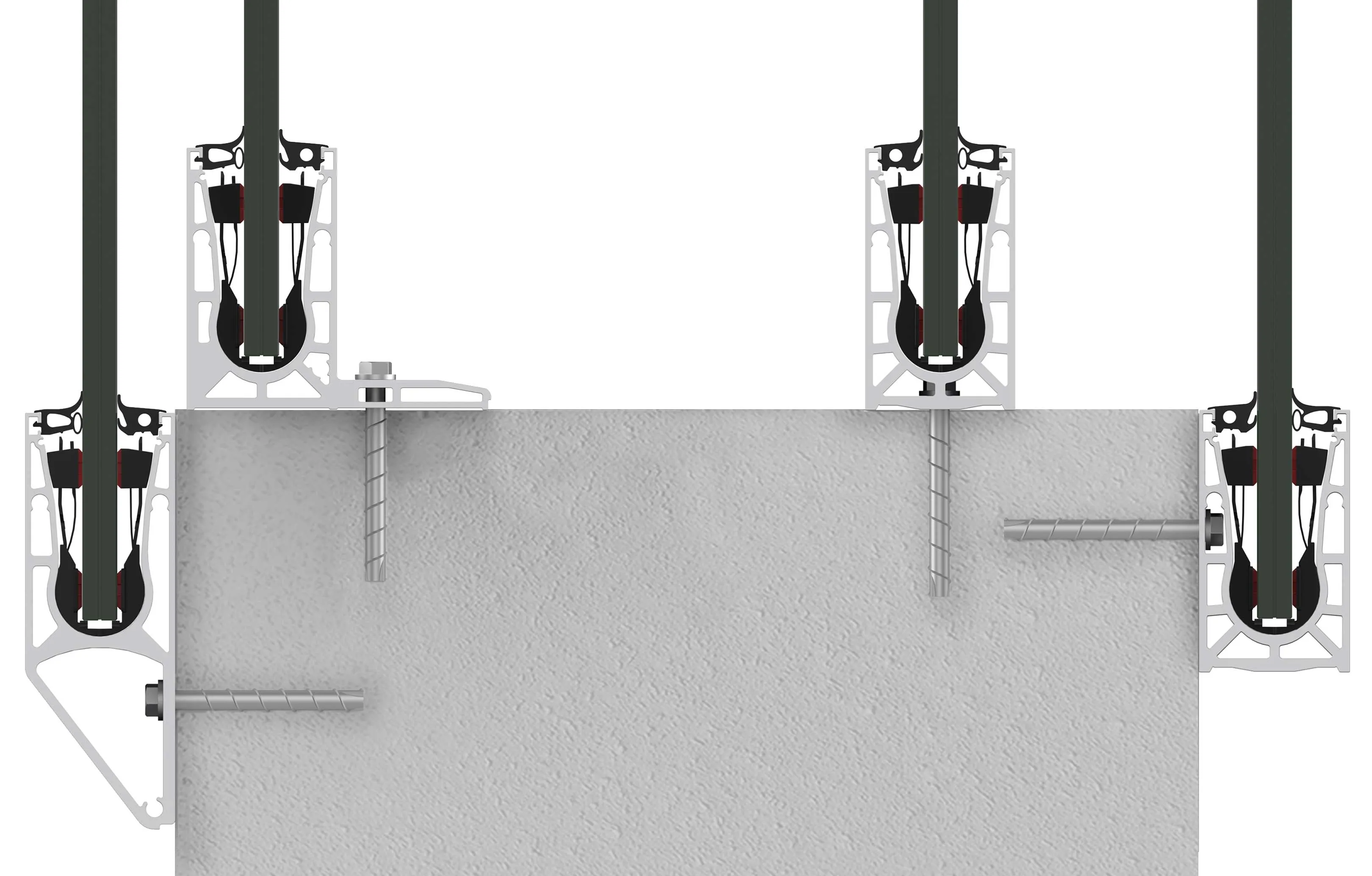

Profile variants
Our favourite colour? Any colour!
Increased flexibility for your project
Cover profiles
Customise the parapet railing depending on individual and architectural requirements by cladding the basic profiles with an optional cover profile. Just like the end caps, they are available in aluminium and stainless steel look.
Structural connection profiles
These profiles for structural connection purposes offer classy cladding options for your setting. Different opening widths of 3, 10 and 20 mm allow for the use of steel sheets as well as glass or wood plates. Thank to its simple clip-on mechanism, the profiles can be mounted very easily.
Floor connection profiles
Use the structural connection profiles to create the optimum transition between the profile and the floor structure. They are simply attached to the basic profile and as a result improve the visual appearance of the entire building project.
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Length: 2,500 mm
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Length: 2,500 mm
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Length: 2,500 mm
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Length: 5,000 mm

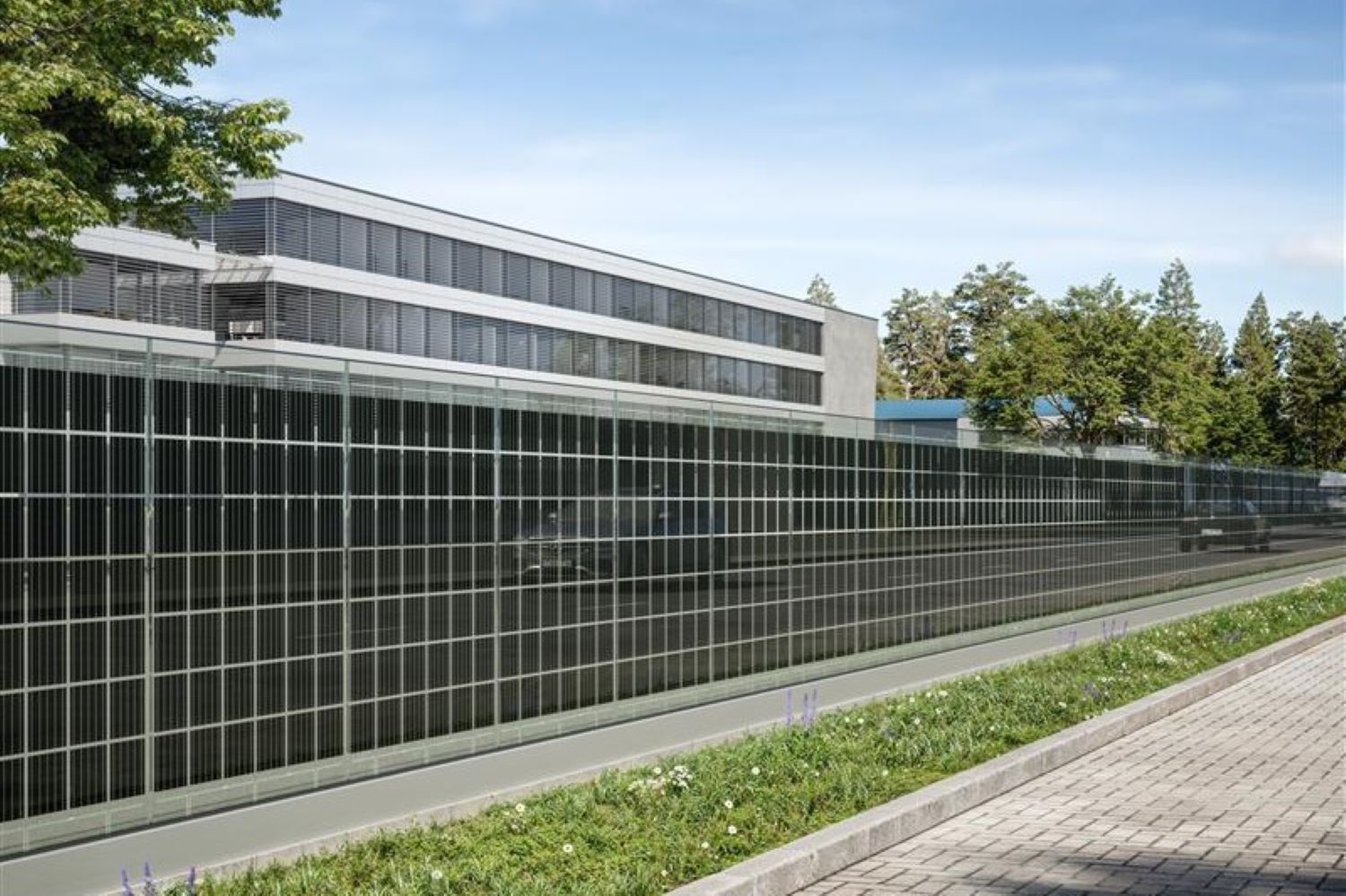

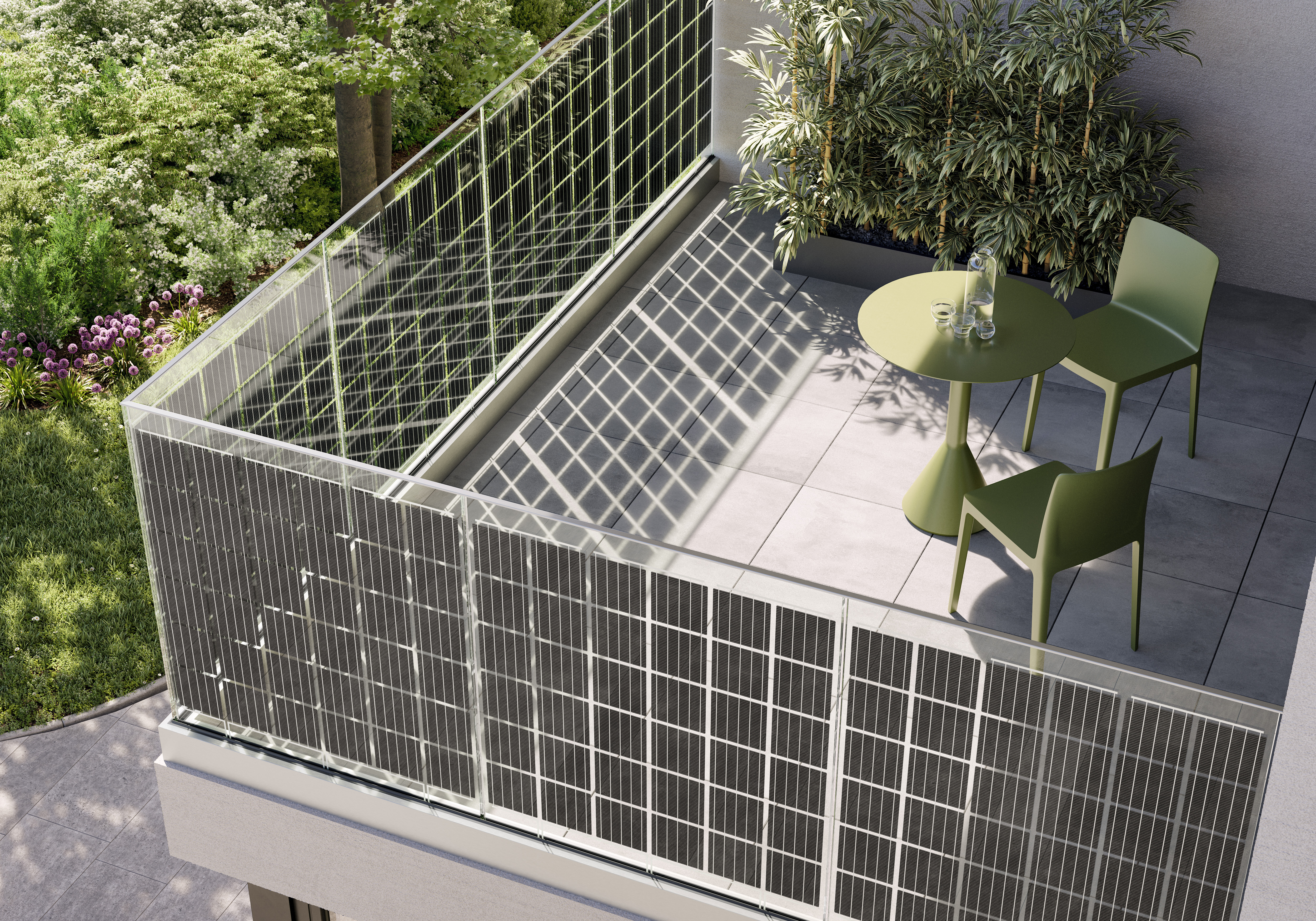

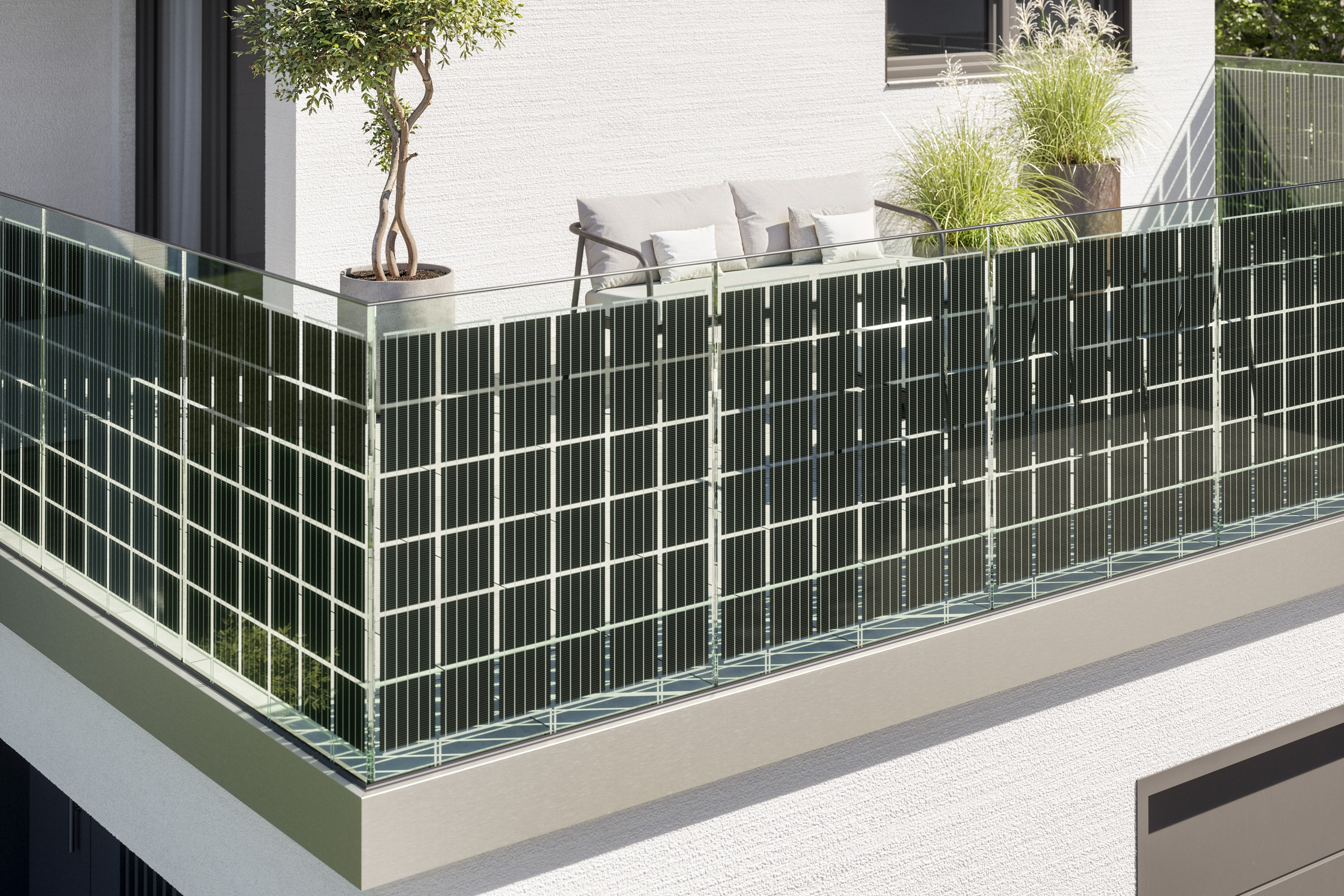

Photovoltaic application
VetroMount® provides an answer to the question of how the use of renewable energies can be combined with glass fittings - without compromising on appearance. Because where glass panes serve as railings, the use of photovoltaics is also possible. But where to put the cabling and junction boxes? Where conspicuous handrails were previously required, which also had to be connected to the building due to the cables, Bohle's basic profile offers an optimum cabling option: perfectly concealed, yet accessible at all times and can be realised with discreet edge protection.
- Easier installation: cables and connections are installed in the floor profile
- More elegant look: discreet edge protection without visible cable ducts and power connection possible via floor profiles
- Safety: AbP and approval as fall protection available end of 2024
- Higher energy recovery thanks to 1.30 m glass height
- Glass thickness: 13.52 mm
- Length: 5,000 mm
- Glass thickness: 13.52 mm
- Length: 5,000 mm
- Glass thickness: 12.76 - 13.52 mm
- Material thickness: 5 mm
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Model: Without cover profiles
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Model: With cover profiles
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Model: Without cover profiles
- Side: left
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Model: With cover profiles at the top
- Side: left
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Side: left
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Side: left
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Model: With cover profiles
- Side: left
- Glass thickness: 19 mm
- Length: 5,000 mm
- Glass thickness: 19 mm
- Length: 5,000 mm
- Glass thickness: 16.76 mm
- Length: 2,500 mm
- Glass thickness: 16.76 mm
- Length: 2,500 mm
- Glass thickness: 12.76 mm
- Length: 5,000 mm
- Glass thickness: 12.76 mm
- Length: 5,000 mm
- Glass thickness: 20.76 mm
- Length: 5,000 mm
- Glass thickness: 20.76 mm
- Length: 2,500 mm
- Glass thickness: 17.52 mm
- Length: 2,500 mm
- Glass thickness: 16.76 mm
- Length: 5,000 mm
- Glass thickness: 15 mm
- Length: 2,500 mm
- Glass thickness: 15 mm
- Length: 2,500 mm
- Glass thickness: 21.52 mm
- Length: 5,000 mm
- Glass thickness: 21.52 mm
- Length: 5,000 mm
- Glass thickness: 19 mm
- Length: 2,500 mm
- Glass thickness: 19 mm
- Length: 2,500 mm
- Glass thickness: 16.76 - 17.52 mm
- Material thickness: 10 mm
- Colour scheme: Aluminium colour C0
- Colour scheme: Aluminium colour C0 anodised E6 stained
- Model: With cover profiles at the top
- Side: right
- Glass thickness: 20.76 - 21.52 mm
- Material thickness: 5 mm
Test certificates
Comprehensively certified
Let´s play it safe and go for an all-glass balustrade like VetroMount®, with comprehensive certifications! For a glass balustrade system to call itself “tested”, it must fulfil numerous requirements, which, among others, can be taken from DIN 18008-4 “Glass in Building – Design and construction rules“. Part 4 of this standard particularly deals with additional requirements for fall protection glazing. They include, for example, permissible glass types, cut-outs, drill holes or types of storage. On the following page, you will find the right test certificate for your country and your installation.
Case Studies
Berlin Pier 61|64
A 2,500-metre VetroMount® balustrade provides boundless transparency to this nine-storey building combining a hotel, restaurants and rental appartments from 2021. Located directly by the water, Pier 61|64 offers breathtaking views of the Spree River and its surroundings.
