VetroMount® Profile
Realise your project with the tested and flexible VetroMount® railing system. With seven profile variants, it offers a wide range of installation scenarios. The system is based on an intelligent fixing mechanism with patented glass clamps, allowing the panels to be adjusted infinitely. The glass can then be fixed securely in the profile, easily and with 100% reliability. The best part: you install quickly and cost-effectively. The general building authority test certificate (AbP) also certifies the high quality standards.

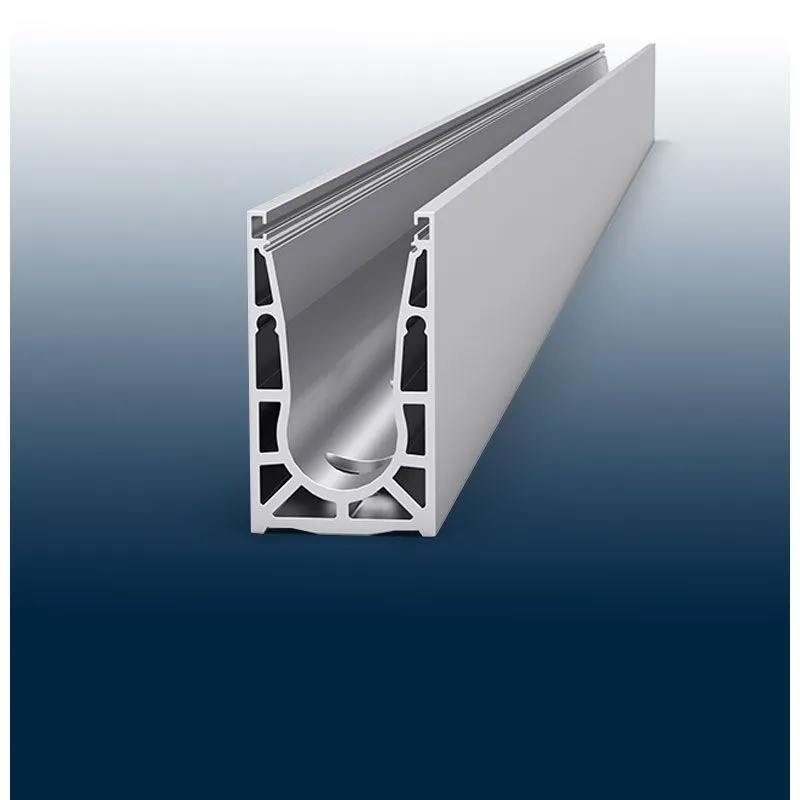

VetroMount® FLOOR PROFILE U
The Floor Profile U is made of extruded aluminium, stands out due to its high-quality appearance, and is tested for both steel and concrete. We recommend intermediate connectors for fast drainage – the connectors are fixed in between the floor profiles with a simple plug connection.
- Tested fixing to concrete and steel
- Tested for parapets
- Tested for enamelled glass
- Screw usually required only every 400 mm
- Installation with and without cover profile
- Floor connection and building connection profiles available
- Glass heights up to 1300 mm
- Glass width from 300 mm possible
- Optional drainage with the aid of intermediate connectors
- Aluminium with protective anodised layer
- LED illumination can be integrated optionally

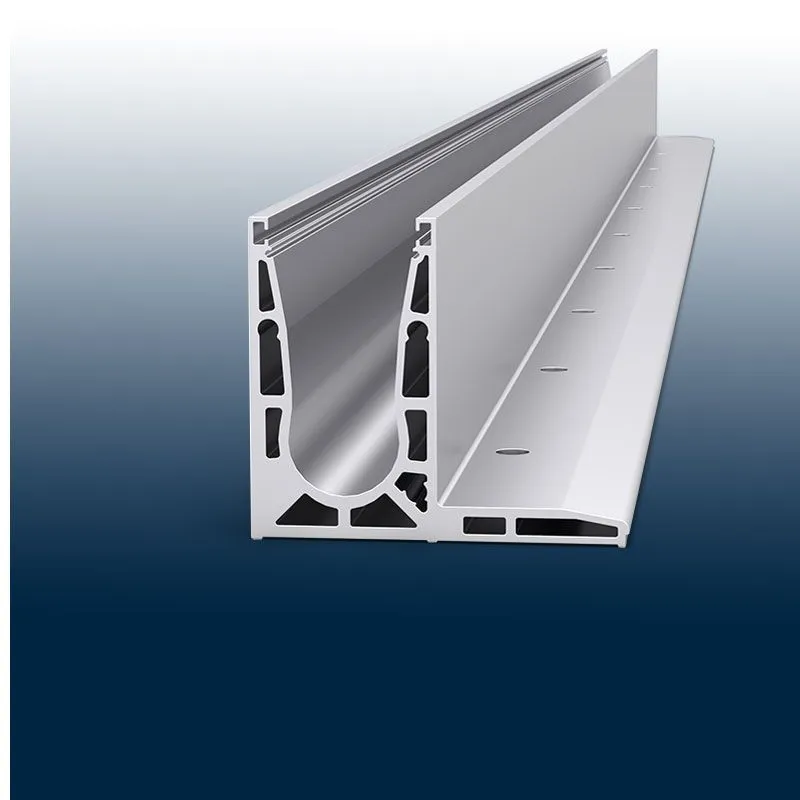

VetroMount® FLOOR PROFILE F
The Floor Profile F is ideally suited for creating a flush finish on the construction edge. For achieving a flush floor edge, we recommend applying a floor screed.
- Tested fixing to concrete and steel
- Tested for parapets
- For a flush finish of the edge
- Screw usually required only every 400 mm
- Installation with and without cover profile
- Floor connection and building connection profiles available
- Glass heights up to 1300 mm
- Glass width from 300 mm possible
- Aluminium with protective anodised layer
- LED illumination can be integrated optionally

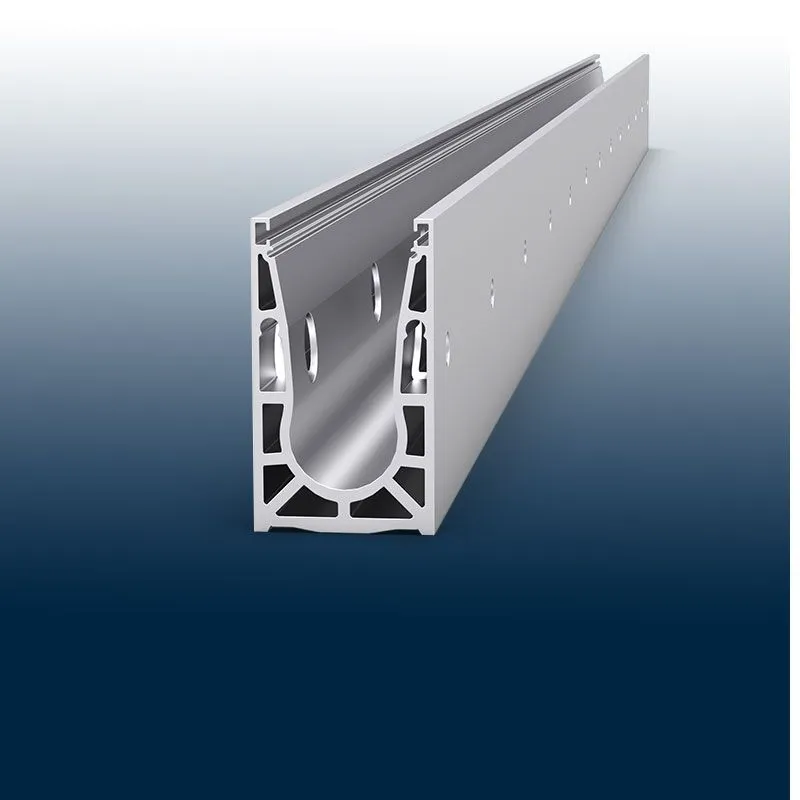

VetroMount® SIDE PROFILE U
The Side Profile U is especially suited for staircases. It has pre-drilled holes on the side, every 200 mm, saving valuable installation time. The drill holes can be concealed with the aid of a cover profile.
- Tested fixing to concrete and steel
- Tested for parapets
- Tested for enamelled glass
- Installation with and without cover profile
- Floor connection and building connection profiles available
- Screw required every 200 mm
- Glass heights up to 1300 mm
- Glass width from 300 mm possible
- Aluminium with protective anodised layer
- LED illumination can be integrated optionally

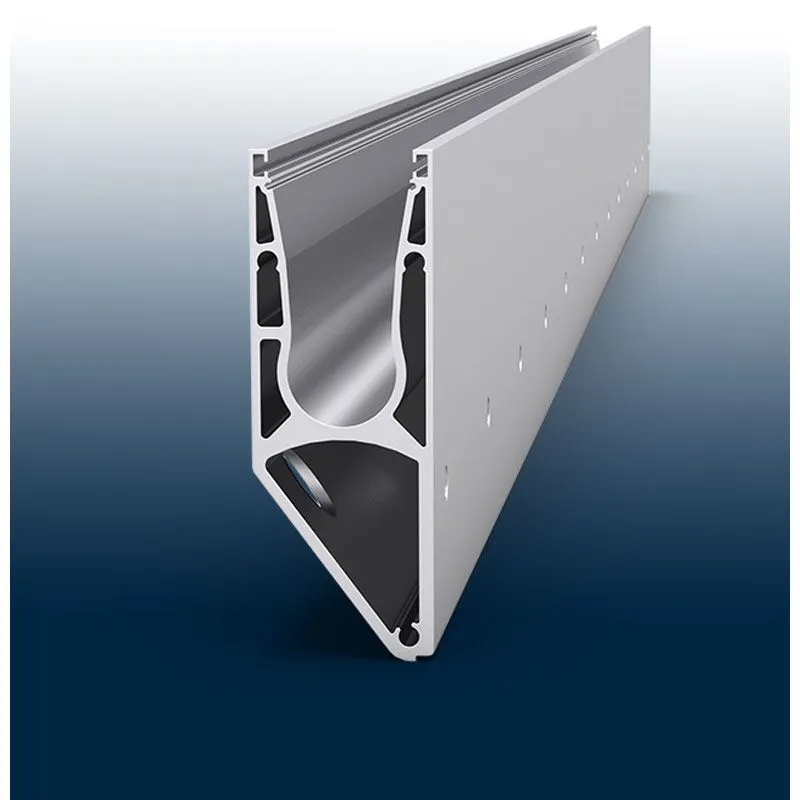

VetroMount® SIDE PROFILE Y
The Side Profile Y is ideally suited for creating a flush finish on the construction edge. The low screw-on point of the profile greatly reduces the workload, especially when carrying out installations in old buildings.
- Tested fixing to concrete and steel
- Tested for parapets
- Screw required every 200 mm
- Installation with and without cover profile
- Floor connection and building connection profiles available
- Glass heights up to 1300 mm
- Glass width from 300 mm possible
- Aluminium with protective anodised layer
- LED illumination can be integrated optionally

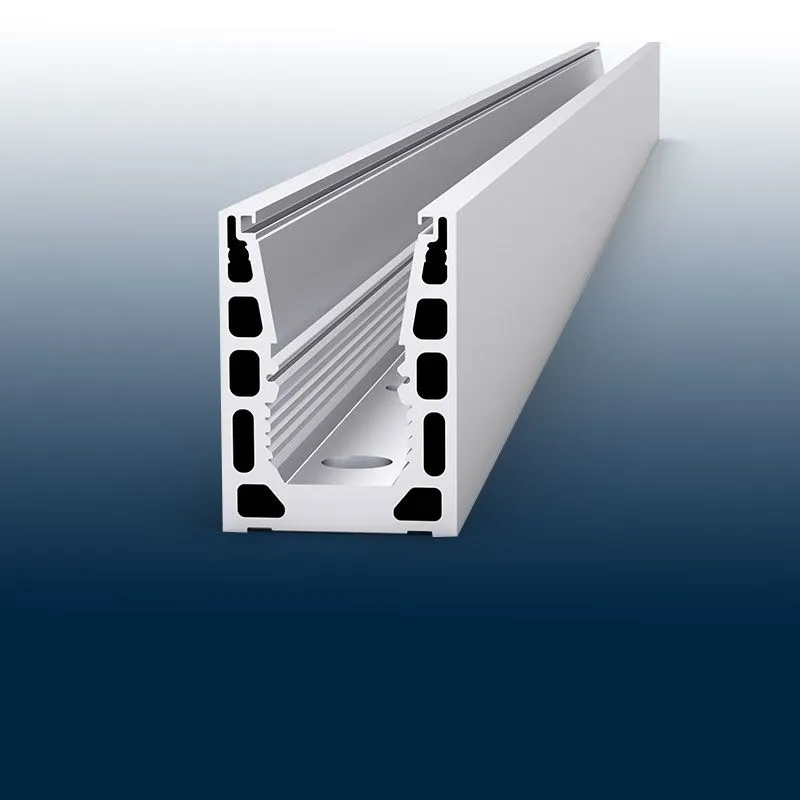

VetroMount® Floor Profile U Heavy Duty
All-glass balustrades in public areas, assembly venues and coastal regions are subject to special requirements regarding line load. Where horizontal imposed loads between 1 and 2 kN are required, VetroMount® Heavy Duty is the system of choice. This powerhouse consists of a 95 mm wide Floor Profile U and specially designed glass clamps to securely fix 21.52–25.52 mm glass panels at a maximum height of 1300 mm. The best part: despite the doubled line load of 2 kN, installation is still completed in no time. This is thanks to the floor fixing with concrete screws and the proven VetroMount® glass clamps. Thanks to the ingenious glass clamping, installation is carried out from the fall-protection side, the glass panels are infinitely adjustable, and in the event of glass breakage they can be quickly removed. VetroMount HD is specially designed for public areas such as shopping centres, auditoriums, railway stations and stadiums that are temporarily exposed to higher loads.
All-glass balustrades in public areas, assembly venues and coastal regions are subject to special requirements regarding line load. Where horizontal imposed loads between 1 and 2 kN are required, VetroMount® Heavy Duty is the system of choice. This powerhouse consists of a 95 mm wide Floor Profile U and specially designed glass clamps to securely fix 21.52–25.52 mm glass panels at a maximum height of 1300 mm. The best part: despite the doubled line load of 2 kN, installation is still completed in no time. This is thanks to the floor fixing with concrete screws and the proven VetroMount® glass clamps. Thanks to the ingenious glass clamping, installation is carried out from the fall-protection side, the glass panels are infinitely adjustable, and in the event of glass breakage they can be quickly removed. VetroMount HD is specially designed for public areas such as shopping centres, auditoriums, railway stations and stadiums that are temporarily exposed to higher loads.
VetroMount® Floor Profile U Heavy Duty
The Floor Profile U for top-mounted installation is made of extruded aluminium and impresses with its high-quality appearance. It has been tested on steel and concrete. For fast drainage, use the intermediate connectors, which are simply plugged in between the floor profiles.

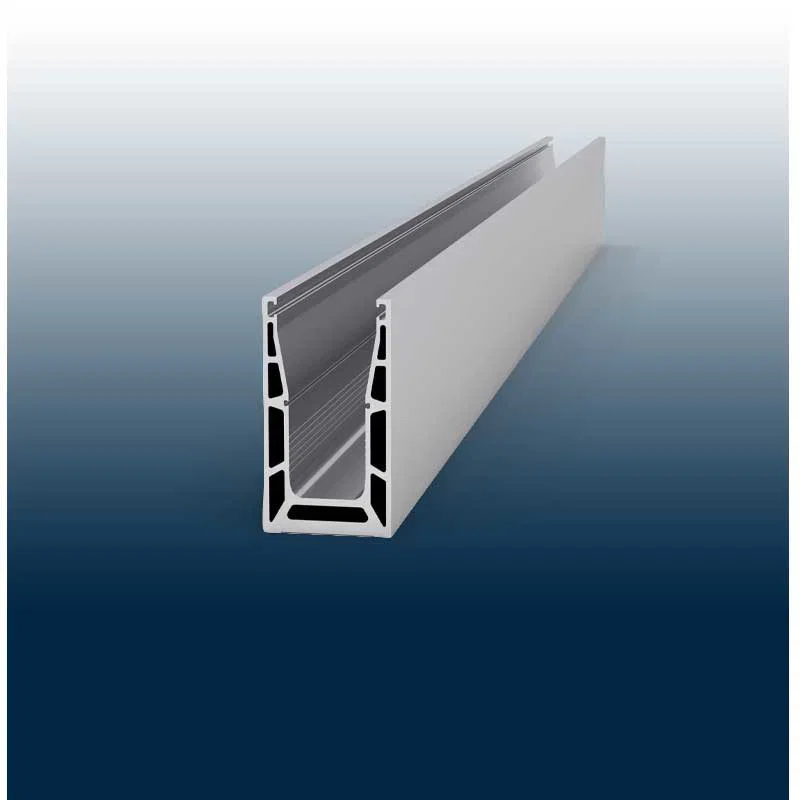

VetroMount® Slim Floor Profile U
The VetroMount® Slim floor profile U stands out thanks to its high-quality, slender appearance – ideal for fall-protection glass balustrades in private homes, on parapets or as a pool surround. The extruded aluminium profile features a protective 25 µm anodised coating.
- Suitable for private indoor and outdoor use
- Tested fixing to concrete and steel
- Tested for parapets
- Cost-effective fixing using standard concrete screws
- Installation with or without a cover profile. Powder coating available in RAL colours.
- Special covers with anti-climb protection, designed specifically for pool surrounds
- The entire glass panel can be removed without damage for maintenance or replacement
- Line load 0.5 kN
- Glass heights of up to 1300 mm
- Glass widths from 300 mm possible
- Tested system

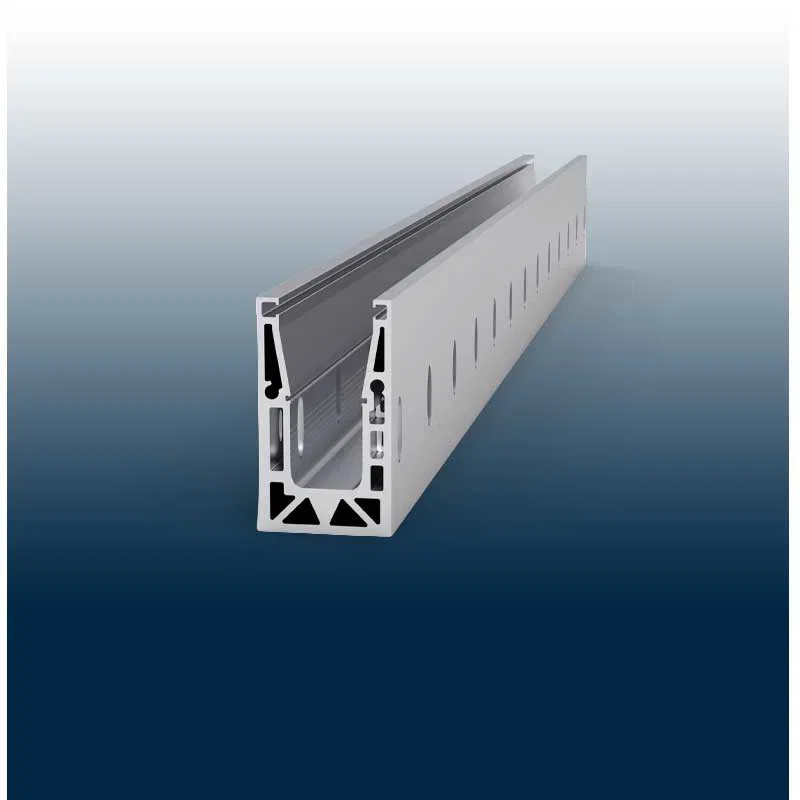

VetroMount® Slim side profile U
The VetroMount® Slim side profile U stands out thanks to its high-quality, slender appearance. Perfect for fall-protection glass balustrades in private homes (e.g. on stairs) or on parapets. It is pre-drilled on the side every 200 mm, saving time during installation. The drill holes can be concealed with a cover profile. The extruded aluminium profile features a protective 25 µm anodised coating.
- Suitable for private indoor and outdoor use
- Tested fixing to concrete and steel
- Tested for parapets
- Cost-effective fixing using standard concrete screws
- Installation with or without a cover profile. Powder coating available in RAL colours.
- Wall and floor connection profiles available
- The entire glass panel can be removed without damage for maintenance or replacement
- Line load 0.5 kN
- Glass heights of up to 1300 mm
- Glass widths from 300 mm are possible
- Custom color finishes according to the RAL system are available
- Tested system
