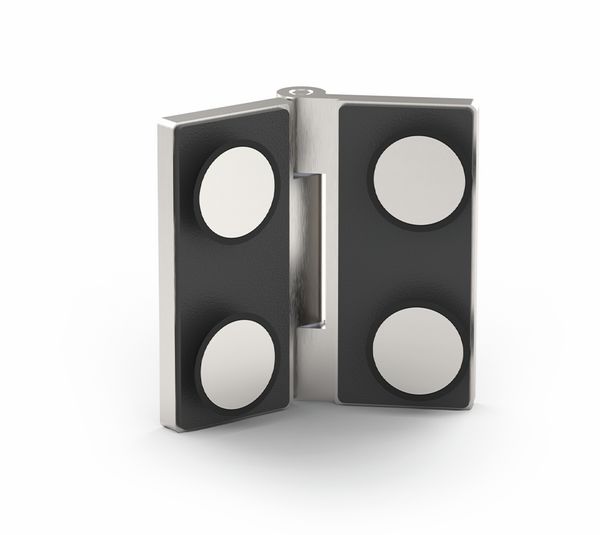

The flush-mounted Madrid FM rebate shower door hinge has a load-bearing capacity of 40 kg. Doors up to max. 1 x 2 m can be realised. With 135-180° glass-glass installation, the hinge can be used universally and is designed for both space-saving 135° corner showers and 180° folding glass screens.
The hinge has a flush, adjustable glass fastening, which makes it easy to clean the glass. All screw connections on the hinge are concealed so that nothing detracts from the high-quality appearance. It is designed for right-angled corner and recess showers. The sealing profiles can be guided through the hinge. No glass cut-outs are required for installation, only glass countersink drill holes.
About the product series Madrid:

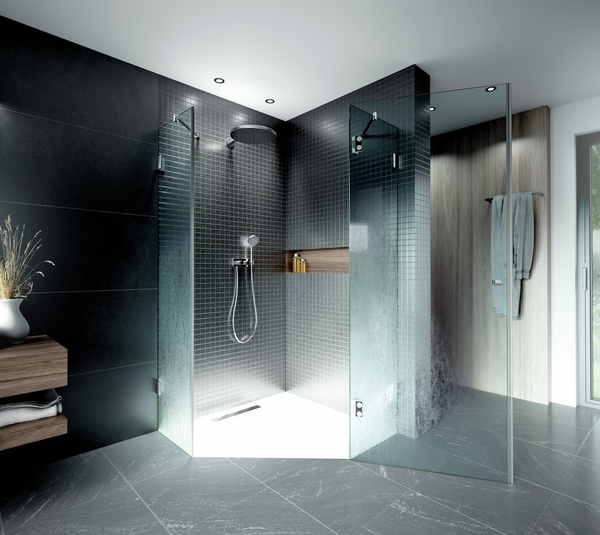

Madrid shower door fittings are an elegant solution for glass shower doors. The portfolio consists of numerous variants and is therefore suitable for almost all types of installations. A true all-rounder. The hinges are designed as single-action door hinges and enable the sealing profiles to be guided through the hinge. The design is characterised by its straight lines and is very popular in modern bathrooms. No disruptive screw fittings are visible. The Madrid shower door hinge enhances any glass shower!
