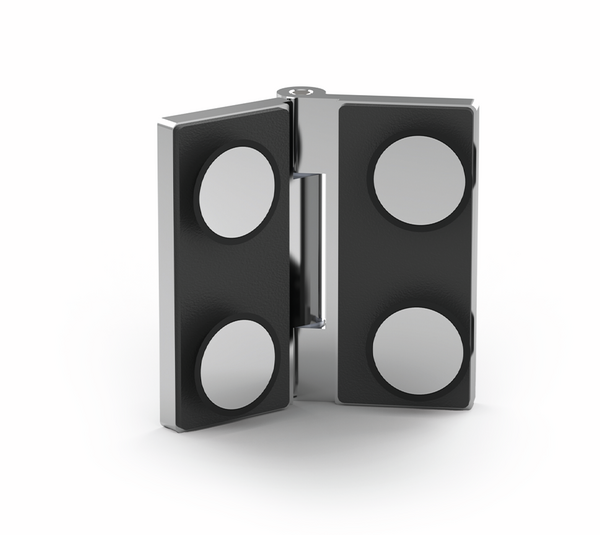

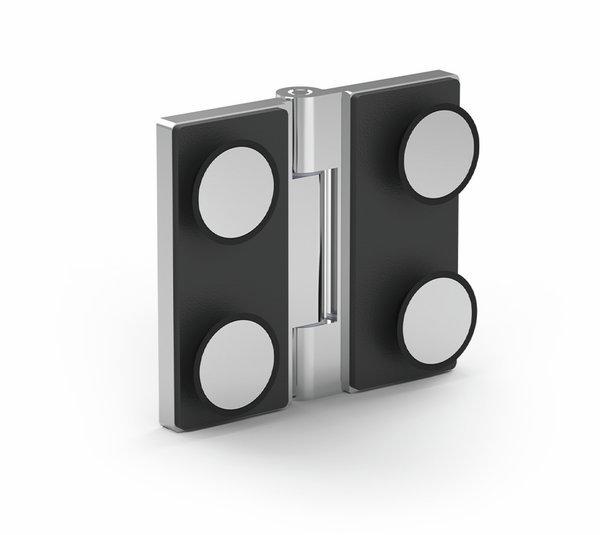

Shower door hinge Madrid FM, glass-glass 135-180°

Shower door hinge Madrid FM, glass-glass 135-180°

Choose Colour scheme

Product number: BO5216219

Description

The flush-mounted Madrid FM rebate shower door hinge has a load-bearing capacity of 40 kg. Doors up to max. 1 x 2 m can be realised. With 135-180° glass-glass installation, the hinge can be used universally and is designed for both space-saving 135° corner showers and 180° folding glass screens.

The hinge has a flush, adjustable glass fastening, which makes it easy to clean the glass. All screw connections on the hinge are concealed so that nothing detracts from the high-quality appearance. It is designed for right-angled corner and recess showers. The sealing profiles can be guided through the hinge. No glass cut-outs are required for installation, only glass countersink drill holes.

About the product series Madrid:
Madrid shower door fittings are an elegant solution for glass shower doors. The portfolio consists of numerous variants and is therefore suitable for almost all types of installations. A true all-rounder. The hinges are designed as single-action door hinges and enable the sealing profiles to be guided through the hinge. The design is characterised by its straight lines and is very popular in modern bathrooms. No disruptive screw fittings are visible. The Madrid shower door hinge enhances any glass shower!

Show all Show less

Your Advantages

Concealed screws
Only glass countersink drill holes required
Shower door seals can be passed through the hinge
Flush mounting
Various finishes available

Technical details

Concealed wall fixings

Yes

Degree of gloss

Shiny

Door type

Stop door

Flush

Yes

Glass processing required

Yes

Glass thickness TSG

8 - 10 mm

Inward / outward opening

Opening outwards

Material

Brass

Max. door height

2,000 mm

Max. door weight per pair

40 kg

Max. door width

1,000 mm

Mounting type

Glass-Glass

Opening direction

DIN left and DIN right

Package contents

1 Piece

Product series

Madrid

Rise/fall function

Screws on the belt concealed

Yes

Self-closing function

Surface

Chrome-plated

Show all Show less

Downloads

pdf

Instructions

BO5216219-BO5216220-BO5216221-Madrid-FM-hinge-g-g-135-180-instruction-manual.pdf
