Description

The installation of the hinges does not require any milling or drilling work on the frame profile.

The easy-to-assemble hinge holders are simply pushed into the multi-function channel of the frame profile and the hinges are then fastened. The hinge holder is specially designed so that it cannot be inserted upside down, thus preventing time-consuming disassembly. The height of the door hinges can be adjusted at a later date.

Show all Show less

Application note:
The hinge mounting plates are pushed into the multi-function channel before the frame profile is fixed in the reveal or on the glass side panel. From a door height >2200 mm we recommend the use of 3 door hinges.

Your Advantages

  • No milling or drilling work on the frame profile
  • No incorrect installation possible
  • Free height positioning in the multifunction channel

Technical details

Colour
Stainless steel colour
Material
Stainless steel V2A (AISI 304)
Opening direction
Left, Right
Package contents
1 Set
Product series
FrameTec Select 2.0
Surface
Untreated

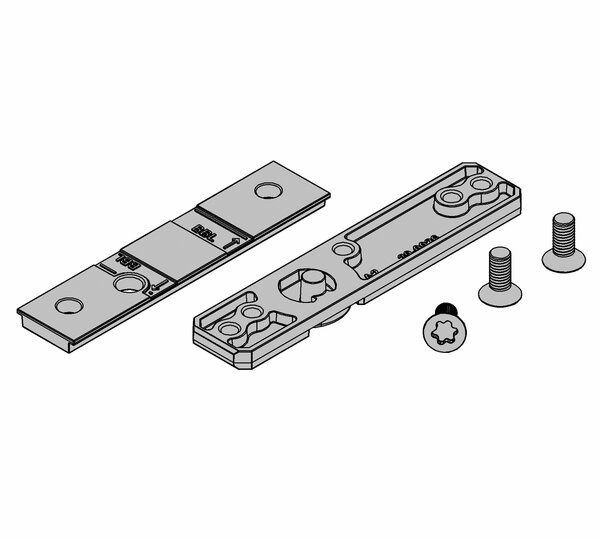

Scope of supply

1 Piece
Mounting plate
3 Pieces
M5 screw

Downloads

pdf
Product Data Sheet
BO5220820-Productdatasheet-EN.pdf

Drawings

jpg
jpg
jpg
For more drawings please log in:
