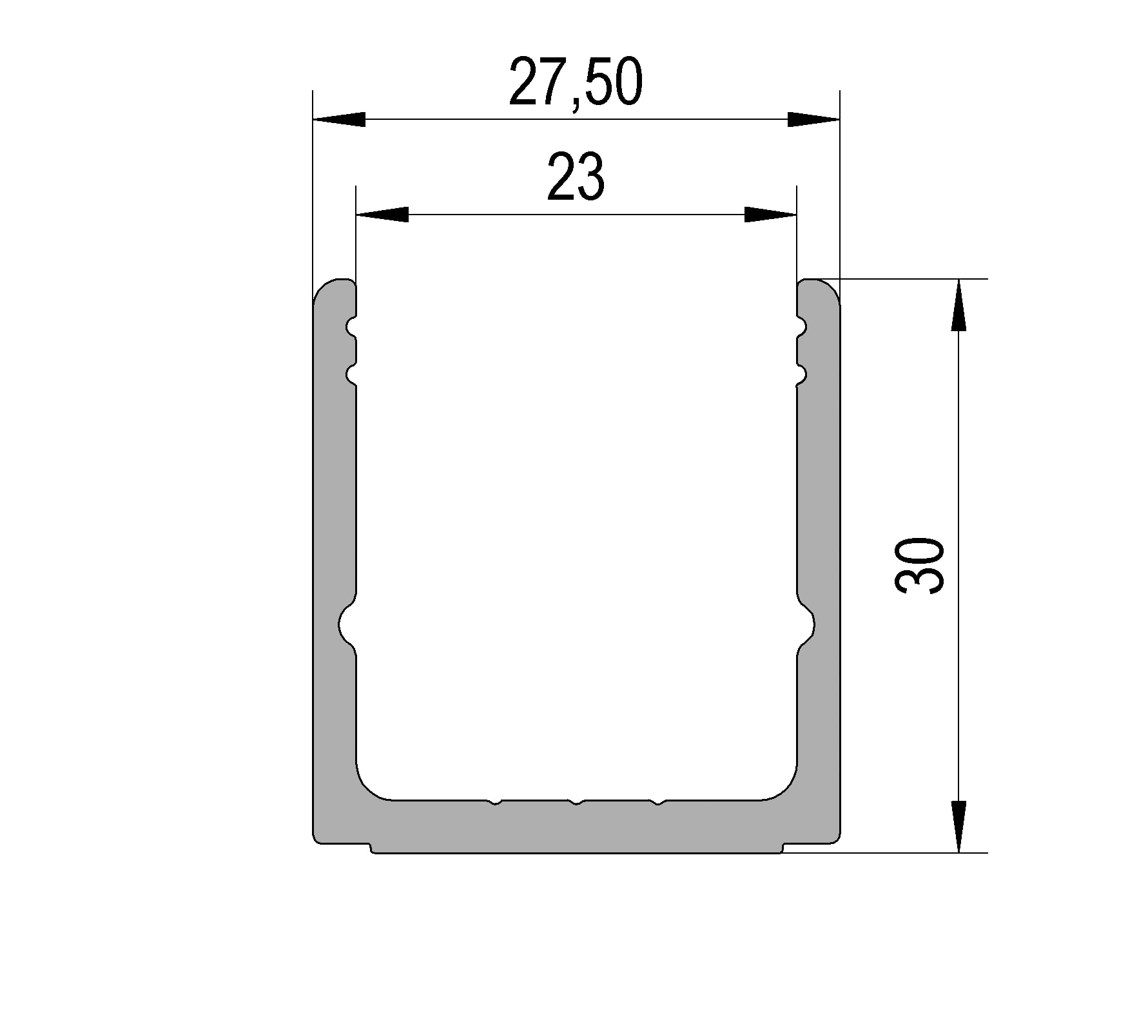

Frame profile one-piece
Frame profile one-piece

Frame profile one-piece

Product number: BO5201642
Freight forwarding

Description

With our one-piece and two-piece frame profiles, fast and cost-effective assembly is guaranteed. The glass is held in the upper, one-piece frame profile during assembly and is thus protected from dangerous tilting

For mounting on the wall and on the floor, we recommend the two-part frame profiles. Due to the use of high-quality plug-in seals, sealing with silicone is not necessary. With the matching cover caps, you create a high-quality finish to your room divider.

For plug-in seals matching the glass thickness, please refer to the installation instructions

Your Advantages

  • Simple clamp mounting
  • No glass processing required

Technical details

Colour
Aluminium colour
Colour standard
C0
Glass thickness
12 - 13.52 mm
Glass thickness LSG
13.52 mm
Glass thickness TSG
12 mm
Height
30 mm
Length
5,000 mm
Material
Aluminium
Material thickness
2.25 mm
Model
One-piece
Surface
Anodised
Surface treatment
E6 stained
Width
27.5 mm
Show all Show less

Downloads

pdf
Instructions
Wandanschluss-Klemmprofil - Clamp on frame profile - Instruction Manual

Drawings

jpg
pdf
BO-5201713N-5201714N-5201715N_00-C_Collection-Sealing_pdf.pdf
