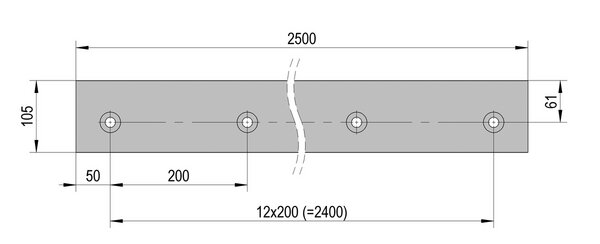

The VetroMount® Slim U-shaped side profile for surface mounting stands out thanks to its high-quality, elegant appearance. Perfect for fall-protection railings in private homes or as a parapet.
The VetroMount® all-glass balustrade system impresses with its high-quality appearance and simple installation, thanks to technically sophisticated components for glass support and alignment. Even long sections of balustrade can be installed in just a few simple steps, saving both time and money. All accessories, such as end caps, cover profiles, rubber spacers, etc., are available to complement the system. For indoor use, we recommend the following screws: Hilti HUS4-H concrete screw 10 x 100 (BO 5211160) or Fischer ULTRACUT FBS II concrete screw 10 x 85. For outdoor use, we recommend the following screws: Hilti HUS4-HR concrete screw 10 x 105 (BO 5211161) or Fischer ULTRACUT FBS II A4 US concrete screw 10 x 85.Using concrete screws eliminates the need to drive in expansion anchors.Important for installation: When using these in outdoor areas, particular attention must be paid to drainage and wind loads right from the planning stage. The General Building Inspection Test Certificate (AbP), as well as important information on structural stability and drainage, can be found in the “Downloads” section.
About the product series VetroMount:
Glass railing systems enable maximum transparency in both interior and exterior construction. At the same time, installation should be both safe and intuitive and as time-saving as possible. Thanks to a patented safety mechanism and only a few fastening points for floor mounting, the VetroMount® tested railing system from Bohle meets exactly these expectations: It is safe to mount and at the same time extremely easy and cost-efficient to install.
Show allShow less
Application note:
Test report or country-specific certificate and further information in the downloads.
Your Advantages
Three steps to the perfect railing: insert, align, secure
Intuitive and time-efficient assembly
Suitable for indoor and outdoor use
Cost-effective fastening
Simple concrete screws are sufficient
Entire pane can be dismantled without damage in the event of an inspection
Spar load 0.5 kN
Tested system - Please note the country-specific certificate
