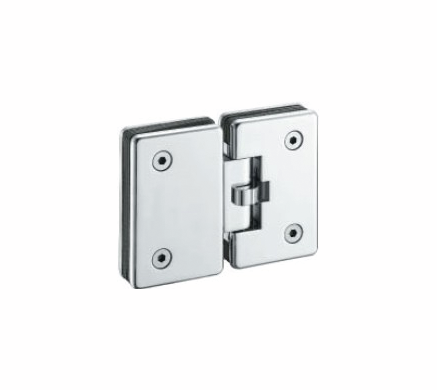

Self Centering Hinge 180° Glass/Glass 304SSS
Self Centering Hinge 180° Glass/Glass 304SSS

Self Centering Hinge 180° Glass/Glass 304SSS

Product number: SA5210380

Description

The swing door hinges Bohle with self-closing function allow doors to be opened without much effort, as well as closing the door smoothly. With the adjustable zero position, you can quickly and easily bring the door into its ideal position

The door hinges are suitable for interior doors in the private and medium-frequented commercial sector. Bohle swing door hinges are tested according to DIN EN 18263 with 300,000 closing cycles.

To prevent the door from opening too far two doorstops must be used as end stops.

Application note:
Bohle swing door hinges must not be used on a single-action door, as using the door without swinging will damage the door hinge. When using the door hinges with laminated safety glass, we recommend using a pressure-neutral film and additionally gluing the door hinges to the glass. We do not recommend using the locks and hinges in swimming pools and brine baths.

Your Advantages

  • Tested in accordance with DIN 18263 with 300,000 cycles
  • Can be used DIN right and DIN left

Technical details

Adjustable zero position
No
Adjustable zero position (+/-)
0°
Colour
Stainless steel
Concealed wall fixings
No
Door height
2,200 mm
Door type
Swing door
Door width
900 mm
Glass thickness TSG
8 - 12 mm
Hold position
90°
Material
Stainless steel
Max. door weight per pair
50 kg
Opening angle
90°
Opening direction
DIN left and DIN right
Package contents
1 Piece
Rise/fall function
No
Self-closing from
70°
Self-closing function
Yes
Surface
Brushed, Nickel-plated
Surface treatment
Brushed
Show all Show less

Scope of supply

1 Pair
Swing door hinge

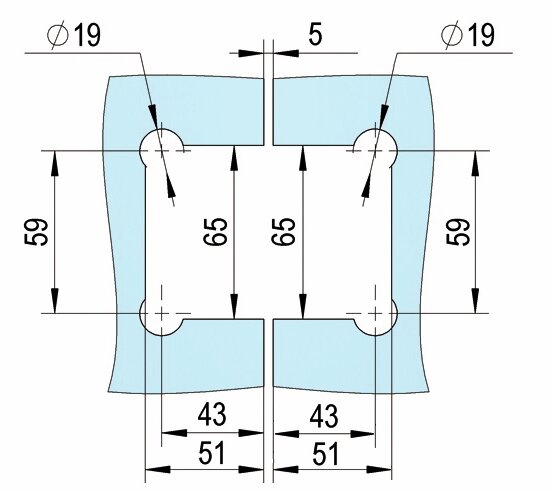

Drawings

jpg
