Application note:
Please use the following combinations of inserts for the following glass thicknesses: 2 x 2+1 mm for 8 mm glass, 2 x 2 mm for 10 mm glass, 2 x 1 mm for 12 mm glass.

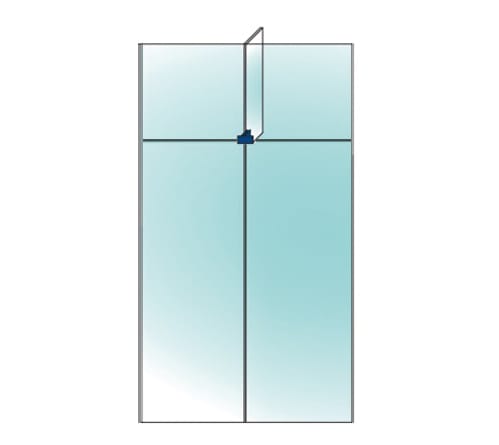

PT81 glass connector with bracing on one side
Description
Technical details
Colour
Stainless steel
Glass thickness TSG
10 - 12 mm
Material
Stainless steel V2A
Package contents
1 Piece
Surface
Brushed
