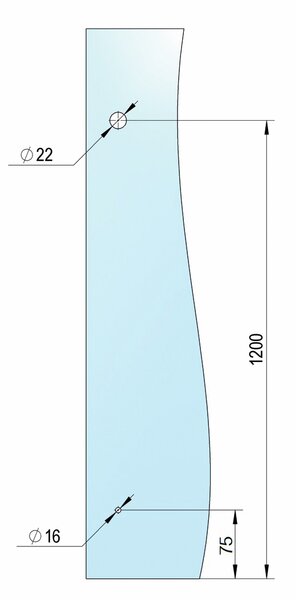

First hole at 75 mm from bottom of the door Incl. 30 / 160 mm Cylinder lock with thumb turn and dust socket
Lockable Rod Handle Square
Description
Technical details
Colour
Stainless steel
Depth
80 mm
Diameter
38 mm

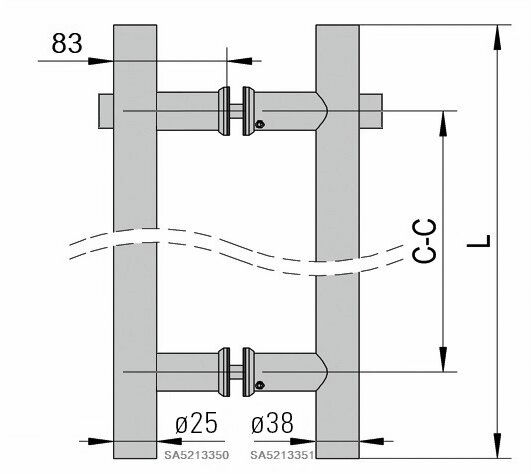

Distance between centre drill holes
1,125 mm
Glass processing required
Yes
Handle type
Lockable bar handle
Hole diameter in the glass
22 mm
Length
1,500 mm
Material
Stainless steel V2A
Package contents
1 Piece
Surface
Brushed
Width
25 mm
