Telescopic reinforcement bar set Round 19, glass-glass

Telescopic reinforcement bar set Round 19, glass-glass

Product number: BO5420231

Description

The telescopic reinforcement bar set Round 19 is used to connect two fixed glass side panels to each other. There is no need to use a saw, as the reinforcement bar is freely adjustable in a wide range of lengths.

If the generous adjustment range is not enough, the set can be made shorter.

Your Advantages

  • No glass processing required
  • Glass connector angle adjustable
  • Reinforcement bar telescopic

Technical details

Adjustable
Yes
Degree of gloss
Shiny
Diameter
19 mm
Glass thickness TSG
6 - 10 mm
Material
Brass
Mounting bracket
90°
Mounting type
Glass-Glass
Package contents
1 Set
Product series
Round 19
Shape
Round
Surface
Chrome-plated
Telescopic
750 - 1,000 mm
Show all Show less

Scope of supply

1 Piece
Reinforcement bar
2 Pieces
Glass connector

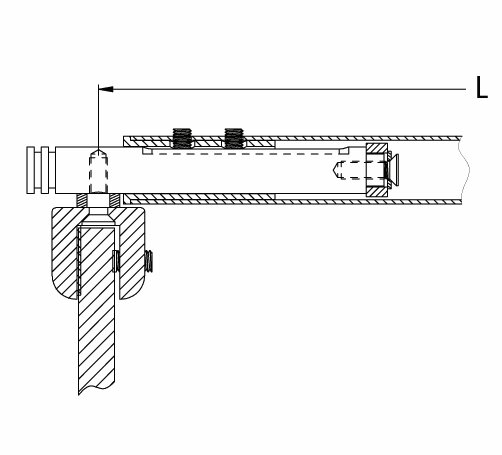

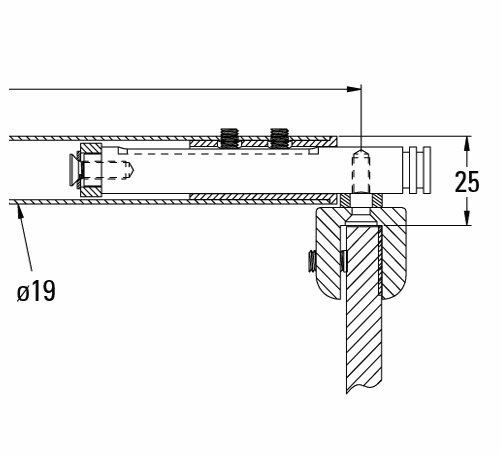

Drawings

jpg
jpg
