Swing furniture corner hinge, glass-glass

Product number: BO5500281

Description

Swing - the designer fitting for UV bonding made of solid stainless steel. Available in different sizes, round or square. For connoisseurs who appreciate something special.

A threaded pin 2.5 mm in the hinge allows the door to be removed after bonding.

Application note:
Pyrosil® must be used for bonding to toughened safety glass.

Your Advantages

  • No glass processing required
  • Solid stainless steel
  • Small inconspicuous design

Technical details

3D adjustability
No
Adjustable zero position
No
Colour
Stainless steel
Degree of gloss
Matt
Dismountable axles
1 piece
Door height
900 mm
Door type
Stop door
Door width
500 mm
Fastening type
Bonded
Flush
Yes
Function
Hinge
Glass processing required
No
Glass thickness
4 - 12 mm
Height
26.5 mm
Material
Stainless steel
Max. door weight per pair
10 kg
Model
Bonded
Mounting position
Inset
Mounting type
Glass-Glass
Opening angle
180°
Opening direction
DIN left and DIN right
Package contents
1 Pair
Product series
Swing
Retrieval zone
No
Shape
Square
Surface
Brushed
Width
20 mm
Show all Show less

Downloads

pdf
Instructions
BO520626x - BO550028x - Swing - Glass-Glass - Instruction Manual

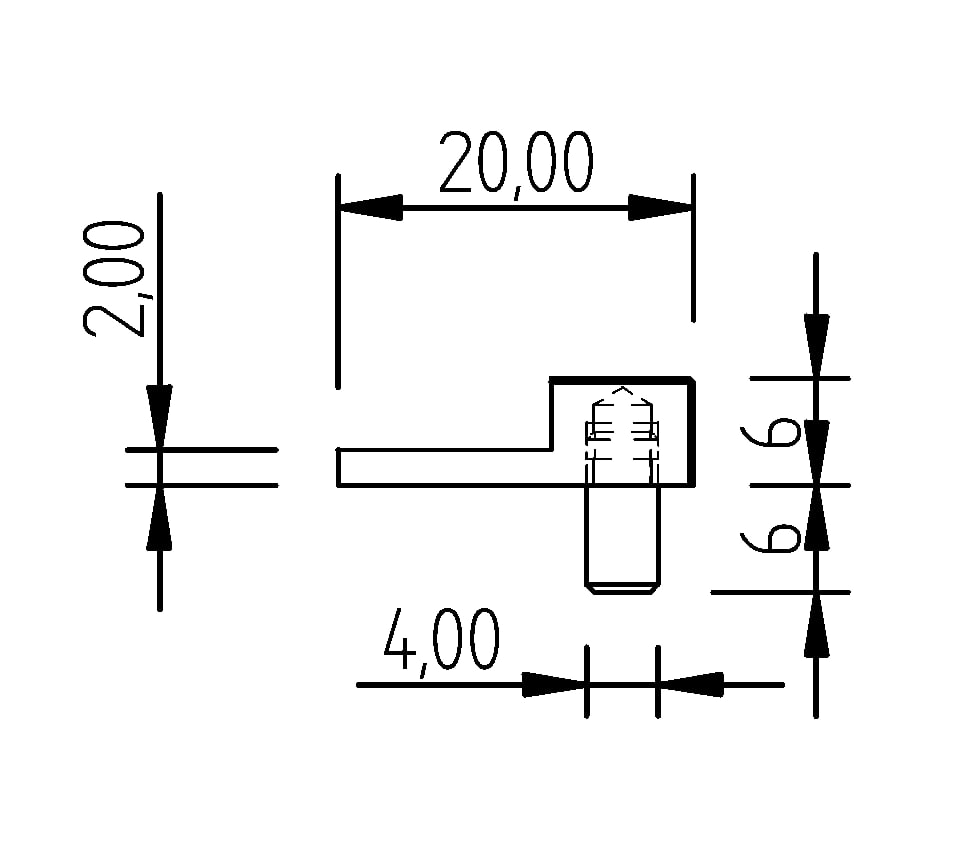

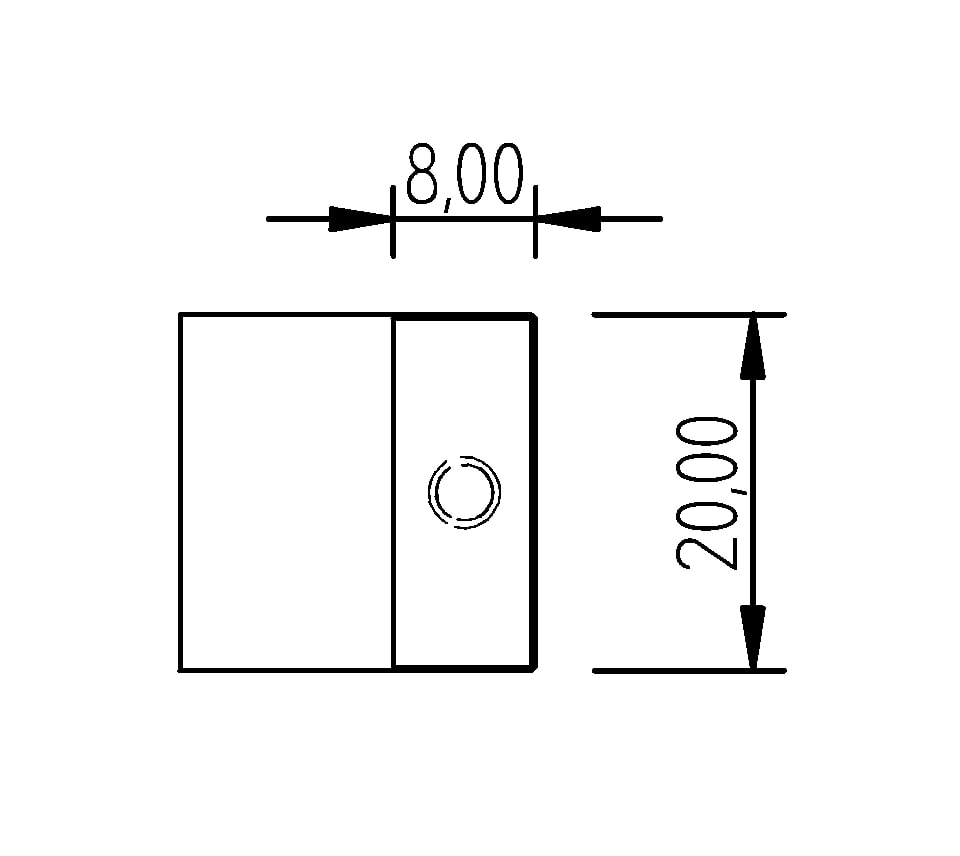

Drawings

jpg
jpg
