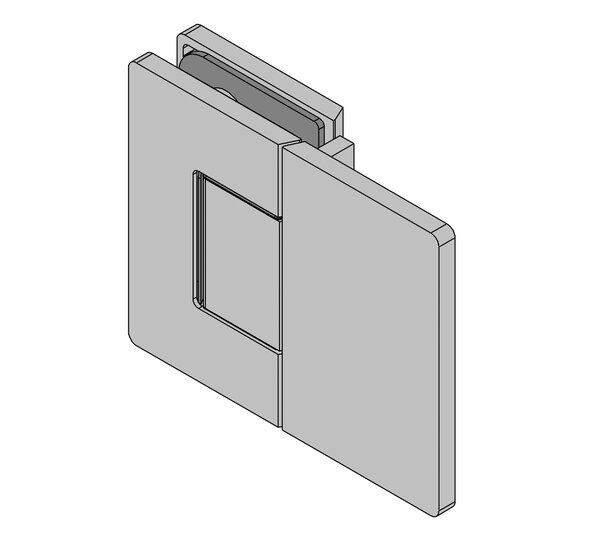

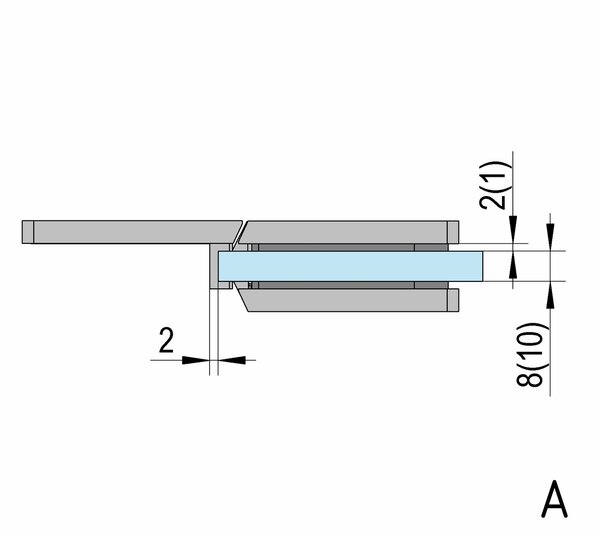

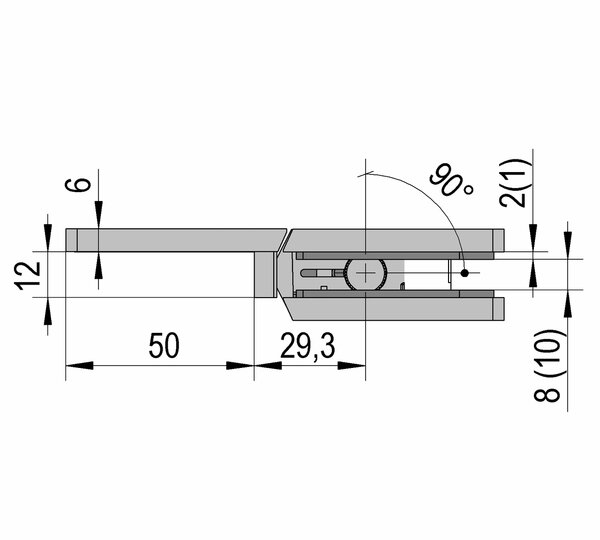

The Santos swing shower door hinge has a load capacity of 50 kg. Doors up to a maximum size of 1 x 2 m can be realised. The hinge for 180° glass-wall installation is designed so that the inner walls of the shower remain free of fittings.
The zero position is infinitely adjustable. The hinge has a self-closing function up to an opening angle of approx. +/- 15°. All screw connections are concealed under cover caps so that nothing detracts from the high-quality appearance. In the event of adjustment work, these caps can be removed at any time without causing damage. The Santos range consists of many variants and thus enables the realisation of almost all installation situations.
About the product series Santos:
If you value elegant looks at a good price-performance ratio, the Santos shower door hinge range is just right for you. Santos combines durable materials and first-class design in a high-quality processed shower door hinge series. It includes three types of shower door hinges and two types of angle connectors. All are available in shiny chrome and black finishes.
Application note:
Please note the modified technical specifications for use in saunas.
The product is designed for private saunas up to 100 °C.
Seals may only be installed at a maximum temperature of 60 °C.
Use in steam rooms or swimming pools is not permitted.
