Shower door hinge Madrid, glass-wall 180°

Choose Colour scheme

Product number: BO5215497

Description

The Madrid shower door hinge has a load capacity of 45 kg. Doors up to a maximum size of 1 x 2.25 m can be realised. The hinge for 180° glass-wall mounting is designed so that the interior walls of the shower remain free of fittings.

All screw fittings on the strap are concealed so that nothing detracts from the high-quality look. The design is classically angular and therefore timeless. The sealing profiles can be guided through the hinge. No glass cut-outs are required for installation, only glass drill holes.

About the product series Madrid:
Madrid shower door fittings are an elegant solution for glass shower doors. The portfolio consists of numerous variants and is therefore suitable for almost all types of installations. A true all-rounder. The hinges are designed as single-action door hinges and enable the sealing profiles to be guided through the hinge. The design is characterised by its straight lines and is very popular in modern bathrooms. No disruptive screw fittings are visible. The Madrid shower door hinge enhances any glass shower!

Show all Show less

Application note:
Please note the modified technical specifications for use in saunas. The product is designed for private saunas up to 100 °C. Seals may only be installed at a maximum temperature of 60 °C. Use in steam rooms or swimming pools is not permitted.

Your Advantages

Concealed screws
Only glass drilling required
Shower door seals can be passed through the hinge
Various finishes available
Suitable for use in sauna areas

Technical details

Colour

Stainless steel colour

Concealed wall fixings

Yes

Degree of gloss

Matt

Door height

2,250 mm

Door height for sauna use

2,000 mm

Door type

Stop door

Door weight per pair for sauna use max.

32 kg

Door width

1,000 mm

Door width for sauna use

800 mm

Flush

Glass processing required

Yes

Glass thickness TSG

6 - 10 mm

Inward / outward opening

Opening outwards

Material

Brass

Max. door weight per pair

45 kg

Mounting type

Glass-Wall

Opening direction

DIN left and DIN right

Package contents

1 Piece

Product series

Madrid

Rise/fall function

Screws on the belt concealed

Yes

Self-closing function

Suitable for saunas

Yes

Surface

Nickel-plated

Surface treatment

Brushed

Show all Show less

Downloads

pdf

Instructions

BO521549x-Madrid-hinge-glass-wall-180-instruction-manual.pdf

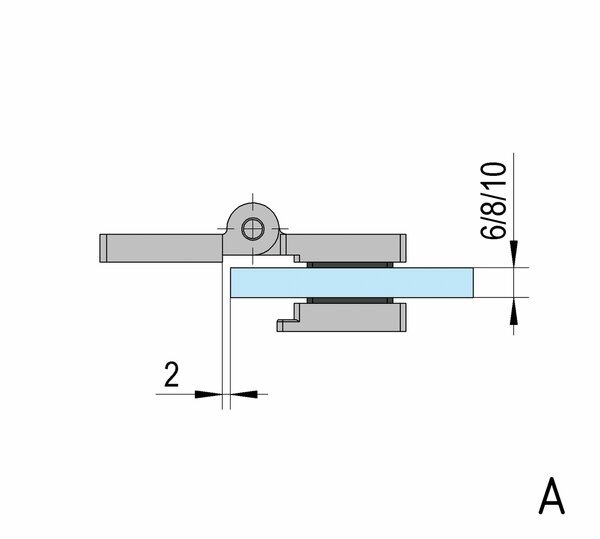

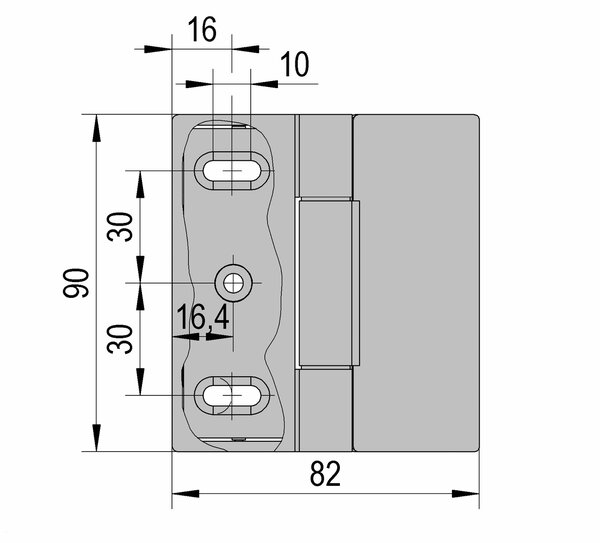

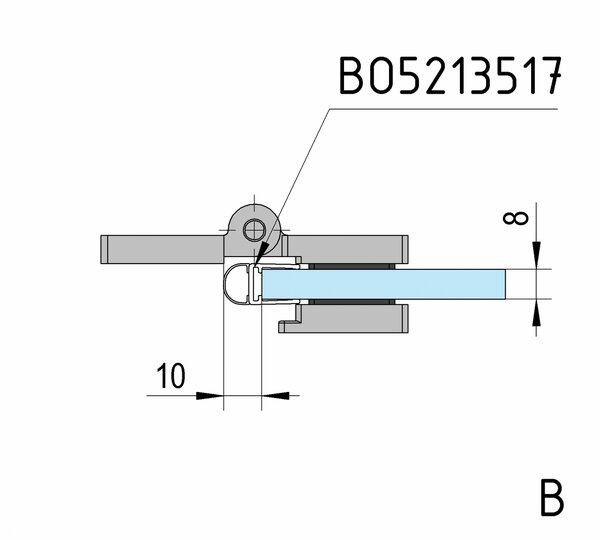

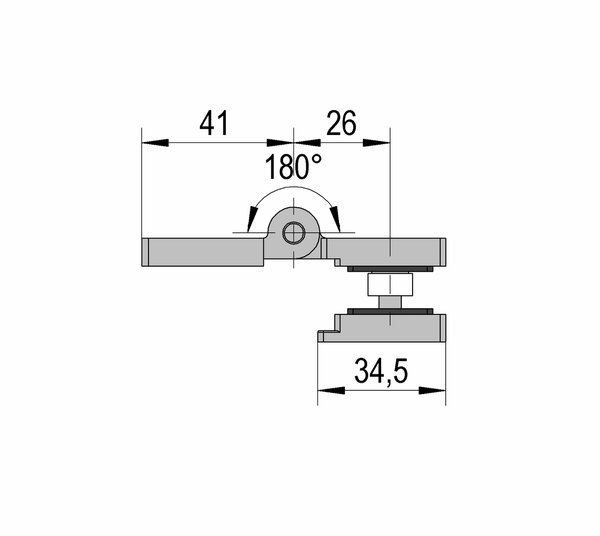

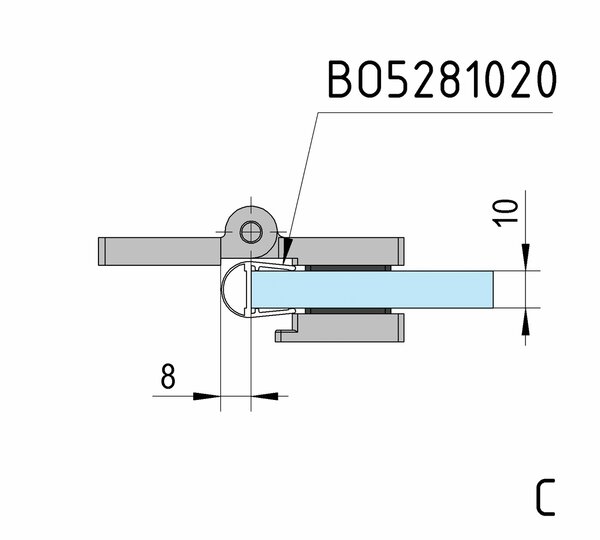

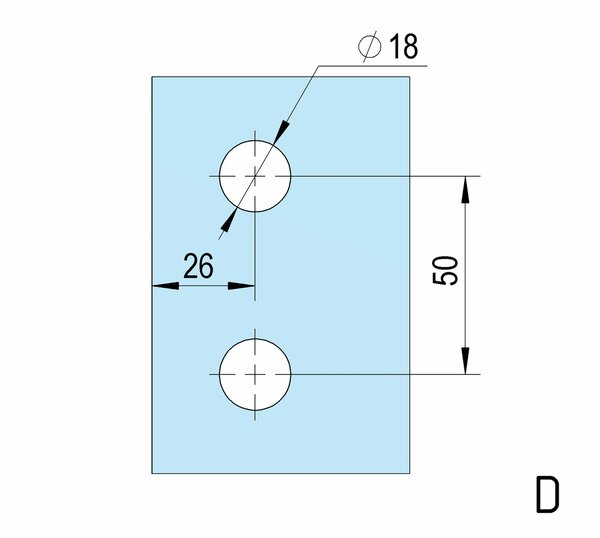

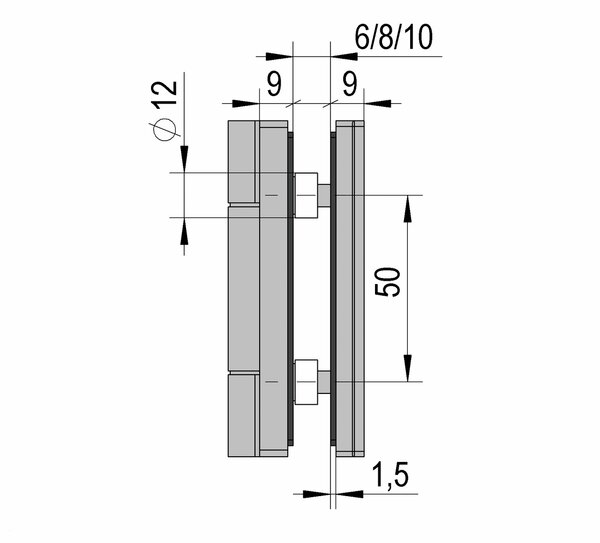

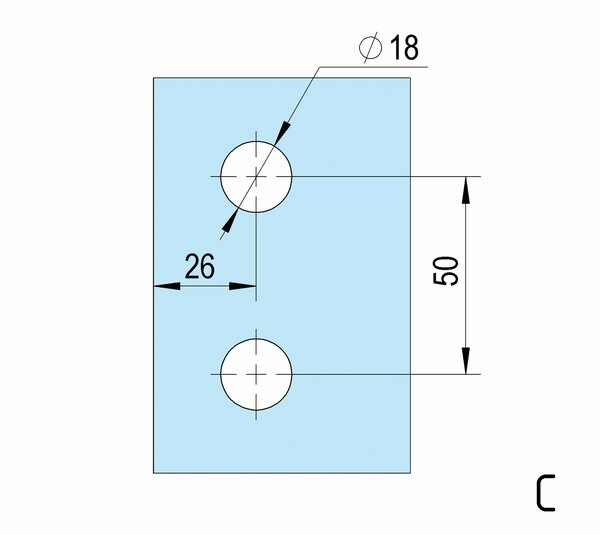

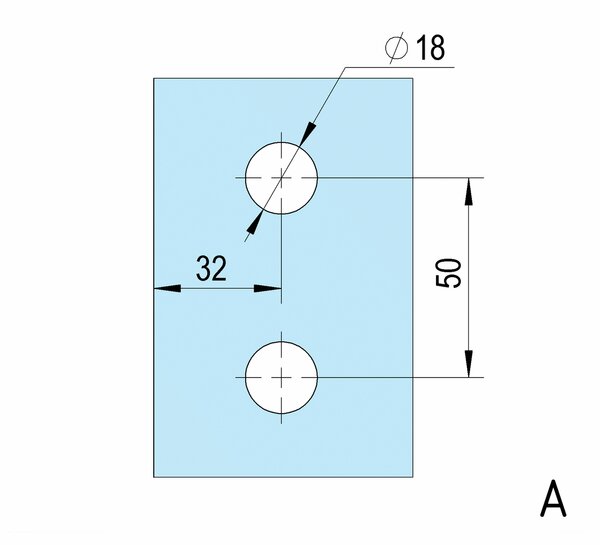

Drawings

jpg


jpg


jpg


jpg


jpg


jpg


jpg


jpg


jpg


jpg


jpg


jpg
