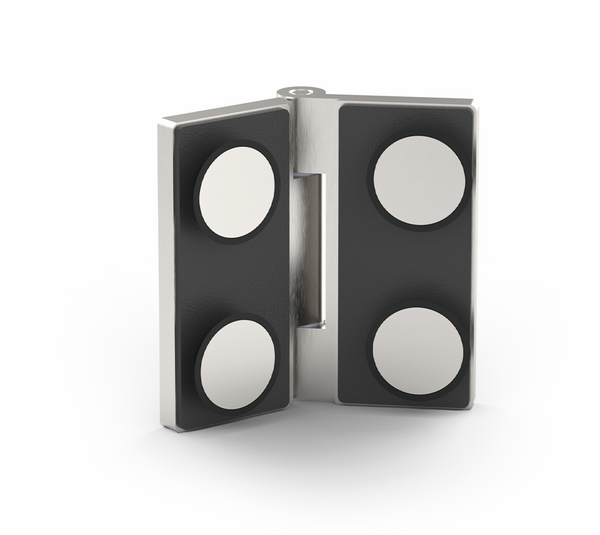

Shower door hinge Madrid FM, glass-glass 135-180°
Shower door hinge Madrid FM, glass-glass 135-180°
Shower door hinge Madrid FM, glass-glass 135-180°

Shower door hinge Madrid FM, glass-glass 135-180°

Product number: BO5216220

Description

The flush-mounted Madrid FM rebate shower door hinge has a load-bearing capacity of 40 kg. Doors up to max. 1 x 2 m can be realised. With 135-180° glass-glass installation, the hinge can be used universally and is designed for both space-saving 135° corner showers and 180° folding glass screens.

The hinge has a flush, adjustable glass fastening, which makes it easy to clean the glass. All screw connections on the hinge are concealed so that nothing detracts from the high-quality appearance. It is designed for right-angled corner and recess showers. The sealing profiles can be guided through the hinge. No glass cut-outs are required for installation, only glass countersink drill holes.

Show all Show less

Your Advantages

  • Concealed screws
  • Only glass countersink drill holes required
  • Shower door seals can be passed through the hinge
  • Flush mounting
  • Various finishes available

Technical details

Colour
Stainless steel colour
Concealed wall fixings
Yes
Degree of gloss
Matt
Door height
2,000 mm
Door type
Stop door
Door width
1,000 mm
Flush
Yes
Glass processing required
Yes
Glass thickness TSG
8 - 10 mm
Inward / outward opening
Opening outwards
Material
Brass
Max. door weight per pair
40 kg
Mounting type
Glass-Glass
Opening direction
DIN left and DIN right
Package contents
1 Piece
Product series
Madrid
Rise/fall function
No
Screws on the belt concealed
Yes
Self-closing function
No
Surface
Nickel-plated
Surface treatment
Brushed
Show all Show less

Downloads

pdf
Instructions
BO5216219-BO5216220-BO5216221-Madrid-FM-hinge-g-g-135-180-instruction-manual.pdf
