Reinforcement bar set Square 15, glass-glass
Reinforcement bar set Square 15, glass-glass

Reinforcement bar set Square 15, glass-glass

Product number: BO5420237

Description

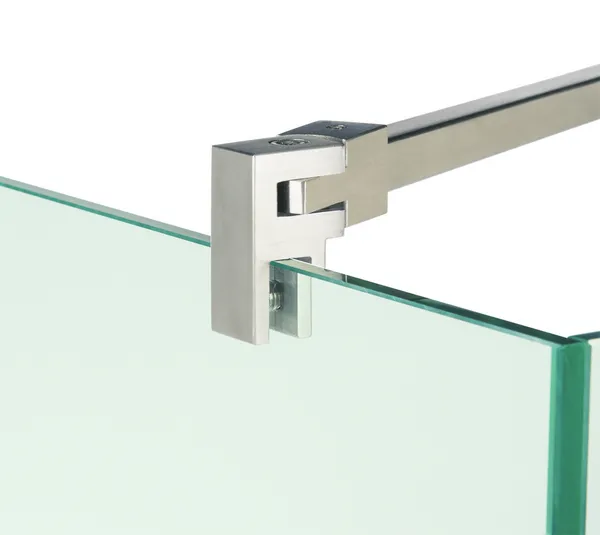

Reinforcement bar set Square 15 is used to connect two fixed glass side panels together. The glass connectors are clamped onto the upper glass edge and are freely adjustable in angle.



Your Advantages

  • No glass processing required
  • Small inconspicuous design
  • Glass connector angle adjustable
  • Reinforcement bar can be cut to desired length

Technical details

Adjustable
Yes
Colour
Stainless steel
Degree of gloss
Shiny
Glass thickness TSG
6 - 10 mm
Height
15 mm
Length
1,000 mm
Material
Stainless steel
Mounting type
Glass-Glass
Package contents
1 Set
Product series
Square 15
Shape
Square
Surface treatment
Polished
Width
15 mm
Show all Show less

Scope of supply

1 Piece
Reinforcement bar
2 Pieces
Glass connector / end piece

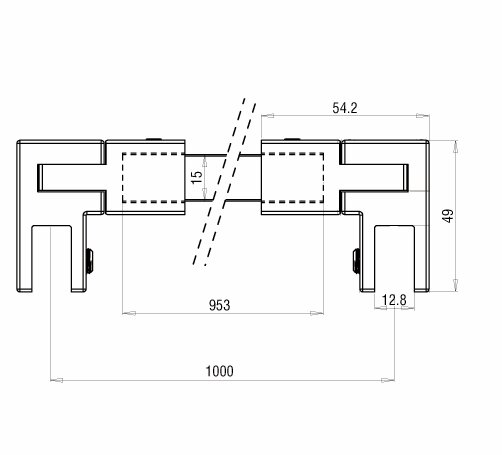

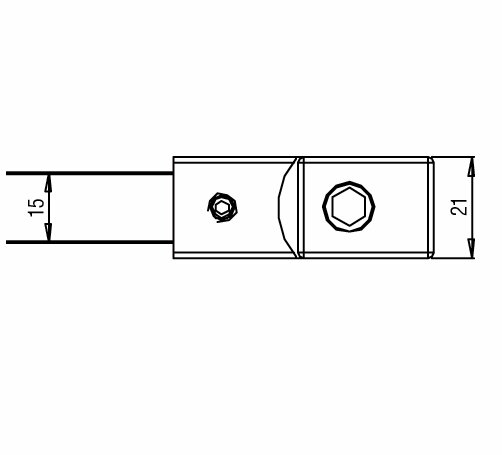

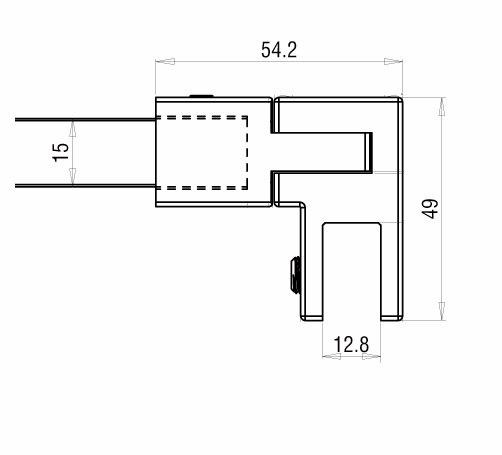

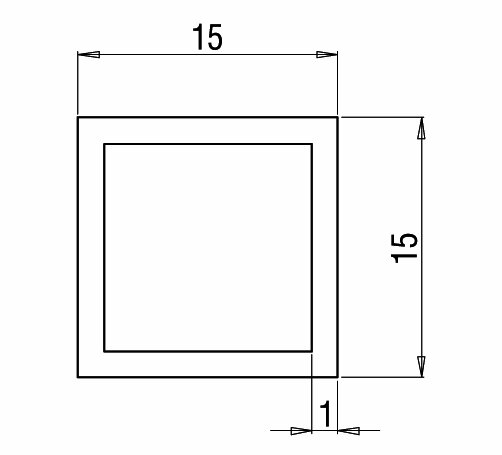

Drawings

jpg
jpg
jpg
jpg
