The original for swing and single-action doors: stylish appearance, high-quality workmanship, first-class functionality! The hydraulic swing door hinges impress with their harmonious design, invisible screw connections and are tested for 500,000 closing cycles in accordance with DIN EN 1154.
Thanks to the adjustable zero position and the integrated self-closing function, the hinges bring the door into its ideal position in a precise and controlled manner. They are suitable for both private interiors and commercial applications. With a maximum door width of 1,000 mm and a load limit of 100 kg for the glass-wall version and 80 kg for the glass-glass version, they offer a wide range of possible applications.
The door fittings are designed for toughened safety glass and laminated safety glass (made of toughened safety glass) and can be used with glass thicknesses between 8 and 13.52 mm. They are hydraulic hinges that are protected by international patents. They are also TÜV-certified in accordance with EN 1154:2006 and therefore function in the same way as conventional door closers.
A particular advantage of the Biloba is its low opening resistance: this allows the door to be opened conveniently, with a large proportion of the energy used being transferred to the controlled closing process. The doors close automatically at the previously set speed. Even the installation of the hinges is quick and easy, as all screw connections are easily accessible.
About the product series Ginkgo biloba:

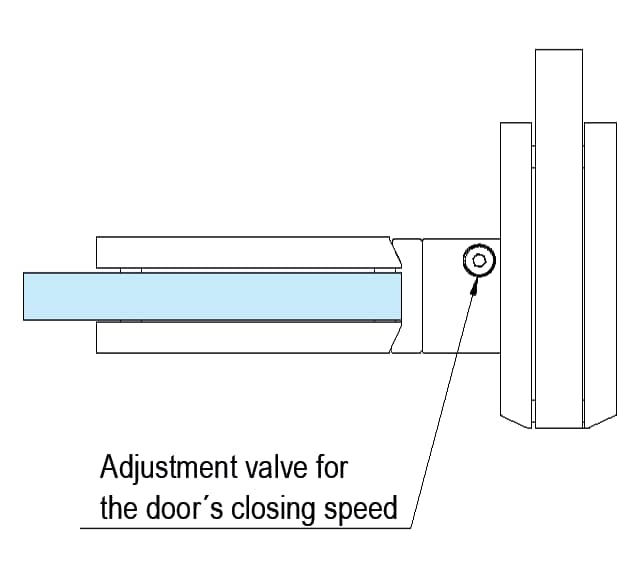

Smooth closing - convenient installation: The Biloba hydraulic hinge system ensures controlled, quiet closing of the door - without the need for a door closer on the floor or ceiling. The integrated damping protects glass and fittings from damage. The closing speed can be easily adjusted - depending on the door size and usage. Ideal for modern glass installations indoors, with a high-quality look and simple glass-to-wall or glass-to-glass installation.
Show allShow less
The installation of hydraulic hinges makes sense wherever safe, controlled and user-adapted self-closing of door is required.
Application note:
To prevent the door from overturning, two door stops must be used as end stops at an opening angle of 90°. These are not included in the scope of delivery. We recommend the use of BO 5210381 or BO 5210383 for this purpose. The fittings to be installed must be synchronised with each other in order to achieve a uniform closing speed. The doors must close automatically at the preset closing speed. The use of an additional third hinge does not lead to an increase in the maximum load capacity.
Your Advantages
Tested for 500,000 closing cycles (DIN EN 1154)
Suitable for swing and single-action doors
No visible screw connections
Designed for heavy doors and high loads

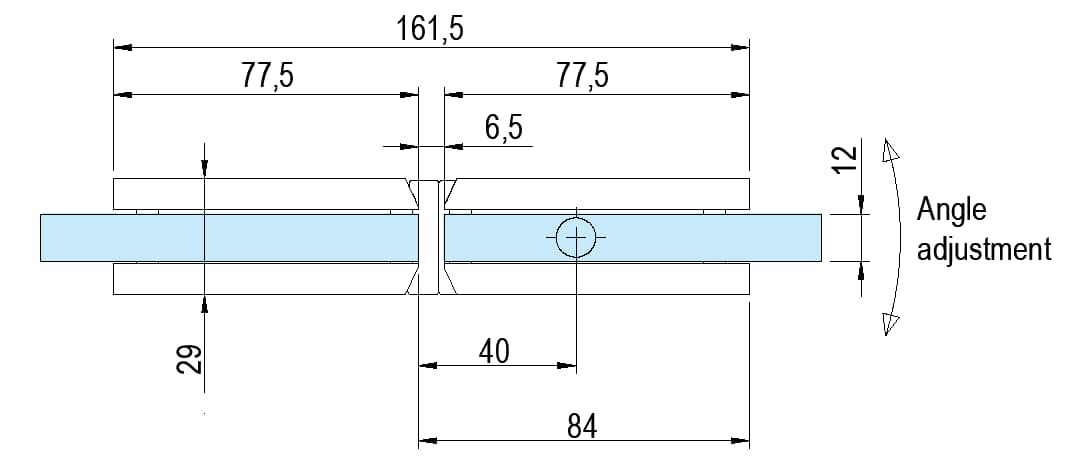

Infinitely adjustable zero position
Technical details
Adjustable zero position
Yes
Colour
Black
Concealed wall fixings
Yes
Door width
500 - 1,000 mm
Glass thickness LSG
8.76 - 13.52 mm
Glass thickness TSG
8 - 12 mm
Hold position
180°
Material
Aluminium
Max. centre distance
2,000 mm
Max. door weight per pair
80 kg
Mounting type
Glass-Glass
Opening direction
DIN left and DIN right
Package contents
1 Piece
Product series
Biloba
Self-closing from
80°
Surface
Anodised
Surface treatment
E6 stained
Temperature resistance (°C)
-15 - 40 °C
Show allShow less
Scope of supply
1 Piece
Pre-assembled swing door hinge
1 Set
Cover caps (for sash hinge part and screw-on plate)
1 Set
Interlayers (for 8 to 13.52 mm glass)
2 Pieces
Rubber pin for attaching the cover caps (spare part)
