Angle connector, glass-glass 90°

Angle connector, glass-glass 90°

Product number: BO5210041

Description

Angle connector 90° glass-glass for connecting two glass side panels at right angles to each other.

Only glass drill holes required.

Technical details

Angle
90°
Bore diameter
16 mm
Degree of gloss
Shiny
Glass thickness TSG
8 - 10 mm
Mounting type
Glass-Glass
Package contents
1 Piece
Screws on the belt concealed
No
Surface
Chrome-plated

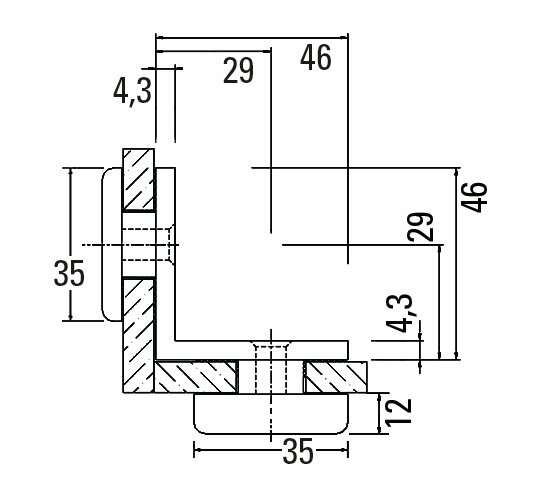

Drawings

jpg
