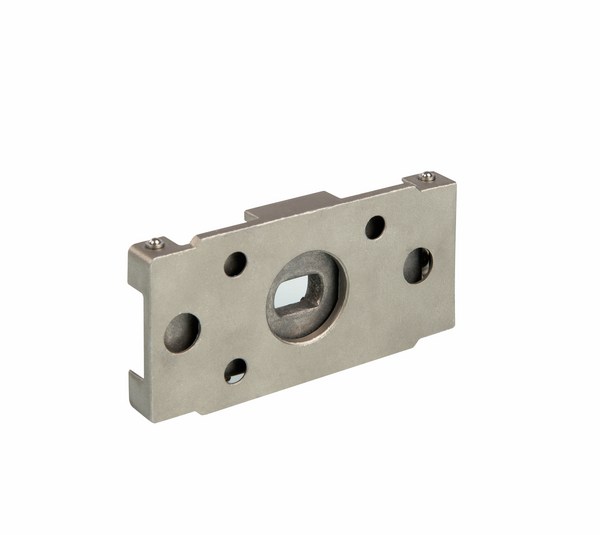

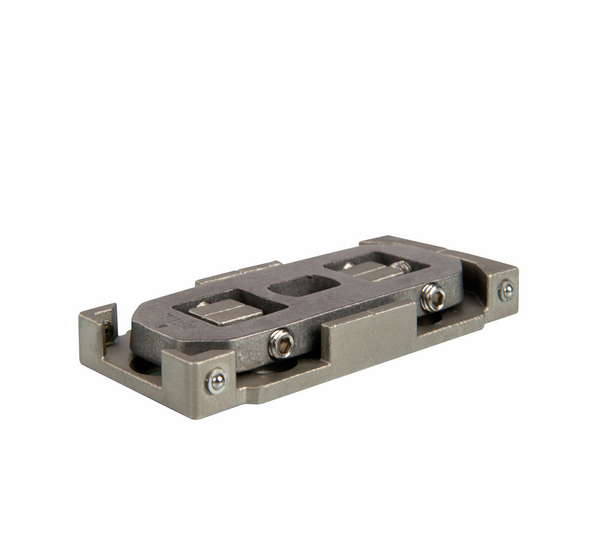

With Alva, floor recesses are a thing of the past. Using a base plate, the fitting is simply fixed securely to the substrate with screws.
If the two intended drill holes run along an expansion joint, alternative drilling options enable secure fastening in the substrate. The distance between the wall and the first hole is 29 mm and thus offers sufficient space for vertical drilling with a drill so that the holes in the substrate can be drilled comfortably. The door reaches its ideal position with the help of four adjusting screws. This allows fine adjustment of the vertical alignment and the zero position up to +/-3 mm and +/- 3° respectively. The distance to the wall, the horizontal alignment, can also be easily adjusted by +/- 3 mm using a fifth set screw.
About the product series Alva:
With its outstanding functions, convenient installation options and clear design, the Alva patch fitting is one of the best in its class. As the matching upper patch fitting has the same dimensions as the lower one, it harmonises particularly well as a whole. Alva is therefore a timelessly designed all-rounder. The entire hydraulic system for the self-closing function is housed in the slim fitting. The fitting with closing force EN 5 has the same dimensions of 184 x 70 mm as the EN 3 patch fitting and therefore ensures a uniform appearance for doors of different sizes in a room.
