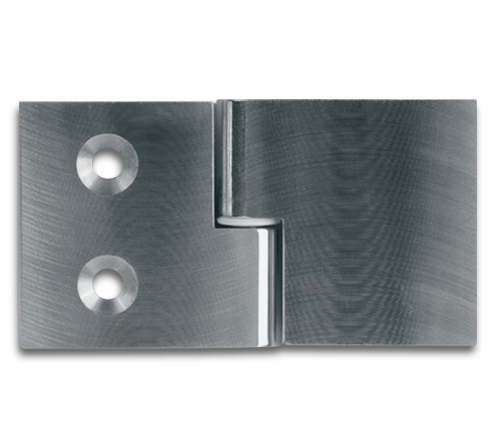

Vitreasy 007 Furniture hinge, glass-glass

Vitreasy 007 Furniture hinge, glass-glass

Product number: BO5206267

Description

Unobtrusive 2-part glass door hinge made of solid aluminium. For UV bonding to doors of all-glass display cabinets. The use of metal primer BO 5209488 or Pyrosil® BO 5209491 is required for permanent bonding.



Your Advantages

  • No glass processing required
  • Small inconspicuous design
  • Can be used in a recessed or surface-mounted position

Technical details

3D adjustability
No
Colour
Aluminium colour
Colour standard
C0
Degree of gloss
Shiny
Depth
2.7 mm
Door height
900 mm
Door type
Stop door
Door width
600 mm
Fastening type
Bonded
Flush
Yes
Function
Hinge
Glass thickness
4 - 8 mm
Height
35 mm
Material
Aluminium
Max. door weight per pair
10 kg
Mounting position
Inset and overlay
Mounting type
Glass-Glass
Opening angle
270°
Opening direction
Left
Package contents
1 Pair
Product series
Vitreasy 007
Shape
Square
Surface
Polished
Width
65 mm
Show all Show less

Downloads

pdf
Instructions
BO520626x - Hinges - Instruction Manual
