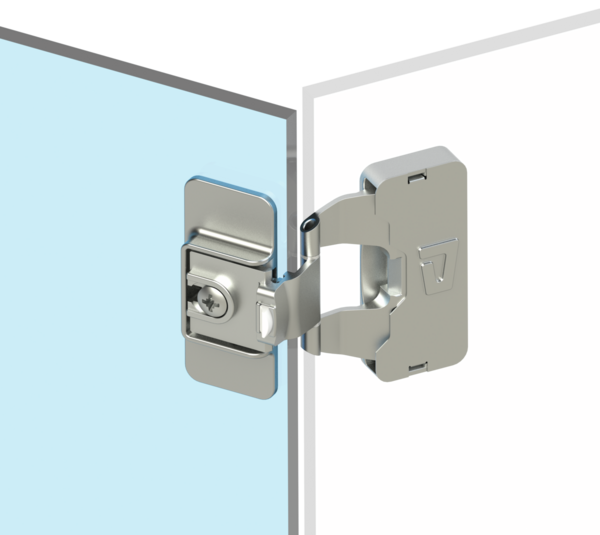

Vitreasy 003 Furniture hinge, glass-glass
Vitreasy 003 Furniture hinge, glass-glass

Vitreasy 003 Furniture hinge, glass-glass

Product number: BO5205247

Description

Vitreasy furniture hinges guarantee a stable and visually high-quality result. They convince with their compact design with integrated tumbler, are 3D adjustable, have opening angles from 180° to 270° and have been tested according to EN 15570 Level 3. This ensures a perfect result.



Application note:
Depending on the glass thickness, a bevel may be required at the glass edge. Please observe the installation instructions.

Your Advantages

  • With integrated guard locking
  • Many different versions available
  • Quality-tested according to DIN 15570 Level 3
  • Fixing material is supplied
  • 3D adjustable

Technical details

3D adjustability
Yes
Colour
Stainless steel
Degree of gloss
Matt
Door height
2,400 mm
Door type
Stop door
Door width
600 mm
Fastening type
Bonded
Flush
Yes
Function
Hinge
Glass processing required
Yes
Glass thickness
4 - 10 mm
Height
56 mm
Material
Stainless steel
Max. door weight per pair
10 kg
Model
Bonded
Mounting position
Inset
Mounting type
Glass-Glass
Opening angle
200°
Opening direction
DIN left and DIN right
Package contents
1 Piece
Product series
Vitreasy 003
Retrieval zone
No
Self-closing function
No
Shape
Square
Surface treatment
Brushed
Show all Show less
