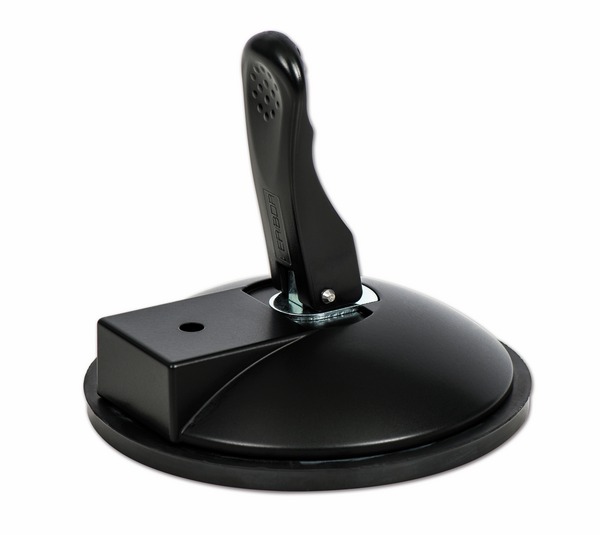

Veribor® aluminium quality suction holder, bore 6.5 mm
Veribor® aluminium quality suction holder, bore 6.5 mm
Veribor® aluminium quality suction holder, bore 6.5 mm

Veribor® aluminium quality suction holder, bore 6.5 mm

Product number: BO600.20R

Description

Fixing and mounting without drilling - the universally applicable suction holder offers many application possibilities. The Ø 6.5 mm hole allows the use of additional attachments. For this purpose, this version is equipped with stainless steel components.

The tilting lever, which can be adjusted by 90 degrees in two directions, allows the width of the suction holder to be ideally adapted to the desired application. The softer rubber pad is used to achieve a longer holding time. Furthermore, this enables the suction holder to hold not only on flat, gas-tight surfaces, but also on slightly structured ones. The specially designed and produced Veribor® rubber pads achieve a tested torque of 16 Nm.

Your Advantages

  • Suitable for many diverse applications
  • Aluminium and stainless steel components
  • Rotatable toggle lever, can be turned 90 degrees in each of two directions
  • Technical data available on request (data sheets, technical drawings, CAD models)
  • Qualified expert advice on individual applications
Show all Show less

Technical details

Colour
Black
Diameter suction pad
120 mm
Fastening options
Bore Ø 6.5 mm
GS certified
No
Load capacity
30 kg
Material
Aluminium
Material suction pad
Rubber (SBR)
Surface geometry
Curved, Flat, Structured
Torque
16 Nm
Type of vacuum generation
Lever
Vacuum safety indicator
No
Weight
325.24 g
