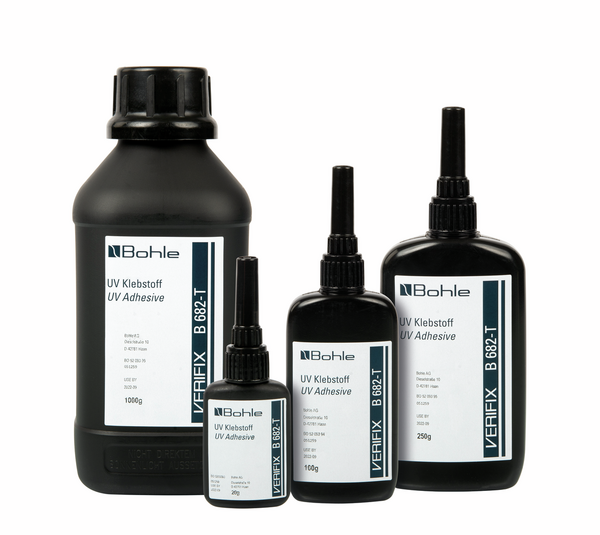

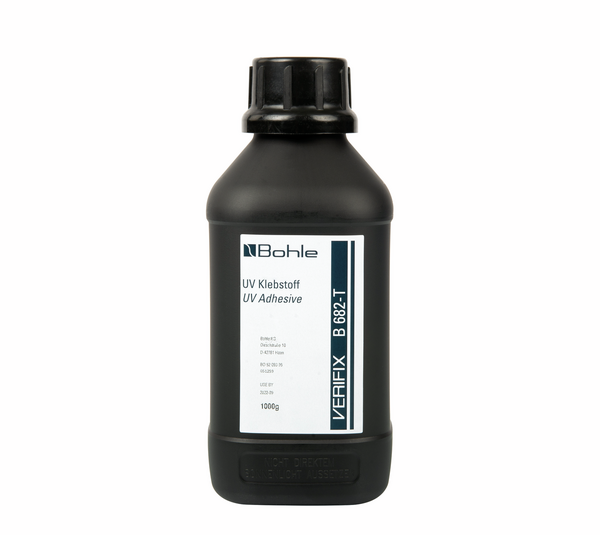

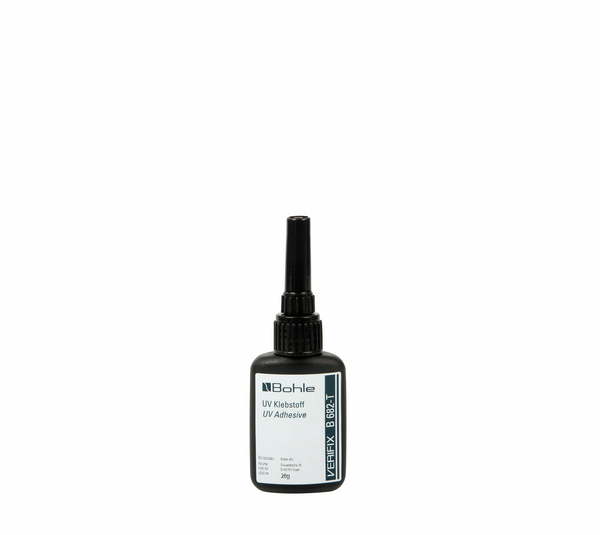

UV Adhesive B 682-T
UV Adhesive B 682-T

UV Adhesive B 682-T

Product number: BO5209395

Description

B 682-T is suitable for high-strength glass-metal bonding in furniture construction. Hinges, shelf supports, locks etc. can be bonded to float glass and toughened safety glass in efficient production cycles due to short curing times. Due to its impact strength, B 682-T compensates for dynamic loads.

B 682-T is also activator-curing. This means that two opaque materials such as metal can be bonded to metal. The use of a UV lamp is not necessary. Use a metal primer or Pyrosil® when bonding chrome-plated, nickel-plated or mill-finish aluminium surfaces to improve the adhesion of the adhesive

Can be used with UV activator 30. No adhesion possible on powder-coated surfaces.

Application note:
Observe the safety data sheet, the processing instructions and the relevant technical guidelines and standards. Not suitable for outdoor use.

Your Advantages

  • Suitable for bonding metal to float glass and toughened glass
  • Efficient production cycles due to short curing times

Technical details

Application area
Glass, Indoor, Metal
Colour
Transparent
Consistency
Liquid
Content
250 g
Density
1.10 g/cm³
Durability
See label
E-modulus
1,000 MPa
Elongation at break
6 %
Flash point (°C)
93 °C
Hardening mechanism
Activator curing, UV curing
Hardness
80 Shore D
Layer thickness
0.1 - 0.5 mm
Linear shrinkage
4 %
Material
Acrylic acid ester
Moisture resistant
No
Non-yellowing
No
Refractive index
1.5
Required wavelength
365 nm
Shear strength
26 MPa
Solvent-free
Yes
Spacer
No
Storage information
Protect from sunlight, Store cool, Store dark, Store dry, Store in original container
Storage temperature (°C)
8 - 20 °C
Surface bonding
No
Temperature resistance (°C)
-40 - 140 °C
Viscoelastic properties
Impact resistant
Viscosity
900
Waterproof
No
Show all Show less

Downloads

pdf
Technical data sheets
Verifix® B 682-T - UV Adhesive - Technical Data
pdf
Instructions
Informationen und Bedienungsanleitung von UV-härtenden Klebstoffen - Information and Instruction manual on UV Curing Adhesives
pdf
Technical data sheets
Verifix® B 682-T - Sicherheitshinweis - Safety Information
