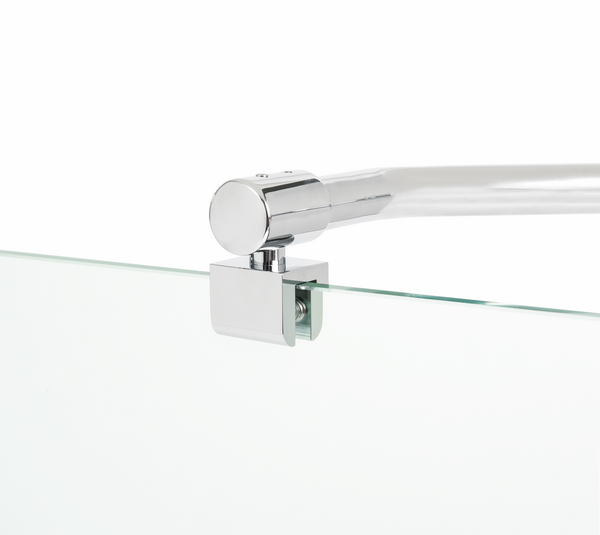

Telescopic reinforcement bar set Round 19, glass-wall 90°
Telescopic reinforcement bar set Round 19, glass-wall 90°

Telescopic reinforcement bar set Round 19, glass-wall 90°

Product number: BO5420211

Description

The set is used to connect a fixed glass side panel to a wall. There is no need to use a saw, as the reinforcement bar is freely adjustable over a wide range of lengths.

If the generous adjustment range is not enough, the set can be made shorter on the wall connector side.

Your Advantages

  • Adjustable glass connector
  • Telescopic reinforcement bar
  • No glass processing required
  • Bar can be made shorter on the wall connector side

Technical details

Adjustable
Yes
Degree of gloss
Shiny
Diameter
19 mm
Glass thickness TSG
6 - 10 mm
Material
Brass
Mounting bracket
90°
Mounting type
Glass-Wall
Package contents
1 Piece
Product series
Round 19
Shape
Round
Surface
Chrome-plated
Telescopic
820 - 1,000 mm
Show all Show less

Scope of supply

1 Piece
Reinforcement bar
1 Piece
Adjustable glass connector
1 Piece
Rigid wall connector

Drawings

jpg
jpg
jpg
