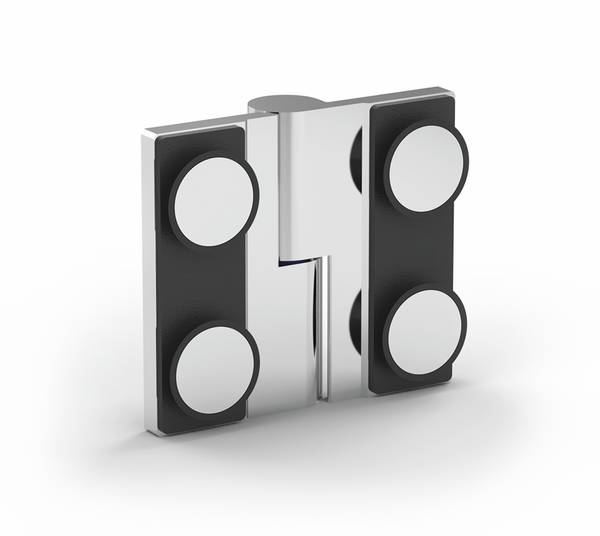

The Arta FM glass-glass 135-180° flush-mounted rebate shower door hinge has a load-bearing capacity of 40 kg. Doors up to 1 x 2 m can be realised. The hinge has a lifting and lowering function and can be used for 180° folding glass screens or 135° corner showers, for example.
Arta FM shower door fittings are the elegant solution for glass shower doors. The hinges are designed as single-action door hinges and allow the sealing profiles to be guided through the hinge. They have a flush-fitting, adjustable glass fixing that makes it easy to clean the glass. No disruptive screw fittings are visible on the classic, angular design. The zero position can be adjusted using a screw located on the underside of the hinge. The raising/lowering function with 5 mm lifting height enables the shower door to close independently. Due to the lowering of the door when closing, a better seal can be achieved due to increased sealing pressure. The shower door hinge is ideal for barrier-free, level-access bathrooms.
About the product series Arta:
The Arta series impresses with its clear design and many features, such as the integrated raise/lower mechanism and the infinitely variable zero position adjustment. The extensive product range consists of many variants and is therefore suitable for a wide range of installations. Robust materials inside the hinge guarantee a long service life.
Show allShow less
Your Advantages
Concealed screws
Only glass countersunk drill holes required
Shower door seals can be passed through the hinge
Lifting-lowering mechanism with 5 mm lifting height
Flush mounting
Various finishes available
Show allShow less
Technical details
Adjustable zero position
Yes
Degree of gloss
Shiny
Door height
2,000 mm
Door type
Stop door
Door width
1,000 mm
Flush
Yes
Glass processing required
Yes
Glass thickness TSG
8 - 10 mm
Hold position
90°
Inward / outward opening
Opening outwards
Load capacity
40 kg
Material
Brass
Max. door weight per pair
40 kg
Mounting type
Glass-Glass
Opening angle
180°
Opening direction
Right
Package contents
1 Piece
Product series
Arta
Rise/fall function
Yes
Screws on the belt concealed
Yes
Self-closing from
60°
Surface
Chrome-plated
Surface treatment
Polished
Show allShow less
