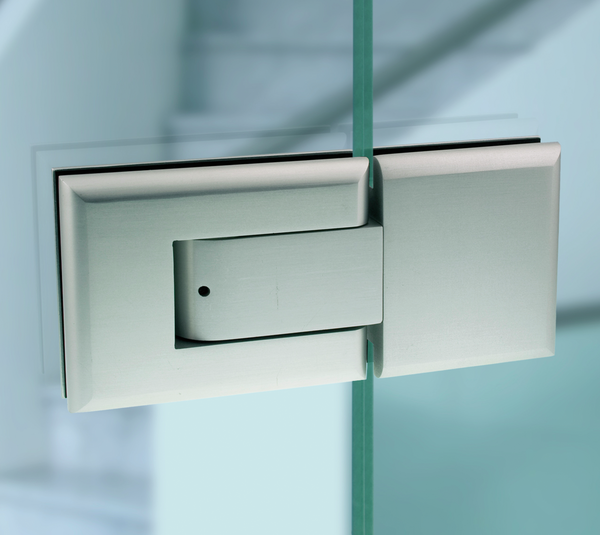

Selco self-closing swing door hinge
Selco self-closing swing door hinge

Selco self-closing swing door hinge

Product number: BO5206854

Description

Selco swing door hinges with self-closing function combine first-class looks, high-quality workmanship and functionality. With the adjustable zero position, you can quickly and easily bring the door into its ideal position.

The door hinges are suitable for interior doors in private and commercial areas, especially for passage areas. The swing door hinges are tested according to DIN EN 18263 with 500,000 closing cycles. They are also tested according to DIN EN 1670 and comply with corrosion protection class 3.

To prevent the door from opening too far two doorstops must be used as end stops.

Application note:
Selco swing door hinges must not be used on a one-side opening door. Using the door without swinging will cause damage to the door hinge. When using the door hinges with laminated safety glass, we recommend using a pressure-neutral film and additionally gluing the door hinges to the glass. We do not recommend using the locks and hinges in swimming pools and brine baths.

Your Advantages

  • Suitable for heavy doors and heavy use
  • Corrosion protection class 3, tested according to DIN EN 1670
  • Can be used DIN right and DIN left
  • Tested in accordance with DIN 18263 with 500,000 cycles

Technical details

Adjustable zero position
Yes
Adjustable zero position (+/-)
5°
Colour
Stainless steel colour
Colour standard
C31
Concealed wall fixings
Yes
Door height
2,500 mm
Door type
Swing door
Door width
1,000 mm
Glass thickness LSG
8.76 - 10.76 mm
Glass thickness TSG
8 - 12 mm
Hold position
90°
Material
Aluminium
Max. door weight per pair
70 kg
Mounting type
Glass-Glass
Opening angle
90°
Opening direction
DIN left and DIN right
Product series
Selco
Rise/fall function
No
Self-closing function
Yes
Surface
Anodised
Surface treatment
E4 ground and brushed
Show all Show less

Scope of supply

1 Piece
Pre-assembled swing door hinge
2 Pieces
Glass protection
6 Pieces
Intermediate layer (2x 1 mm, 1 mm, 2 mm each)
1 Piece
Wall connection plate
2 Pieces
Cover plate
4 Pieces
Hexagon socket countersunk head screw M6 x 16
1 Piece
Doorstop
