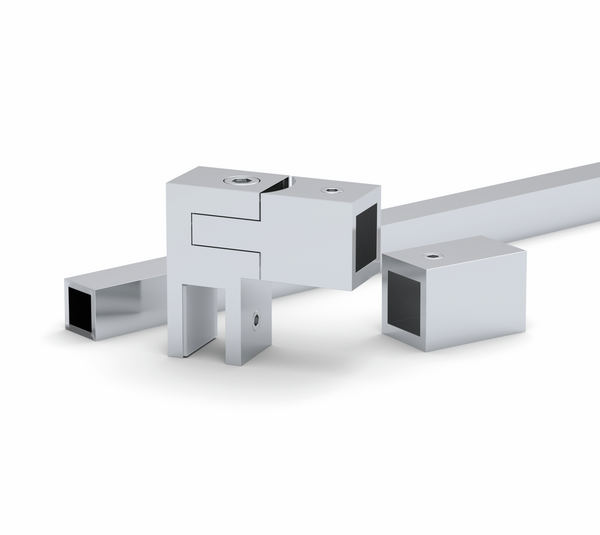

Reinforcement bar set Square 15, glass-wall 90°

Reinforcement bar set Square 15, glass-wall 90°

Product number: BO5420241

Description

Reinforcement bar set Square 15 is used to connect a fixed glass side panel to a wall. The glass connector is clamped onto the upper glass edge and is freely adjustable in angle. The 90° wall connector is rigid.



Your Advantages

  • No glass processing required
  • Small inconspicuous design
  • Glass connector angle adjustable
  • Reinforcement bar can be cut to desired length

Technical details

Adjustable
Yes
Colour
Stainless steel
Degree of gloss
Shiny
Glass thickness TSG
6 - 10 mm
Height
15 mm
Length
1,000 mm
Material
Stainless steel
Mounting bracket
90°
Mounting type
Glass-Wall
Package contents
1 Set
Product series
Square 15
Shape
Square
Surface
Polished
Width
15 mm
Show all Show less

Scope of supply

1 Piece
Reinforcement bar
1 Piece
Adjustable glass connector
1 Piece
Rigid wall connector
