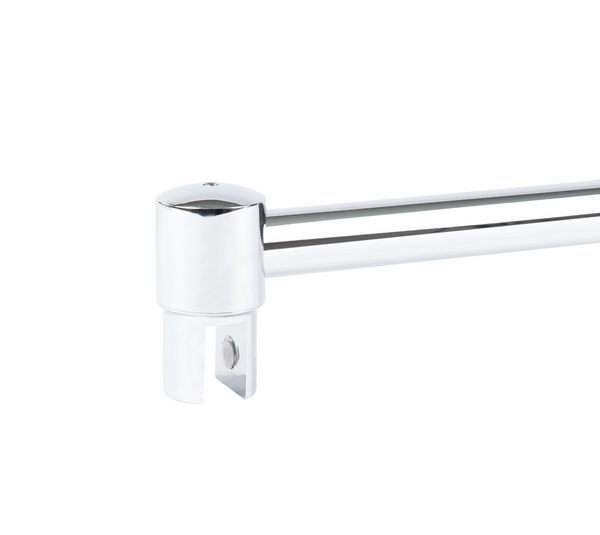

Reinforcement bar set Round 19, glass-wall 90°
Reinforcement bar set Round 19, glass-wall 90°

Reinforcement bar set Round 19, glass-wall 90°

Product number: BO5420267

Description

Reinforcement bar set Round 19 is used to connect a fixed glass side panel to a wall. The glass connector is clamped onto the upper glass edge and is freely adjustable in angle. The wall connector is rigid.



Your Advantages

  • No glass processing required
  • Packed as a set
  • Reinforcement bar can be cut to desired length
  • Glass connector angle adjustable

Technical details

Adjustable
Yes
Degree of gloss
Shiny
Diameter
19 mm
Glass thickness TSG
6 - 10 mm
Length
1,300 mm
Material
Brass
Mounting bracket
90°
Mounting type
Glass-Wall
Package contents
1 Set
Product series
Round 19
Shape
Round
Surface
Chrome-plated
Show all Show less

Scope of supply

1 Piece
Reinforcement bar
1 Piece
Adjustable glass connector
1 Piece
Rigid wall connector
